Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Specifications >> Mechanical Specifications >> Differential Torque Data >> Rear Axle

Rear Axle

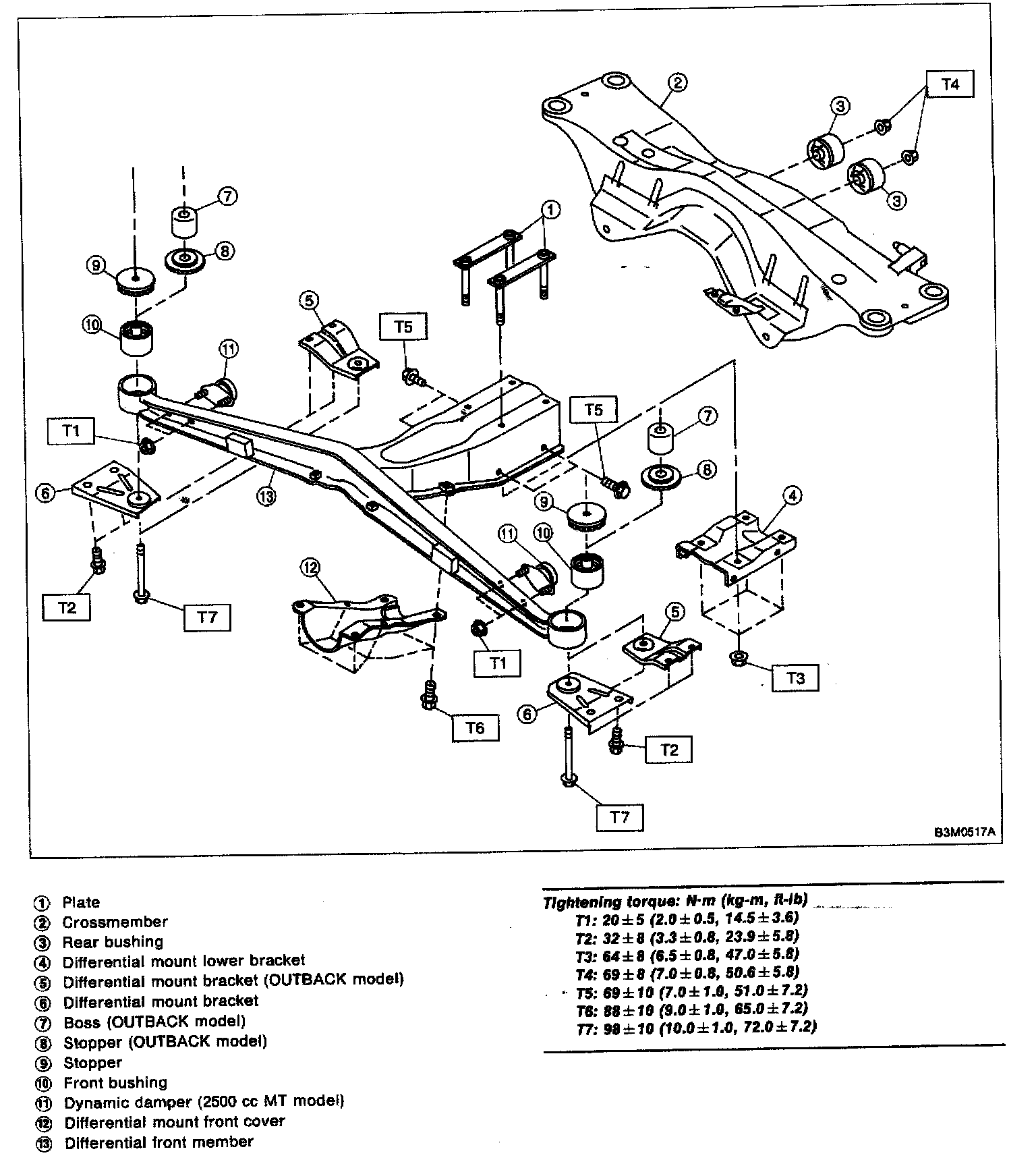

5-spd M/T, Rear Differential Mounting System:
