Clutch Slave Cylinder: Service and Repair

A: REMOVAL AND INSTALLATION

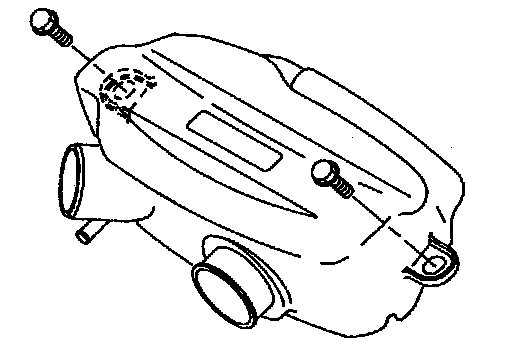

1. Remove air chamber.

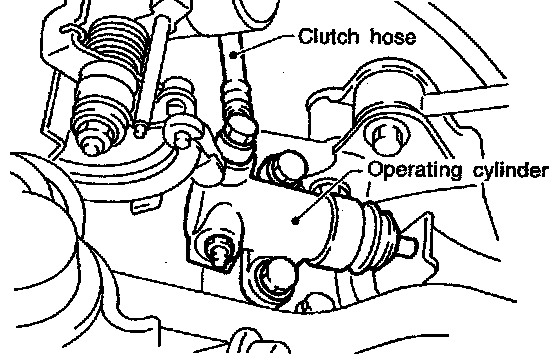

2. Remove clutch hose from operating cylinder.

CAUTION:
Cover hose joint to prevent clutch fluid from flowing out.





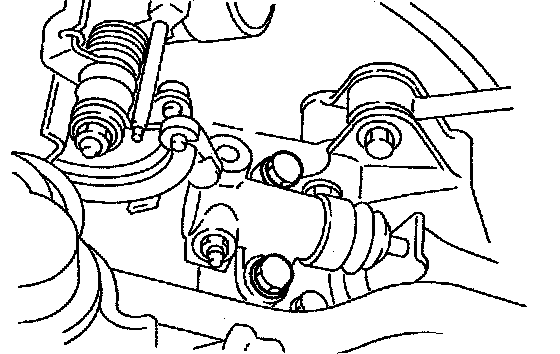

3. Remove operating cylinder from transmission.





4. Installation is in the reverse order of removal.

Tightening torque:

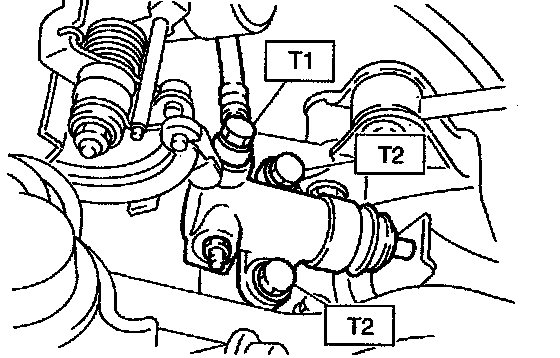

T1: 18 ± 3 Nm (1.8 ± 0.3 kg-m, 13.0 ± 2.2 ft. lbs.)
T2: 37 ± 3 Nm (3.8 ± 0.3 kg-m, 27.5 ± 2.2 ft. lbs.)

5. After bleeding air from operating cylinder, ensure that clutch operates properly.
