Torque Converter Clutch Case and Transmission Case

3. TORQUE CONVERTER CLUTCH CASE AND TRANSMISSION CASE
1. Apply proper amount of liquid gasket (THREE BOND Part No. 1215) to the entire torque converter clutch case mating surface.

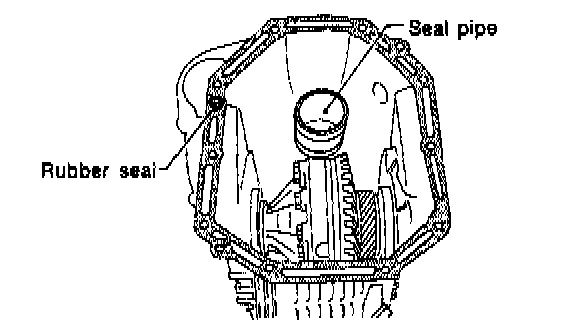

NOTE: Make sure that the rubber seal and seal pipe are fitted in position.

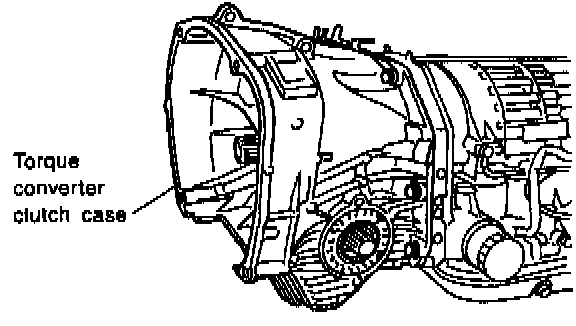

2. Install the torque converter clutch case assembly to the transmission case assembly, and secure with six bolts and four nuts.

CAUTION: When installing, be careful not to damage the torque converter clutch case bushing and oil seal.

Tightening torque: 41 ± 3 him (4.2 ± 0.3 kg-m, 30.4 ± 2.2 ft. lbs.)
