Fluid Passage Locations

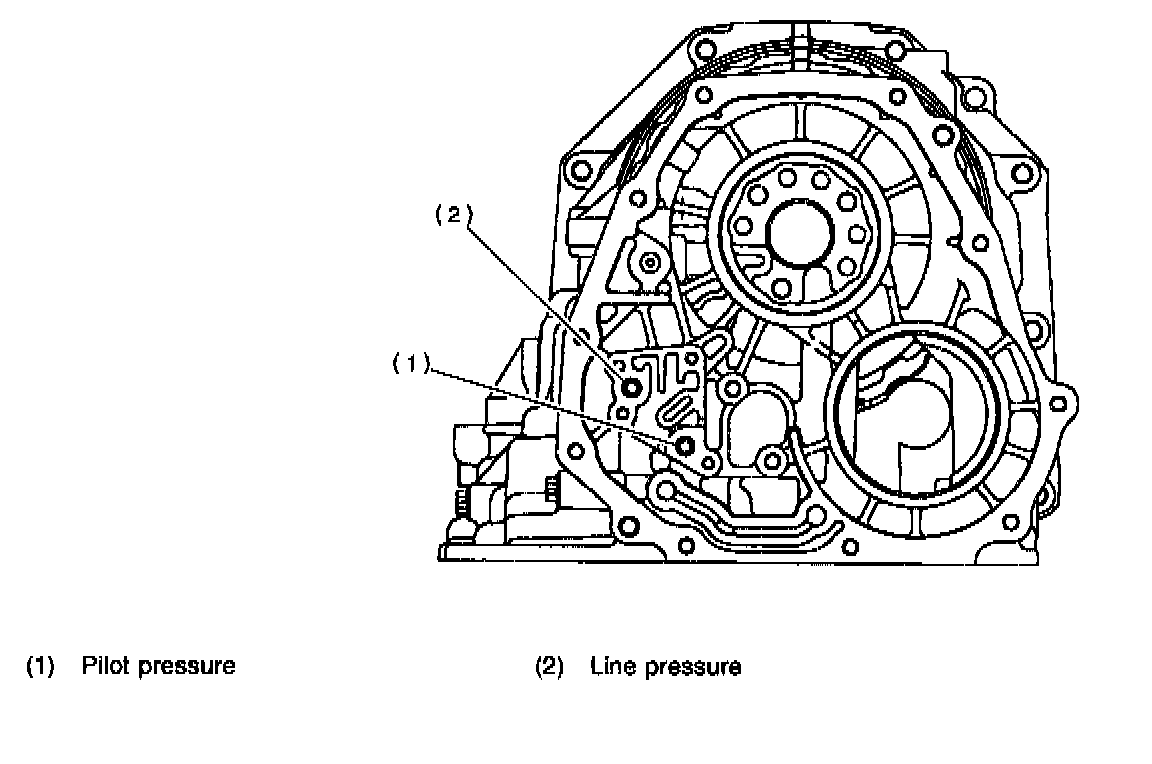

TRANSMISSION CASE (FRONT SIDE)

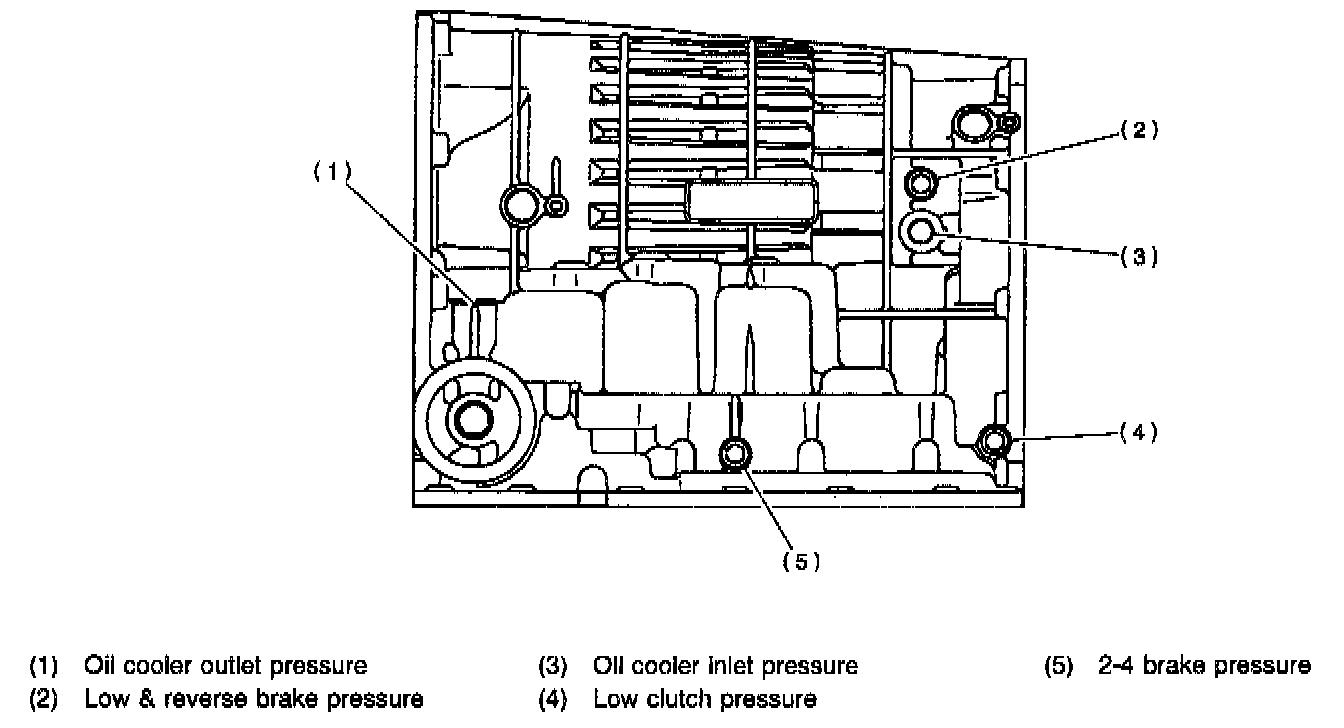

TRANSMISSION CASE (LH SIDE)

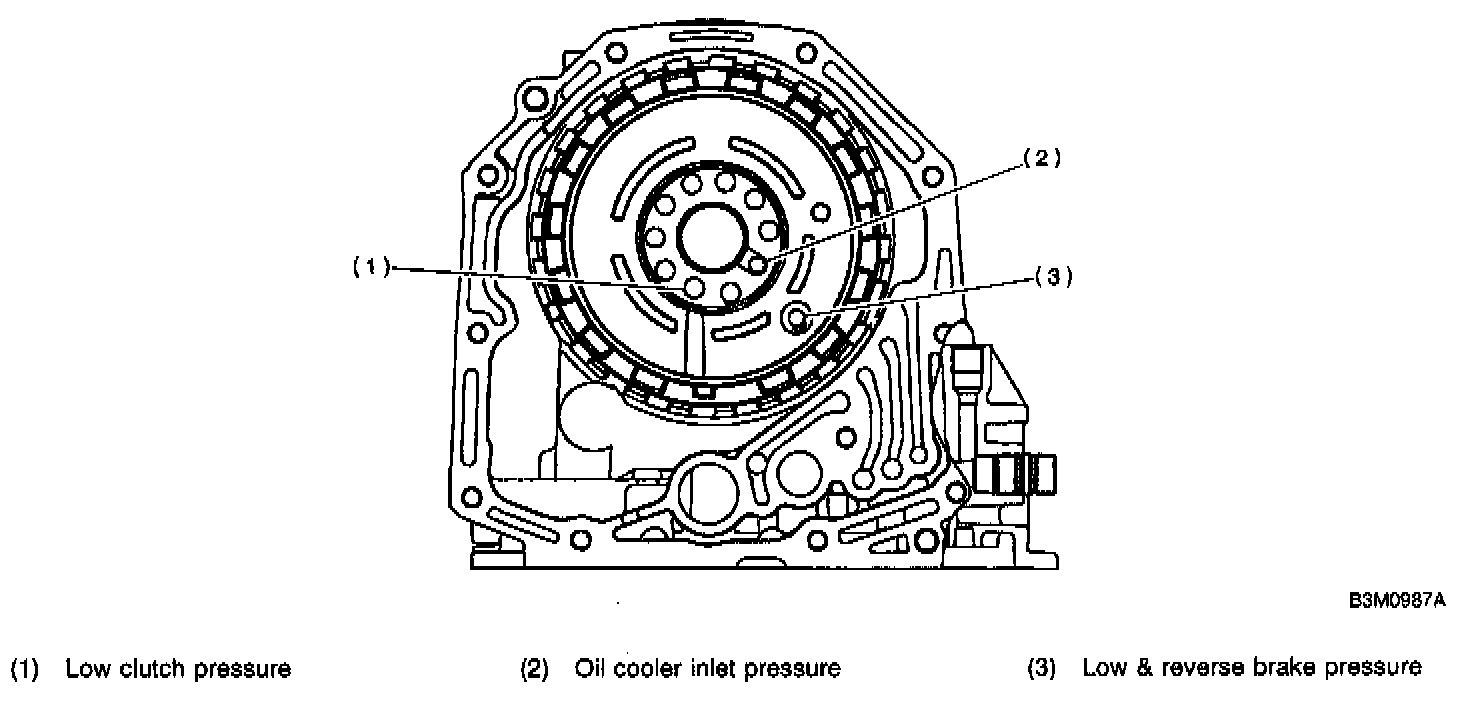

TRANSMISSION CASE (REAR SIDE)

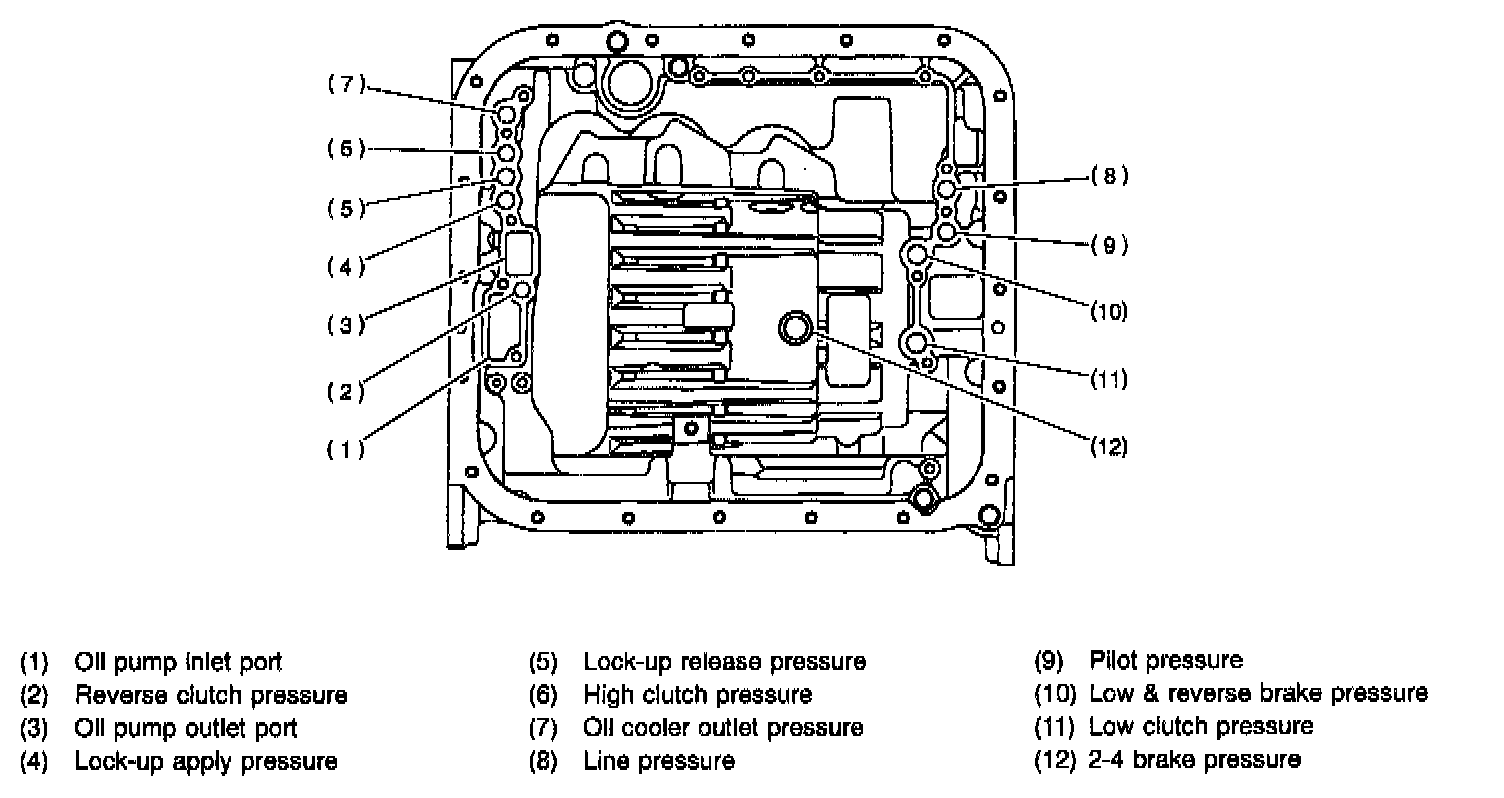

TRANSMISSION CASE (UNDERSIDE)
