One-Way Clutch

A: CONSTRUCTION

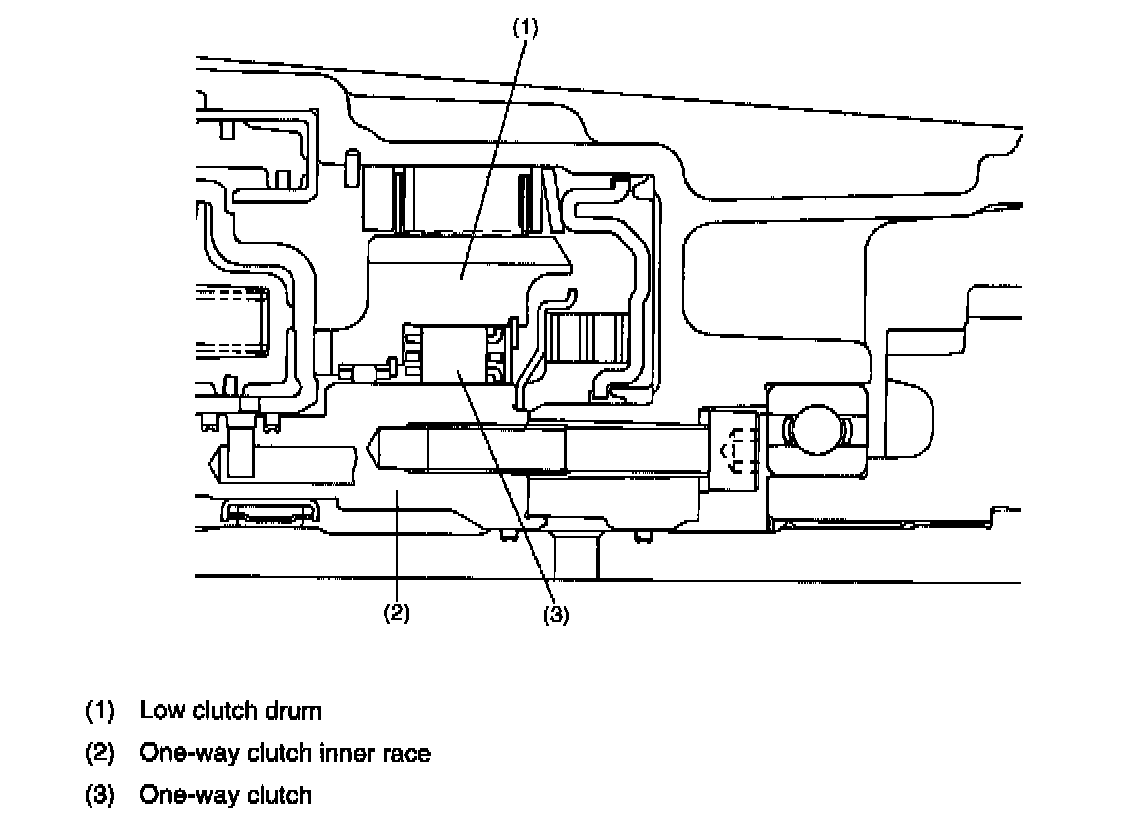

The One-Way Clutch (O.W.C.) is a sprag type. The O.W.C. is located between the low clutch drum and the one-way clutch inner race.

B: FUNCTION

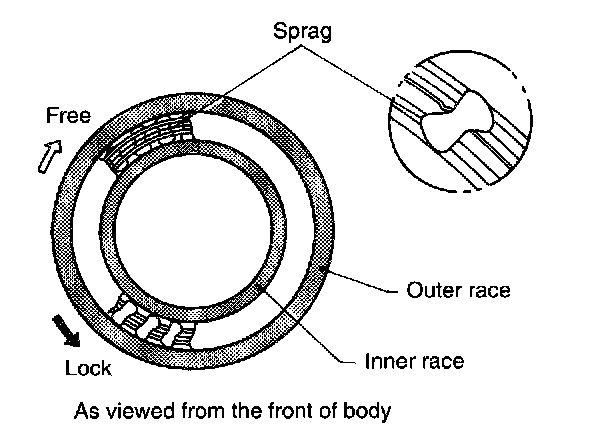

The O.W.C. is provided to prevent counterclockwise rotation (as viewed from the front) of the low clutch ASSY during 1st speed of the "D" range and 1st speed of the "3" range. Therefore, when shifting from 1st speed of the "D" range or "3" range to 2nd speed, the low clutch ASSY rotates clockwise. As a result, the O.W.C. now rotates freely ensuring smooth transition between 1st and 2nd speeds.
