Electrical Diagrams

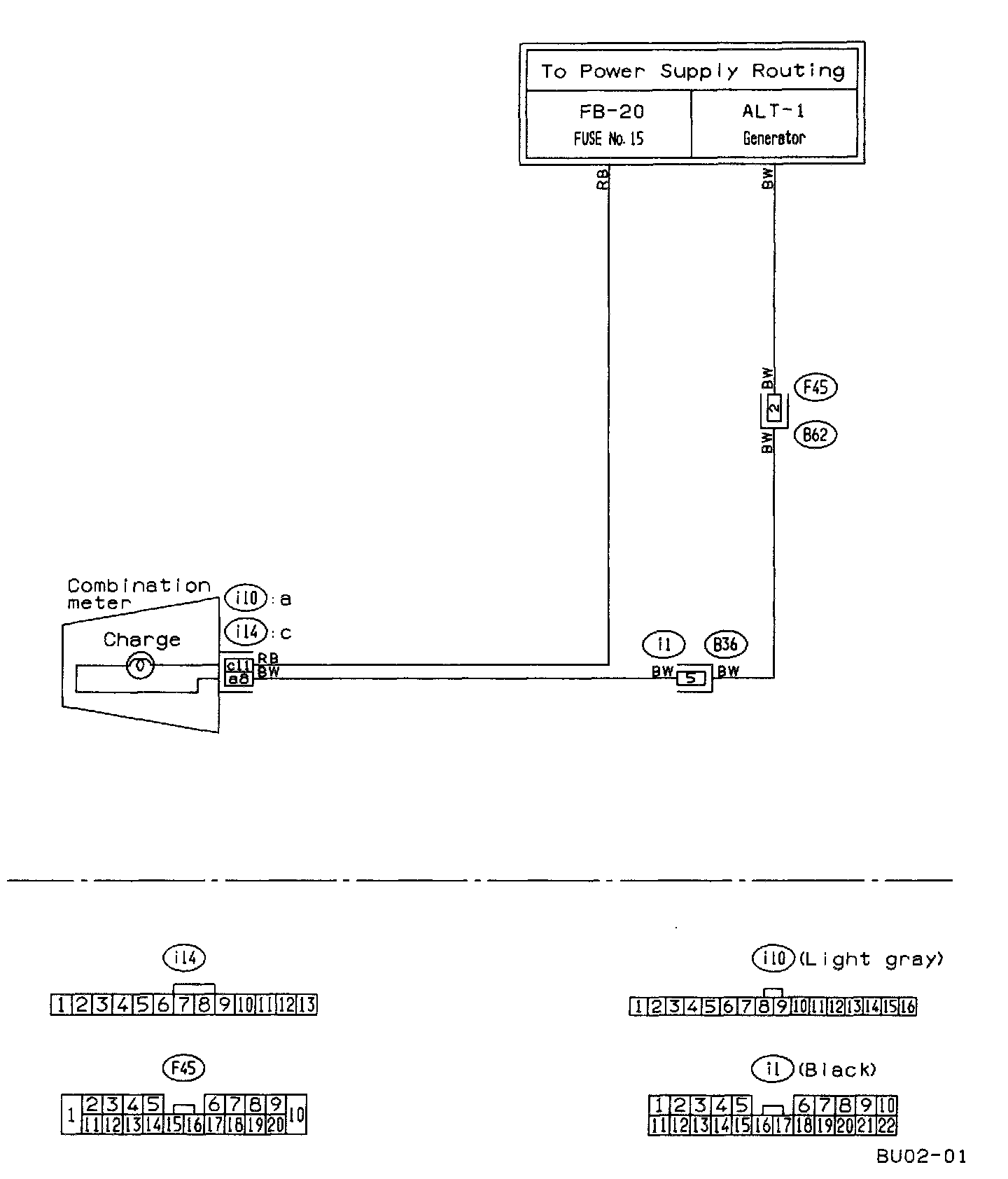

Charging System Circuit:



Power Supply Routing (LHD Model) - Part 1 Of 2:



Power Supply Routing (LHD Model)- Part 2 Of 2:
