Axle Shaft Assembly

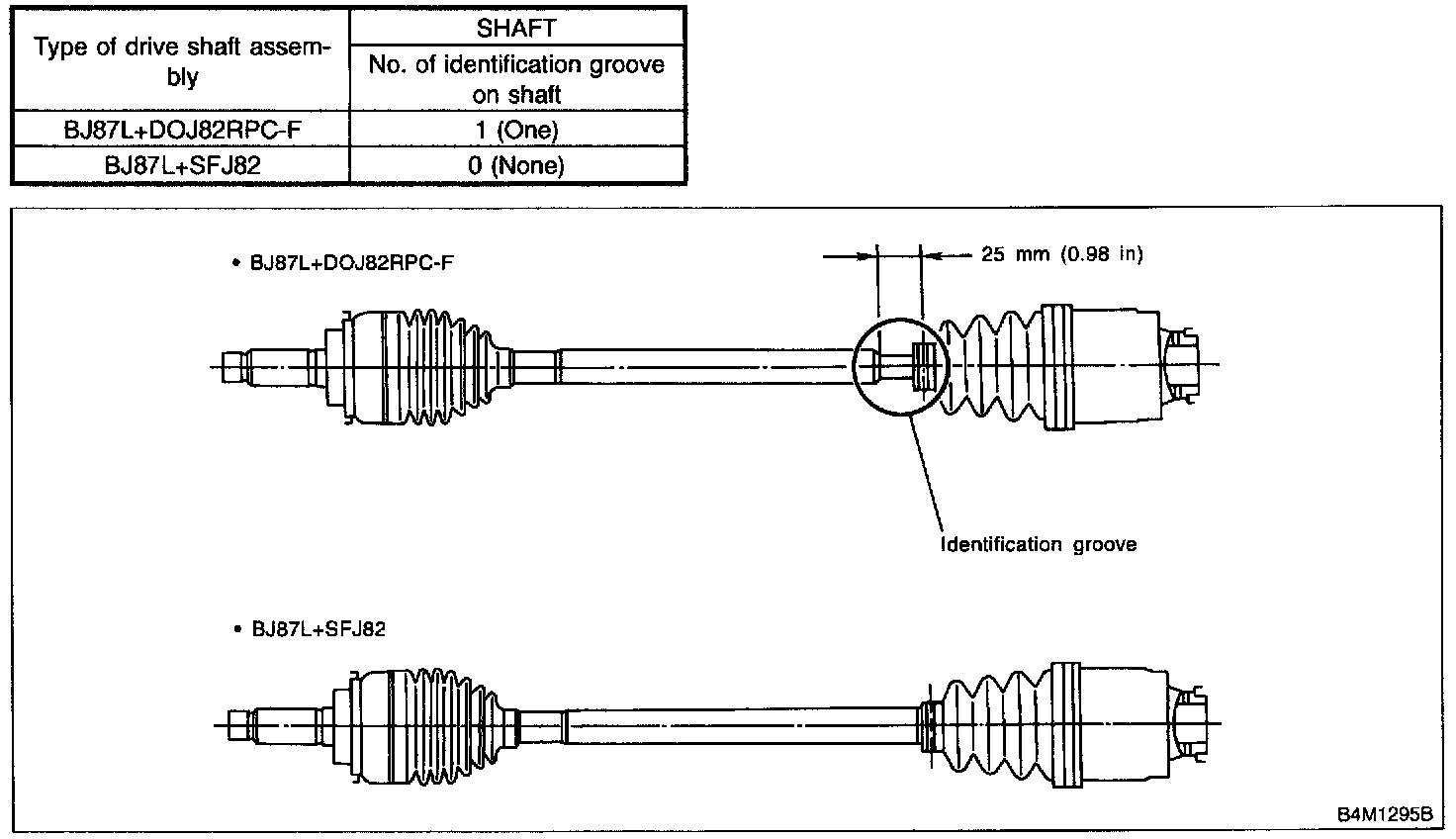

FRONT DRIVE SHAFT ASSEMBLY

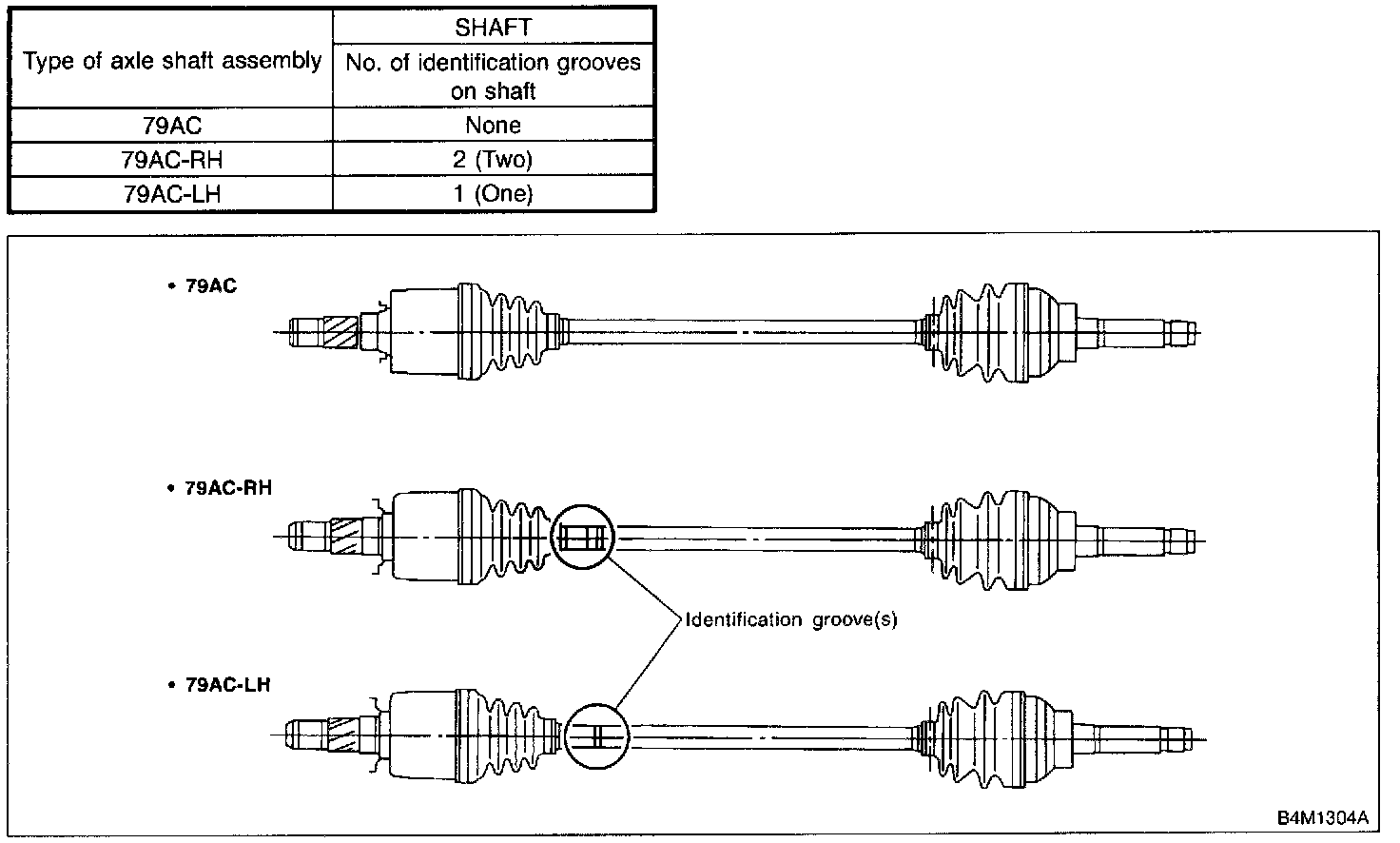

REAR DRIVE SHAFT ASSEMBLY (AWD MODEL)






APPLICATION
