Seat Temperature Switch: Service and Repair

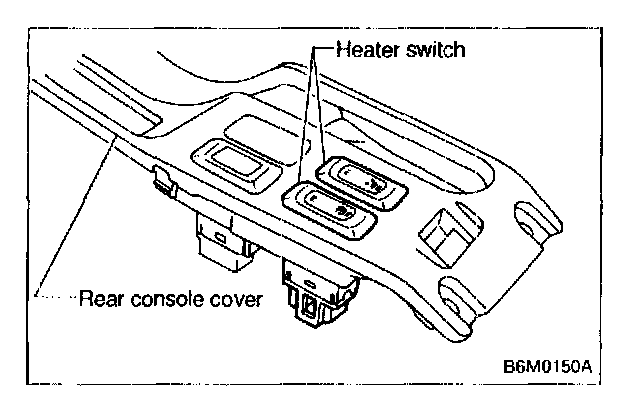

SEAT HEATER SWITCH
1.
Remove screws which secure rear console cover and then remove rear console cover.
2.
Remove seat heater switch from console cover.
