Main Harness

Main Harness

REMOVAL AND INSTALLATION




1. Turn ignition switch off.
2. Disconnect ground cable from battery and wait for at least 20 seconds before starting work.
3. Remove lower cover. Disconnect airbag connector (AB3) and (AB8) below steering column.

CAUTION: Do not reconnect airbag connector at steering column until main harness are securely re-installed.




4. Remove console box.
5. Disconnect connector from airbag control module.
6. Disconnect body harness connector (B31) from connector (AB1).

NOTE: The following procedures for removal are for "LHD model". The procedures for "RHD model" are symmetrically opposite.

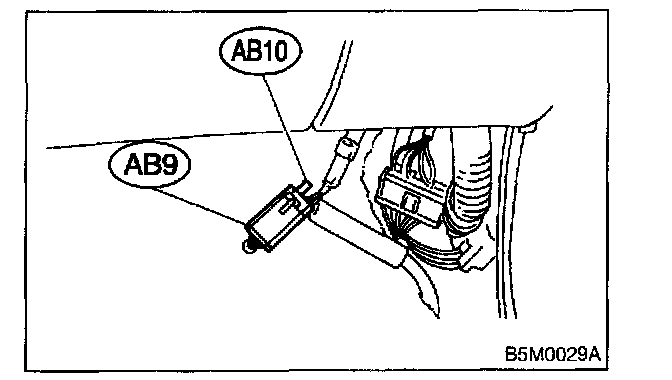

7. Remove front side sill cover and then disconnect airbag connector (AB9) and (AB10).
8. Roll up floor mat and side sill lower cover of both side and then remove main harness.

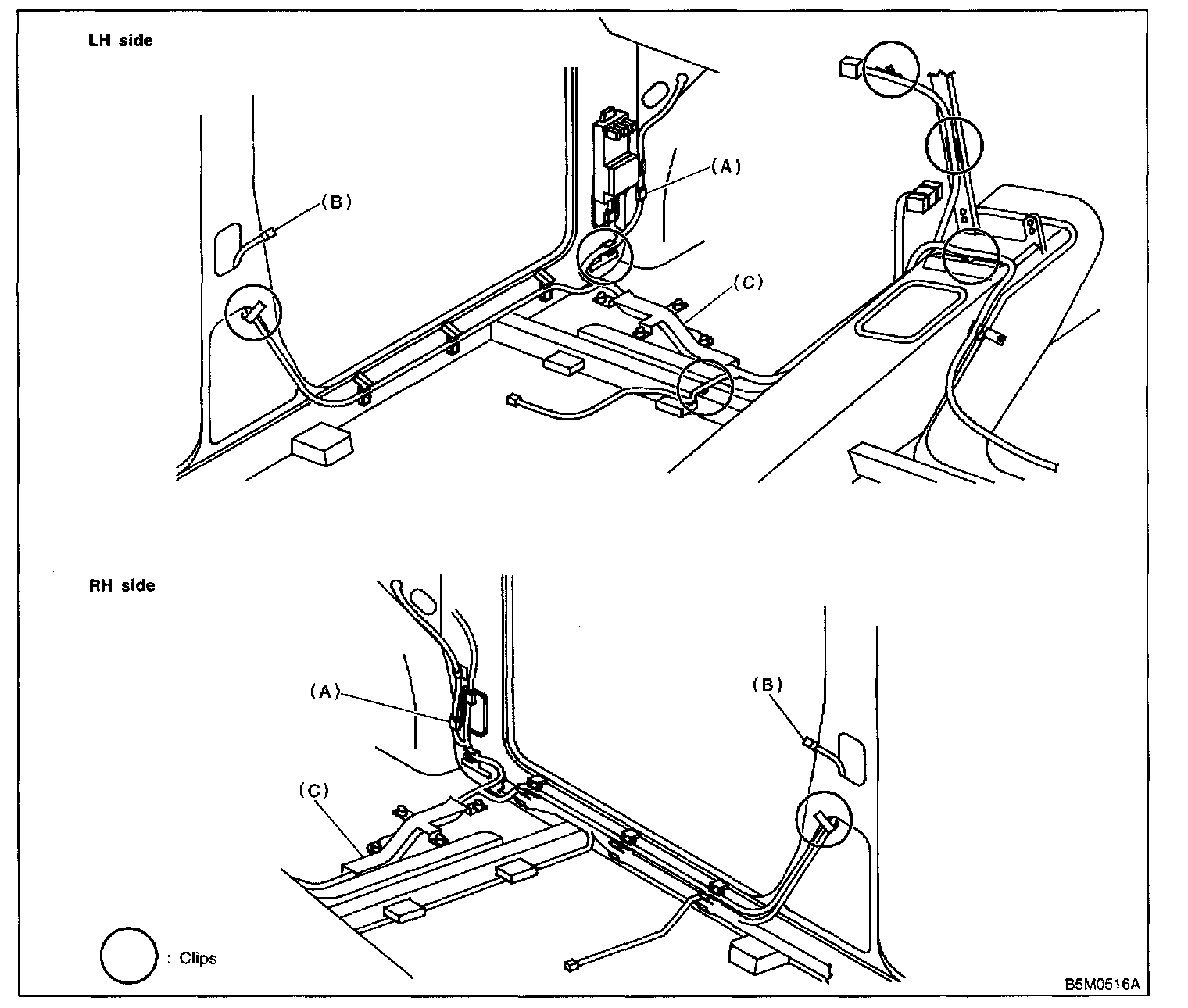

9. Disconnect front sub sensor connector (A), side airbag sensor connector (B) (side airbag equipped model) and then remove protector (C).
10. Detach clips and then remove airbag main harness.
11. Installation is in the reverse order of removal.
