Engine Control Module: Locations

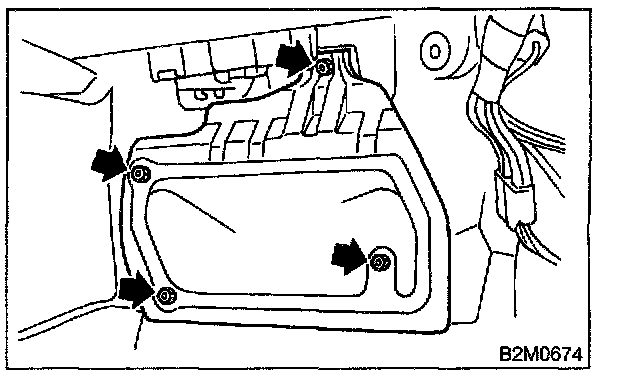

The ECM is located under the front edge of the right front carpet under the instrument panel.
