Pinout Values and Diagnostic Parameters

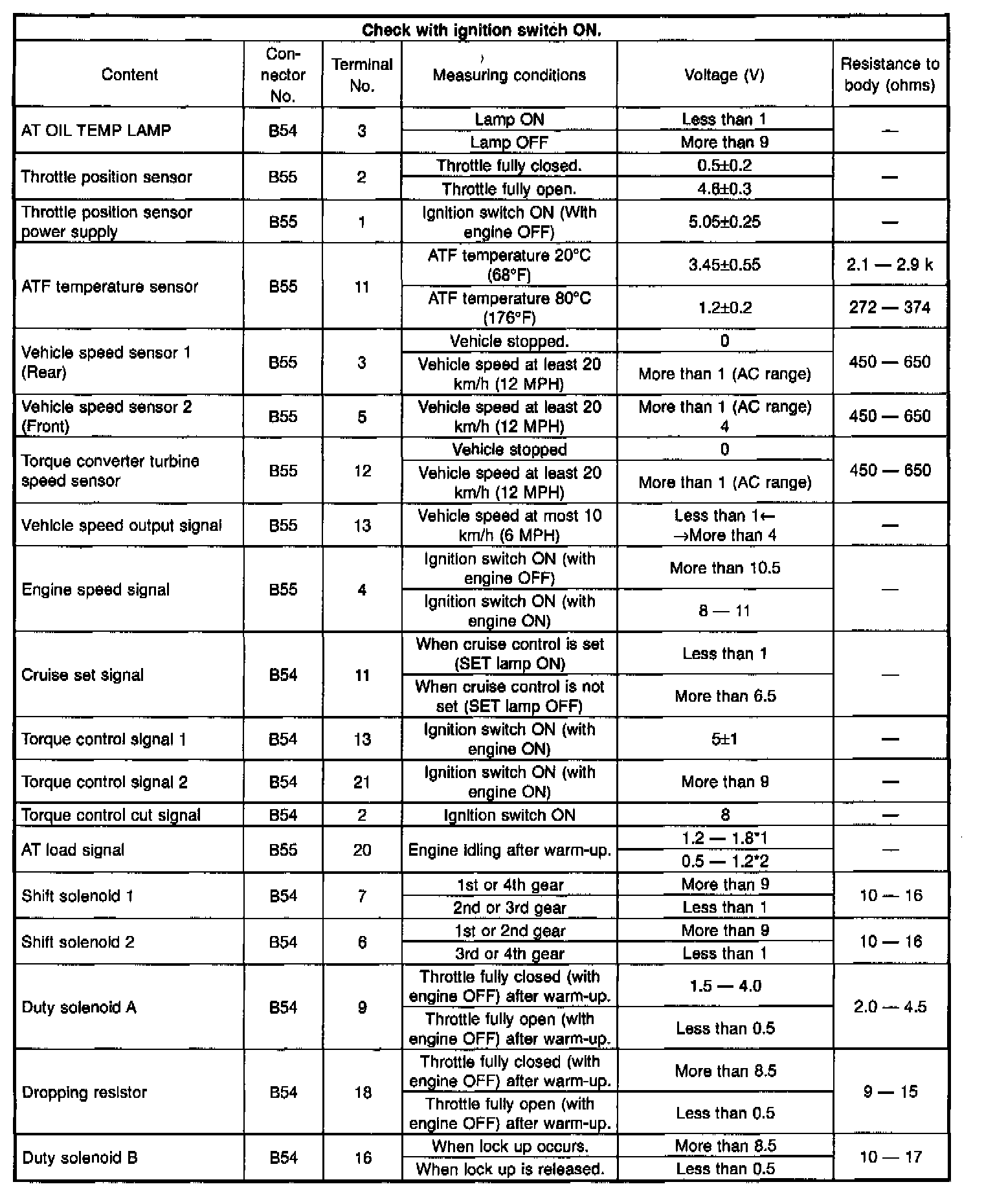

1 Of 3:

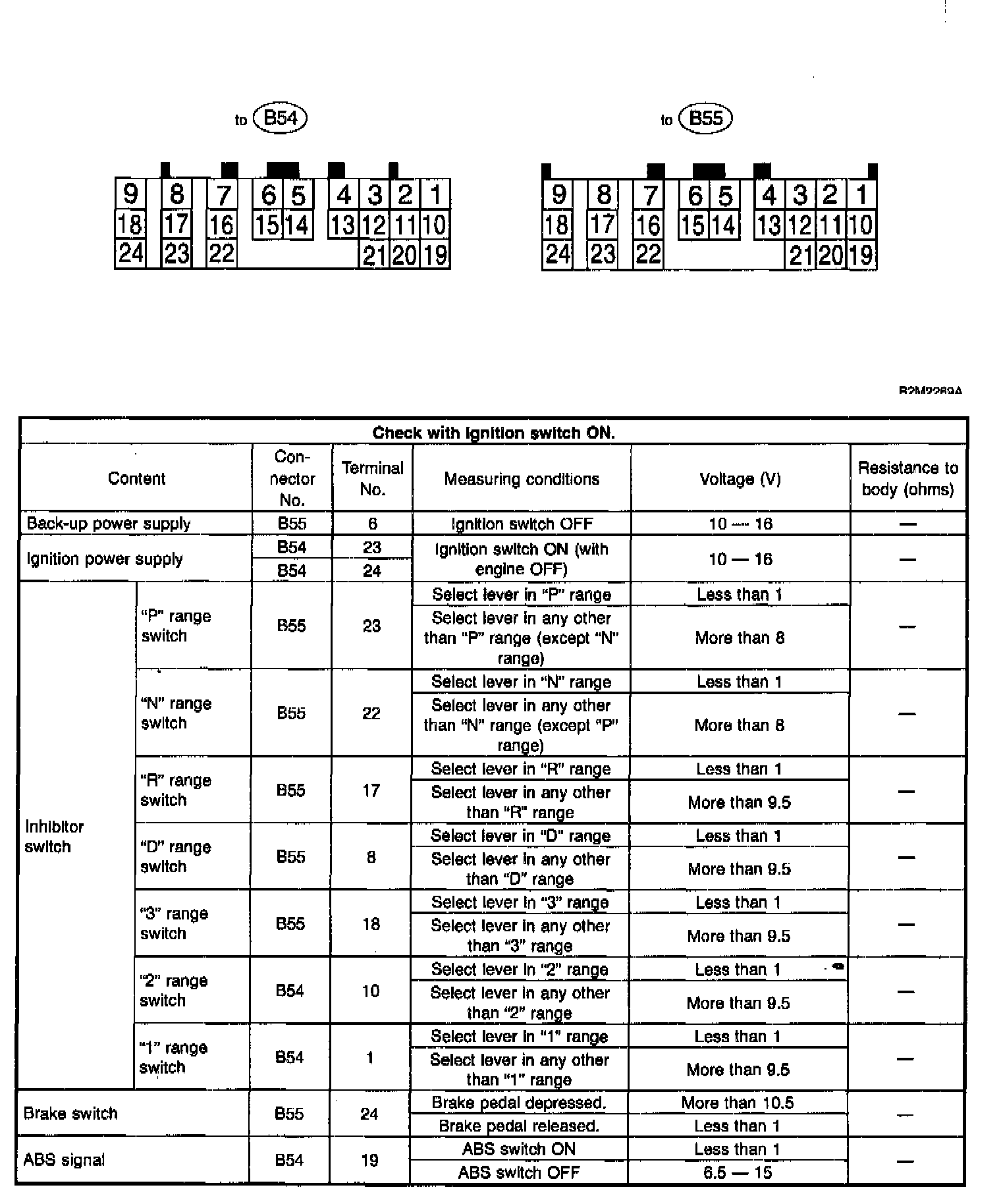

2 of 3:

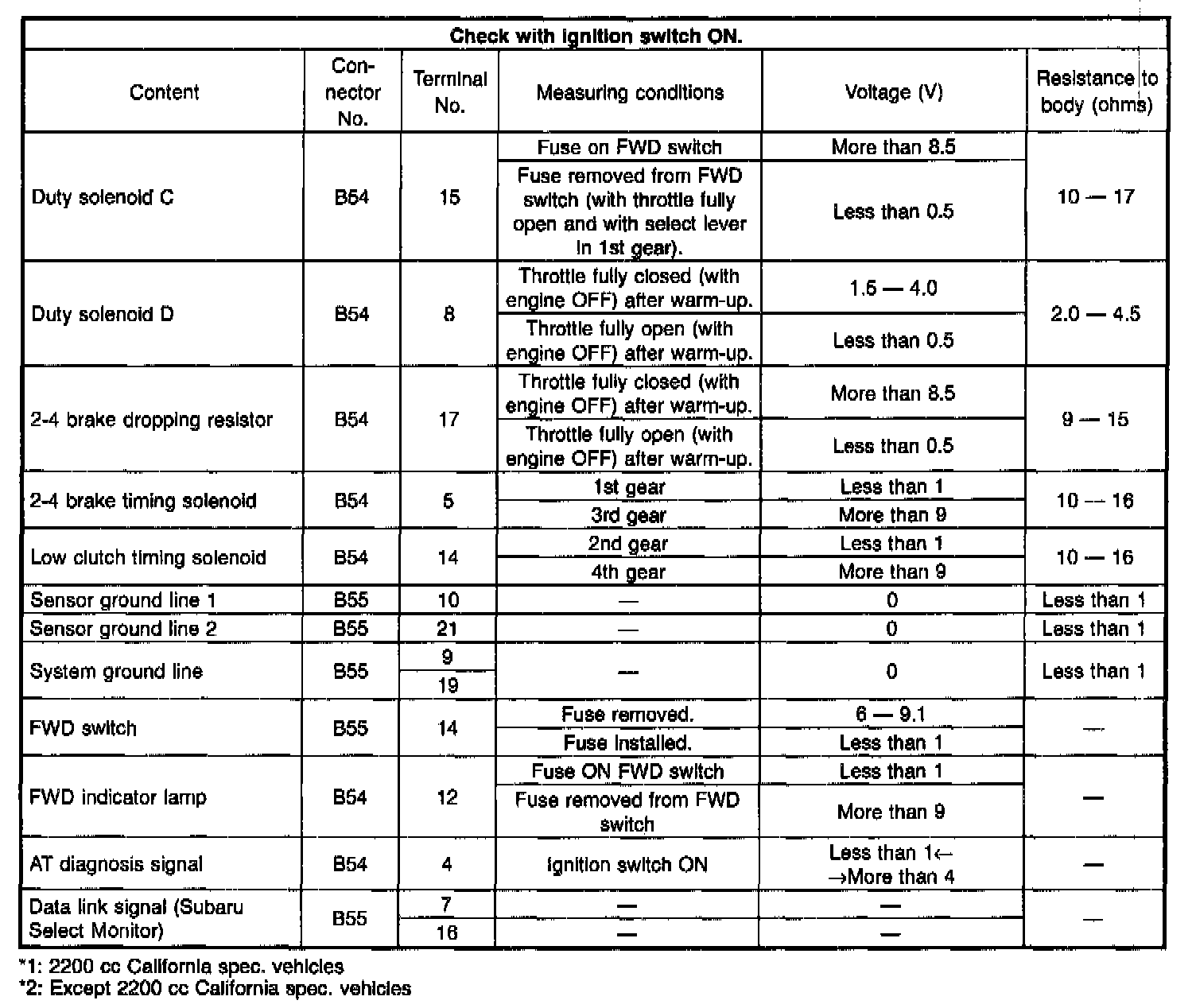

3 Of 3:





Transmission Control Module (TCM) I/0 Signal
