Control Module Power Supply and Ground Line
B: CONTROL MODULE POWER SUPPLY AND GROUND LINE

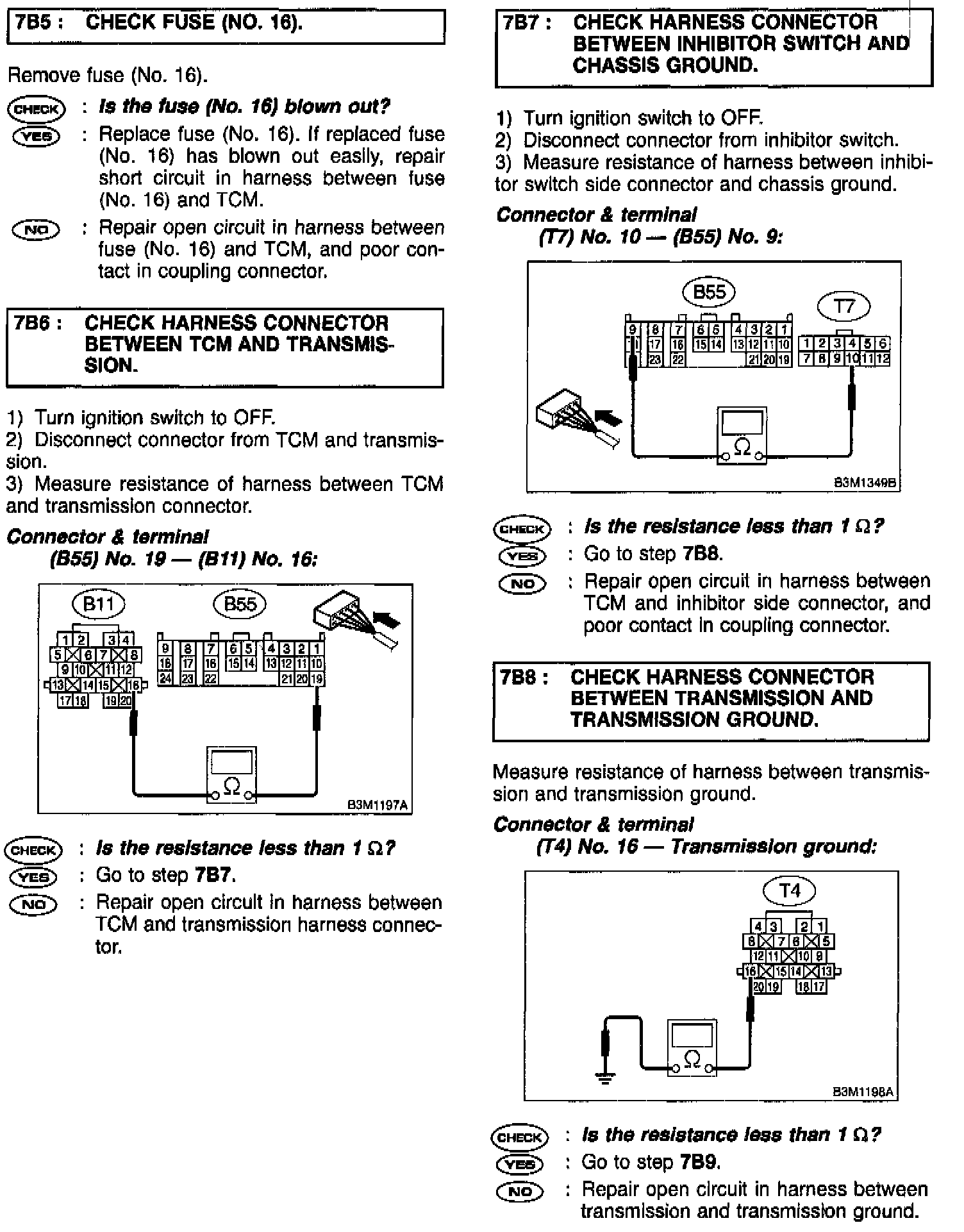

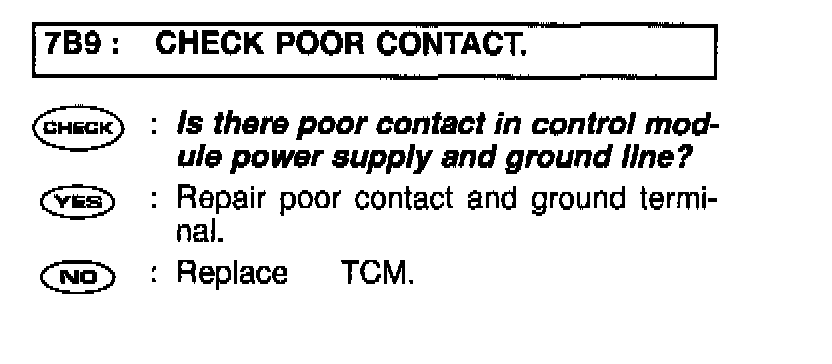

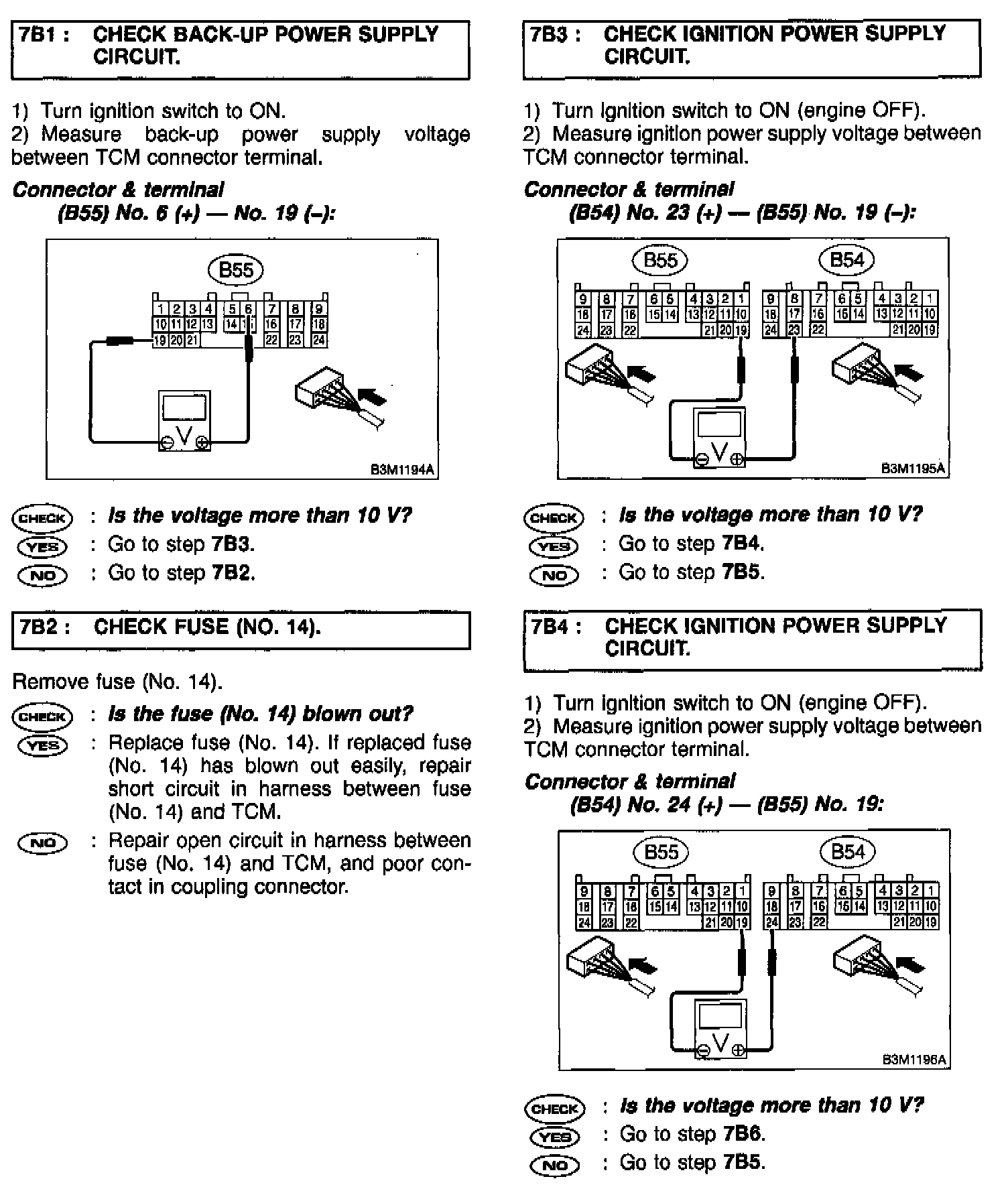

DIAGNOSIS:

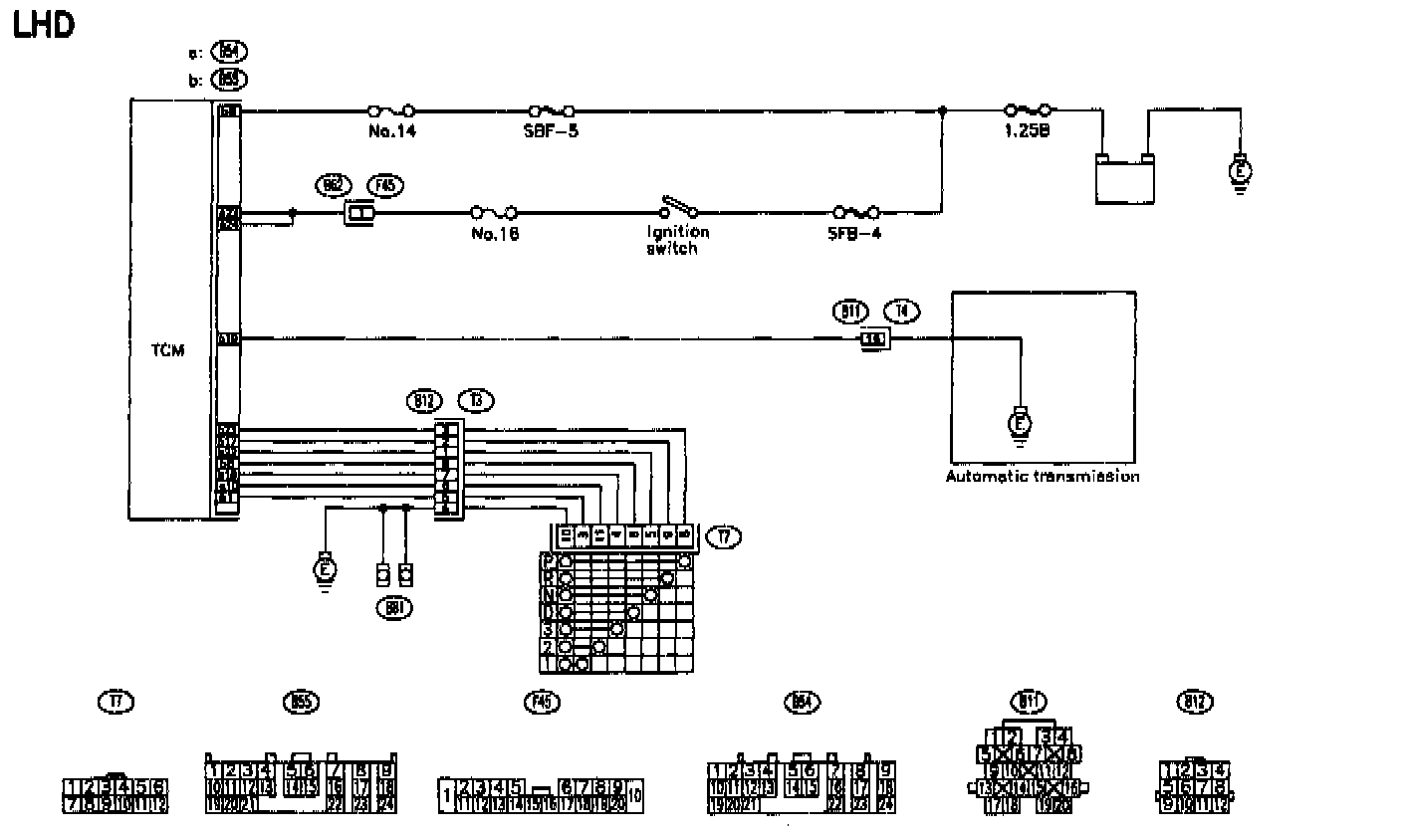

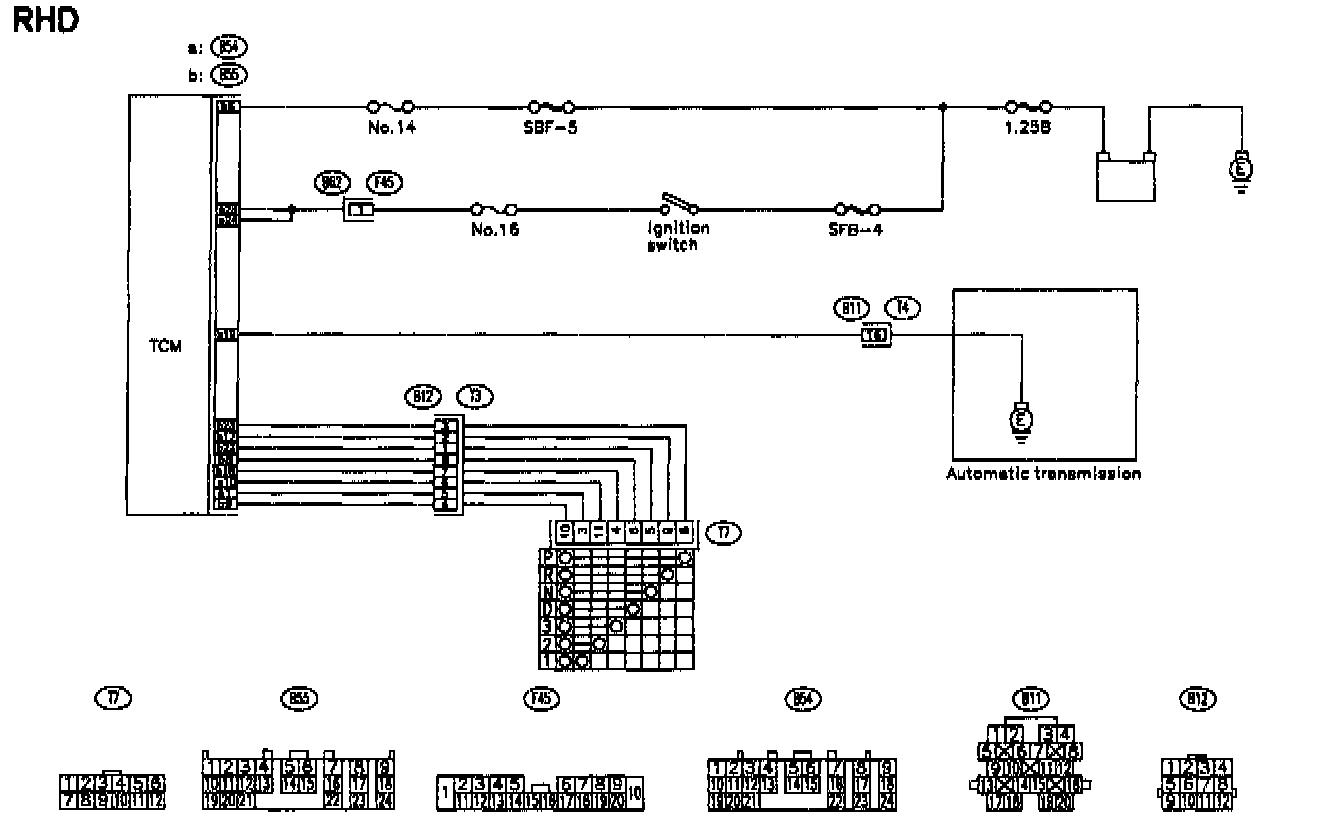

WIRING DIAGRAM:
