Diagnostic Chart With Select Monitor
>>

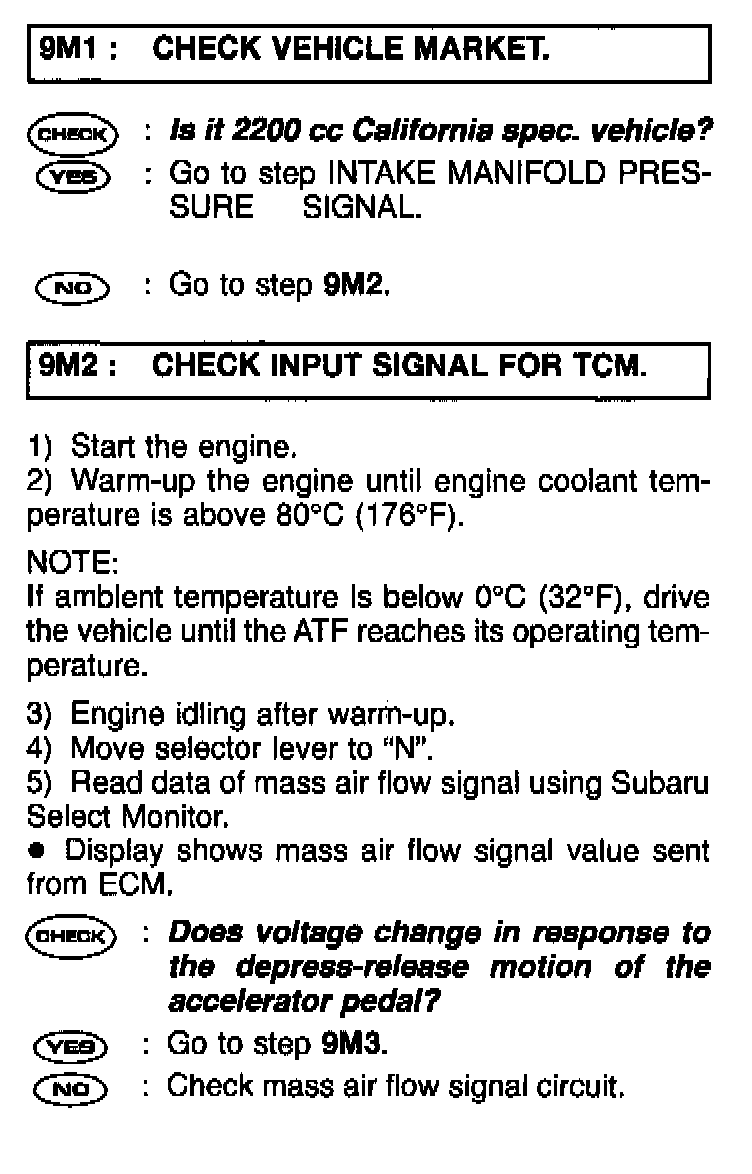

Check Mass Air Flow Signal. (Except 2.2L Cal Spec. Vehicles)
Check Mass Air Flow Signal. (Except 2.2L Cal Spec. Vehicles)
CHECK MASS AIR FLOW SIGNAL. (EXCEPT 2200 cc CALIFORNIA SPEC. VEHICLES)
