Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Chart With Select Monitor >> Check 2-4 Brake Pressure Duty

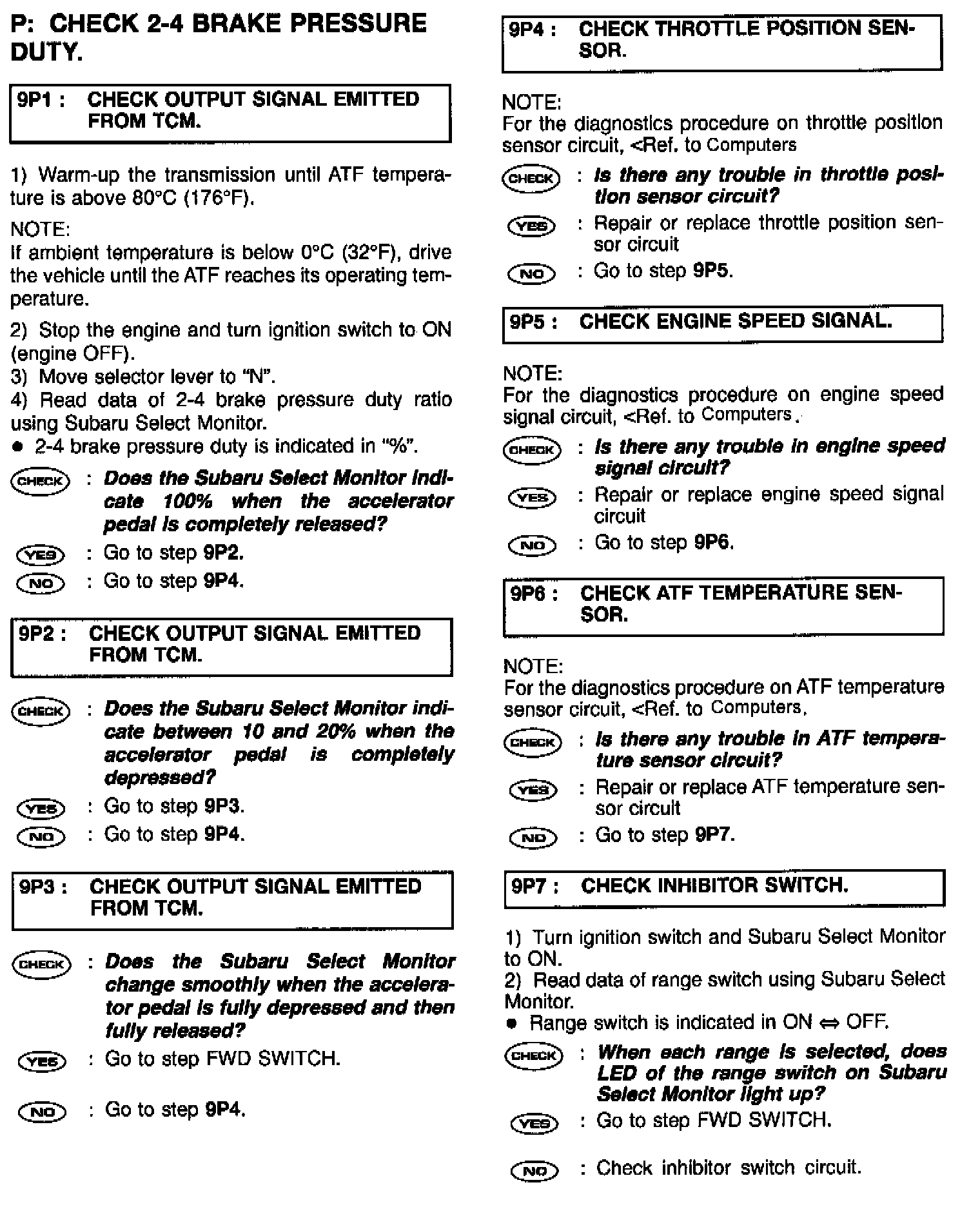

Check 2-4 Brake Pressure Duty
