Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Chart With Select Monitor
>>
Check "R" Range Switch
Check "R" Range Switch

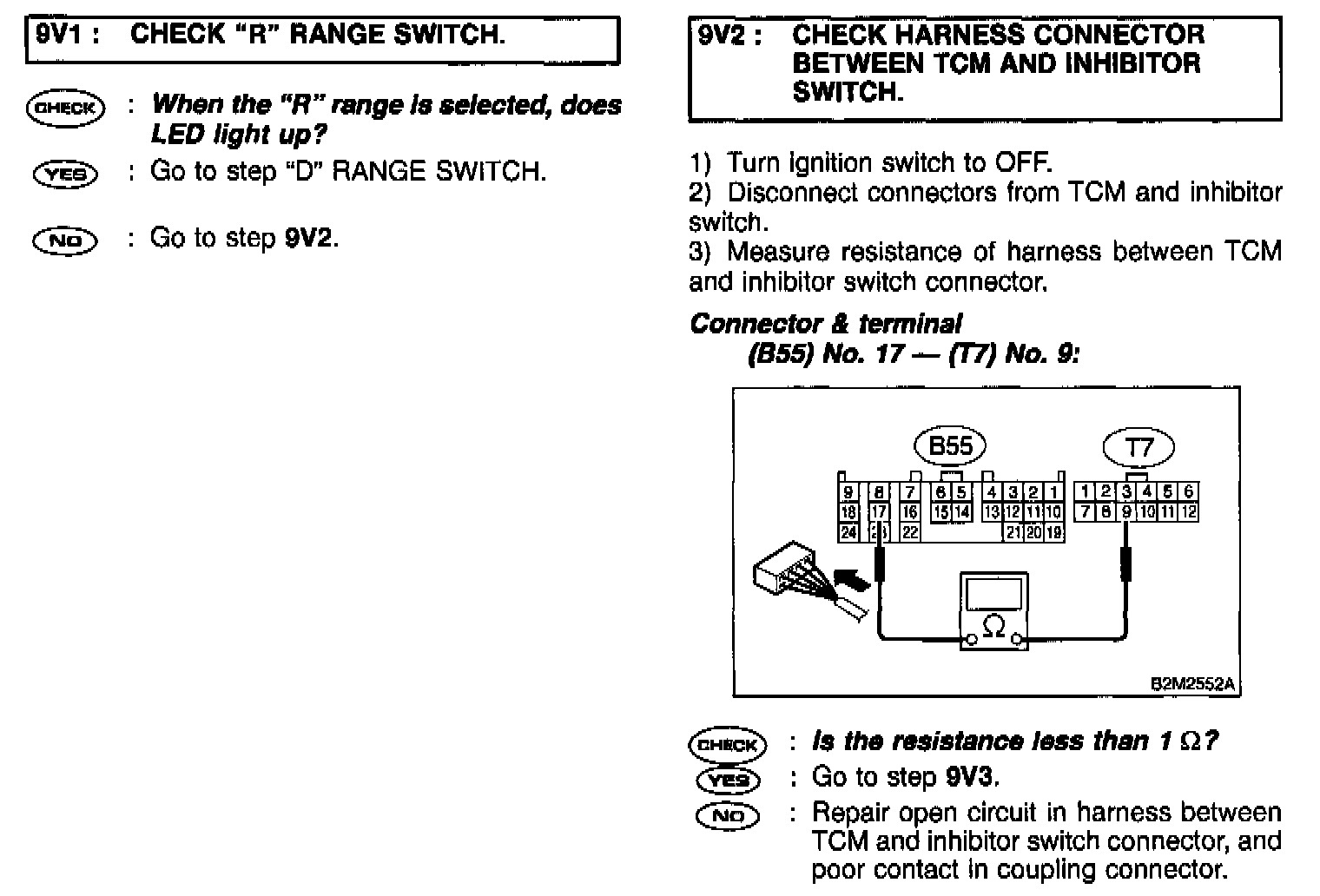

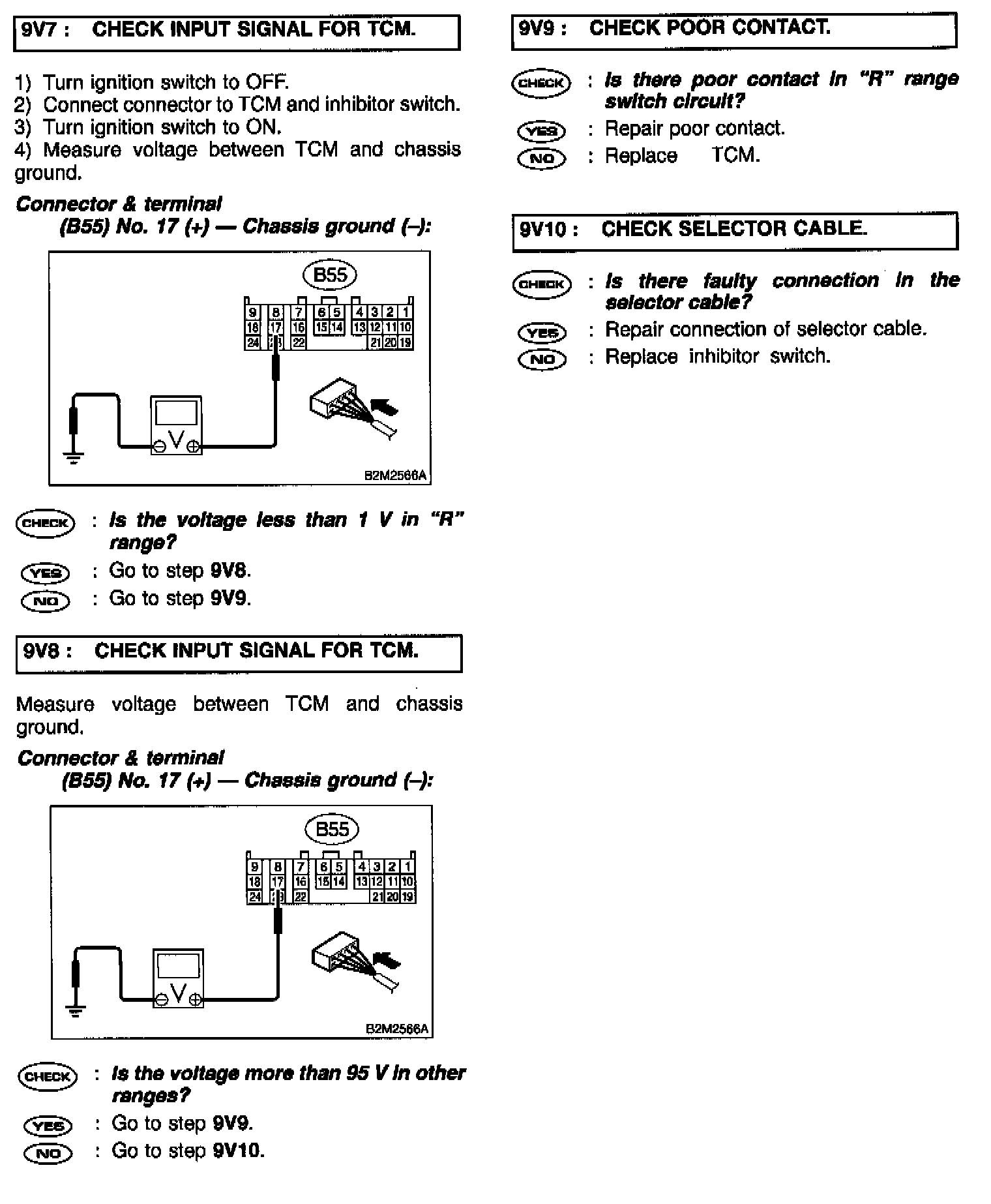

CHECK "R" RANGE SWITCH.
DIAGNOSIS:
Input signal circuit of "R" range is open or shorted.

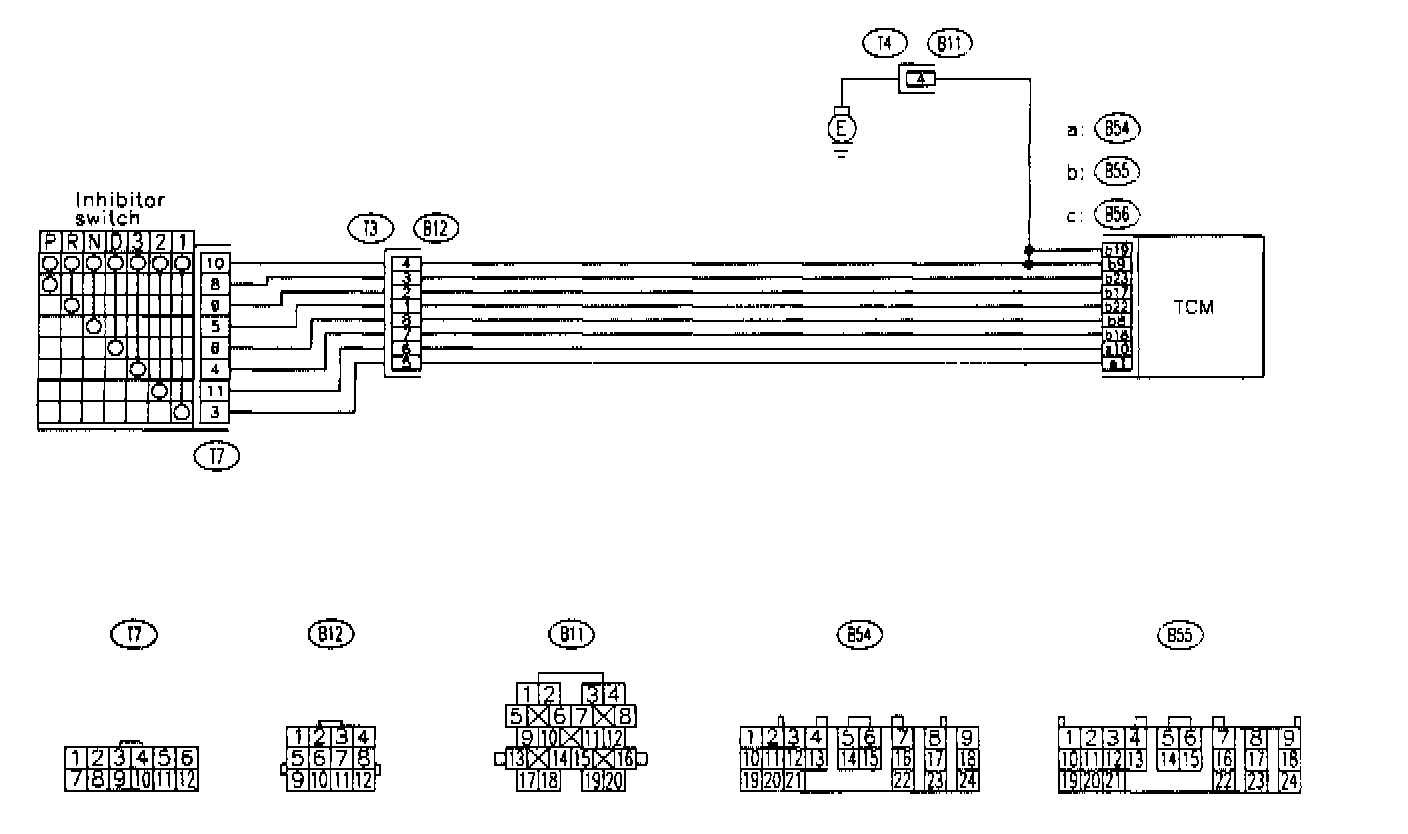

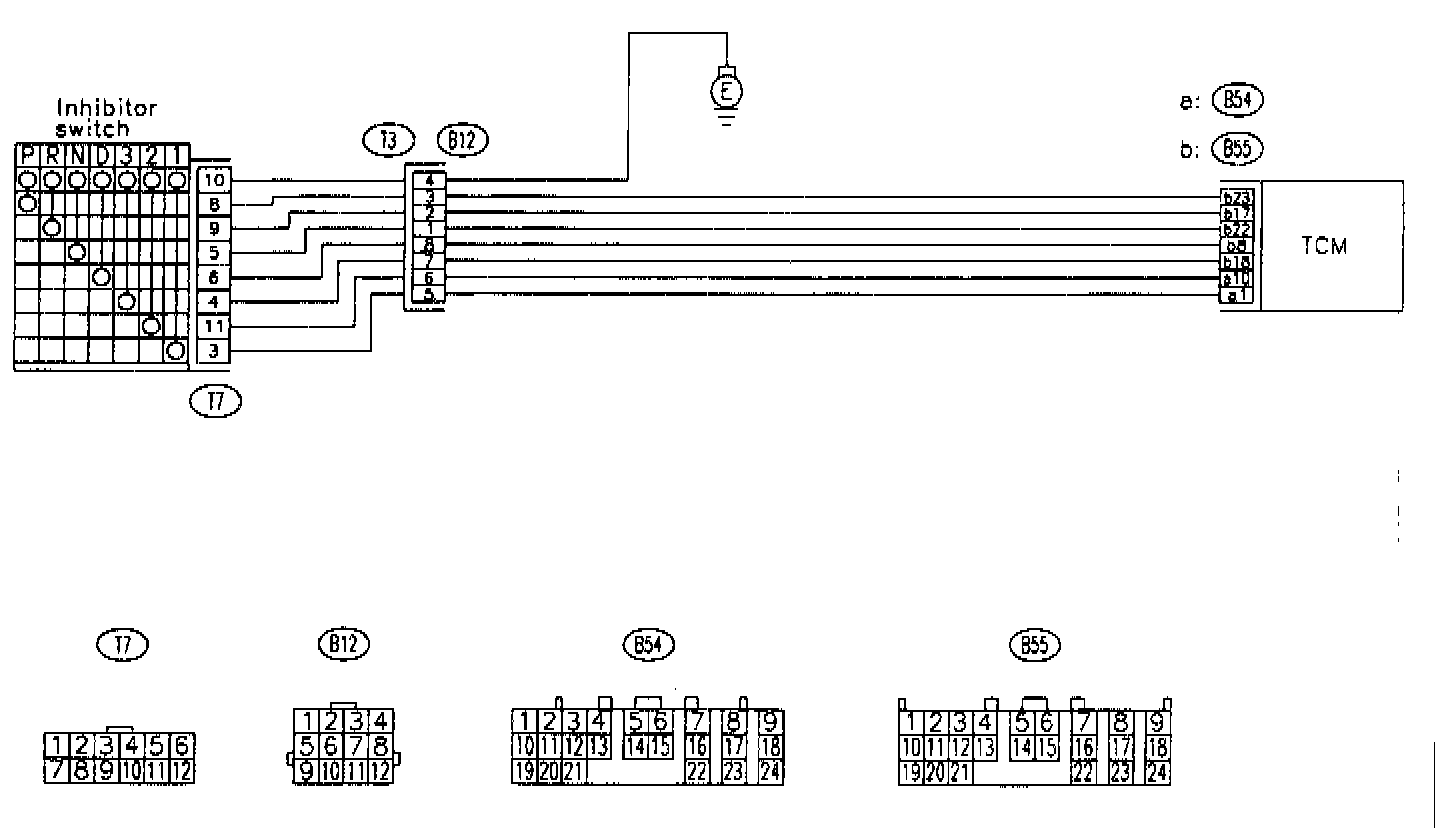

WIRING DIAGRAM:
