Throttle Cable/Linkage: Adjustments

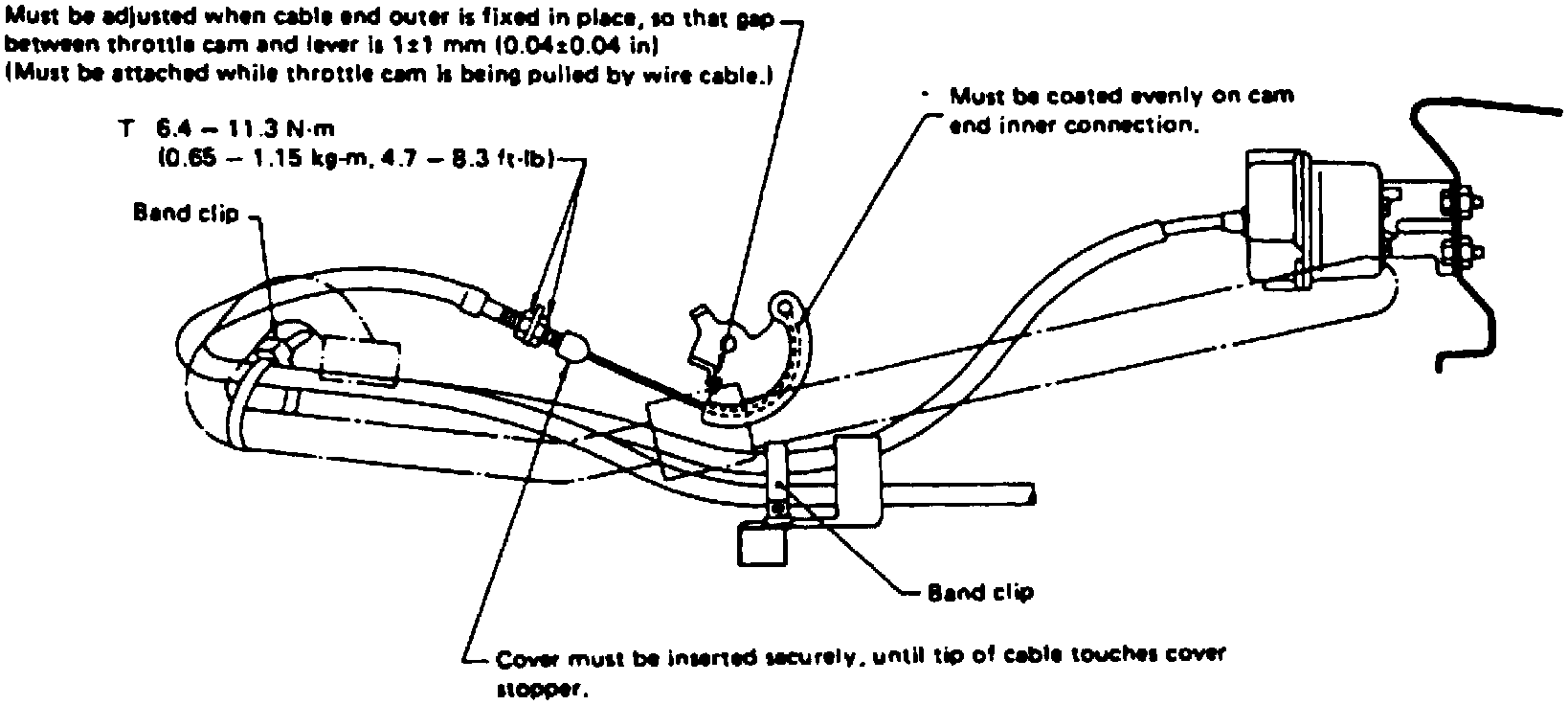

Fig. 9 Cruise Control Cable Adjustment:




Refer to Fig. 9, for control cable adjustment.
