Removal and Installation

2200 CC:

2500 CC:

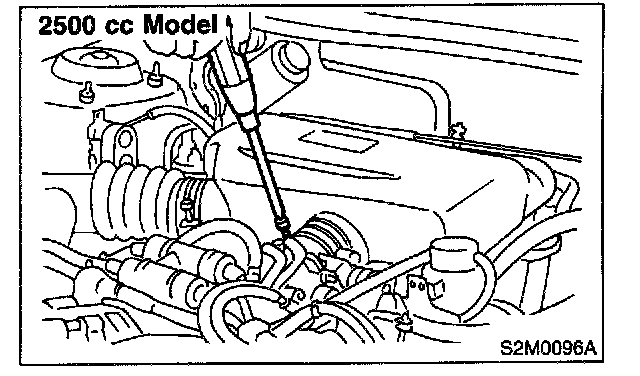

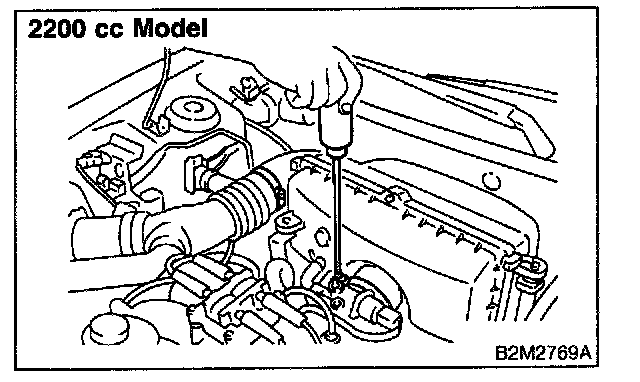

1. Loosen clamps which connect air intake chamber to throttle body and air intake duct.
2. Disconnect air hoses from air intake chamber.

2200 CC:

2500 CC:

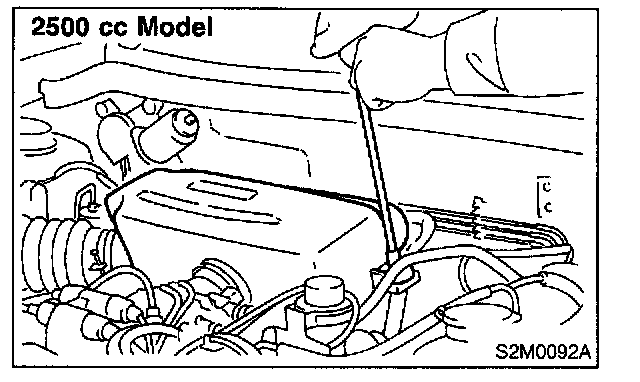

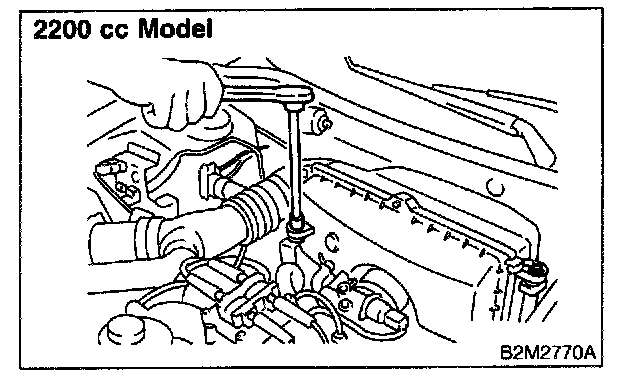

3. Remove bolts which secure air intake chamber to stays.
4. Remove air intake chamber.
5. Installation is in the reverse order of removal.

Tightening torque:
4.9 ± 0.5 Nm (0.5 ± 0.05 kg.m, 3.6 ± 0.4 ft.lb)
