Rollover Valve: Testing and Inspection

Roll-Over Valve:

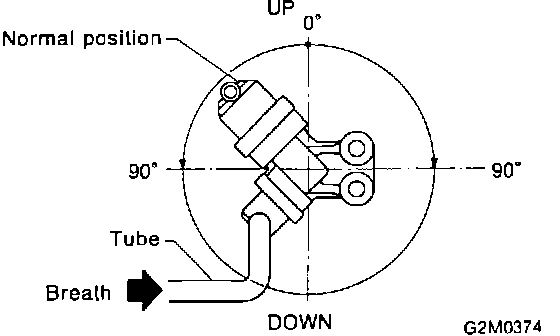

1. Connect hose to rollover valve as shown.
2. While blowing through the hose, tilt valve at least 90° left and right from normal position. Make sure air flows through valve.
3. Air should not flow through valve when it is tilted further than 90°.
