Rollover Valve: Description and Operation

Rollover Valve:

PURPOSE/OPERATION

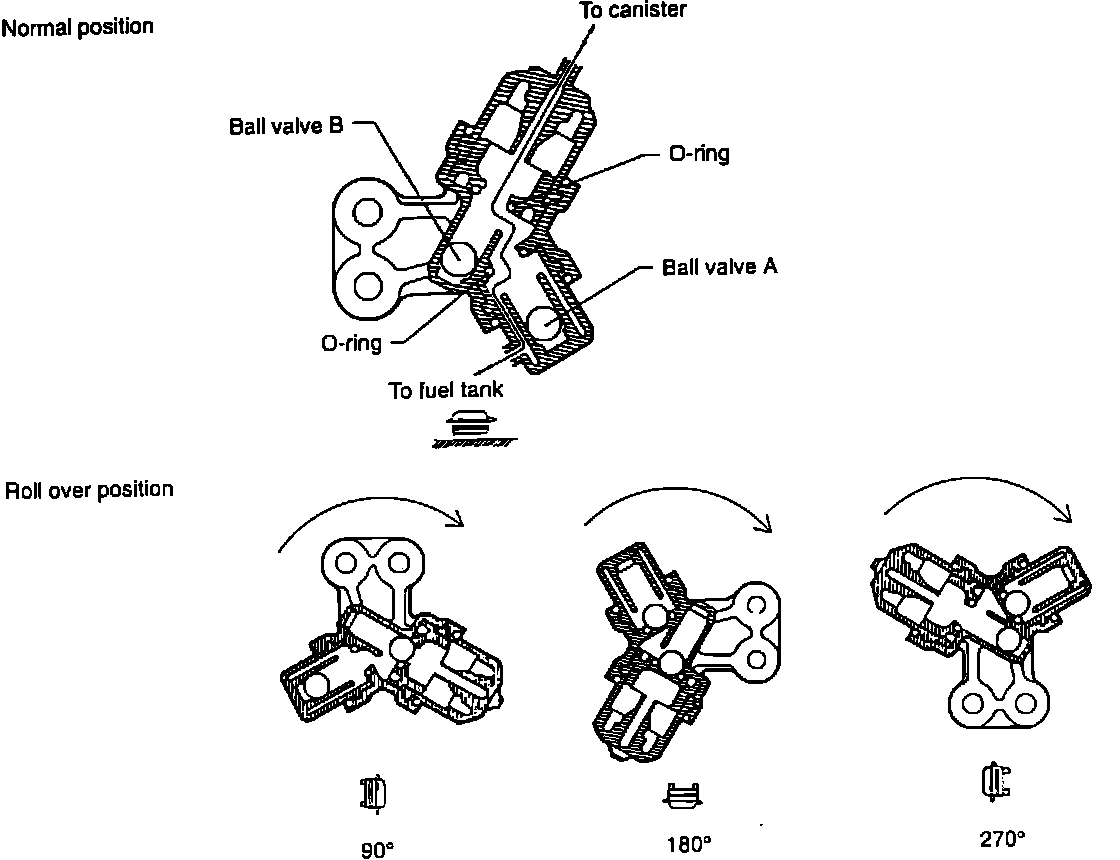

Prevents fuel from flowing into the canister in the event of vehicle rollover. The valve is constructed of passages and check balls. When the vehicle valve is tilted, the check balls cover the passages, preventing fuel flow through the valve.
