Removal and Installation
REMOVAL1. Release fuel pressure.

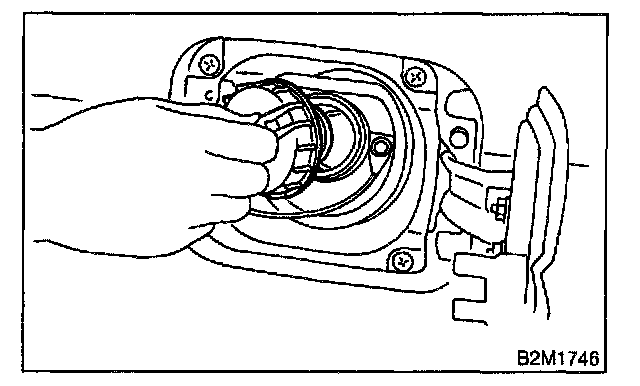

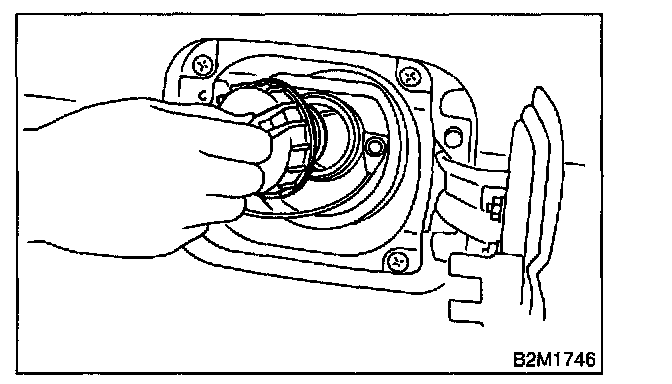

2. Open fuel flap lid, and remove fuel filler cap.

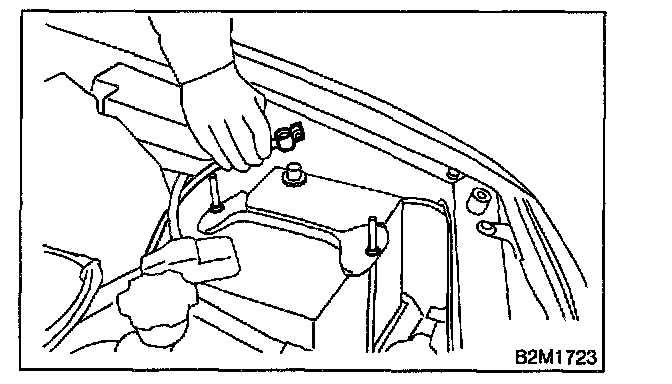

3. Disconnect battery ground cable.

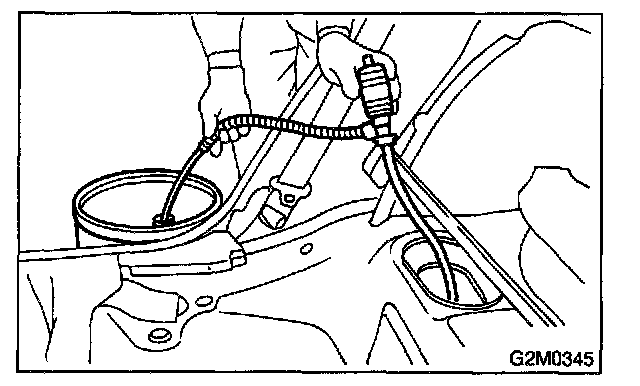

4. Drain fuel from fuel tank.

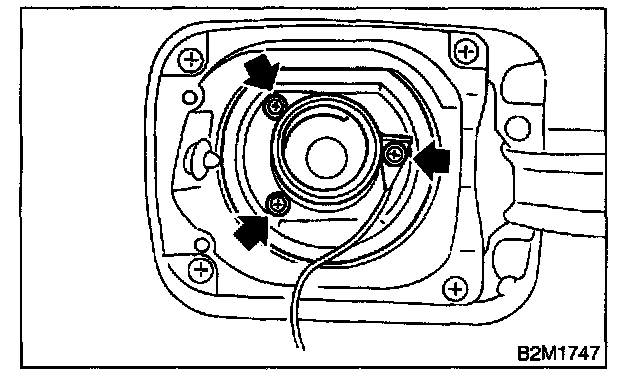

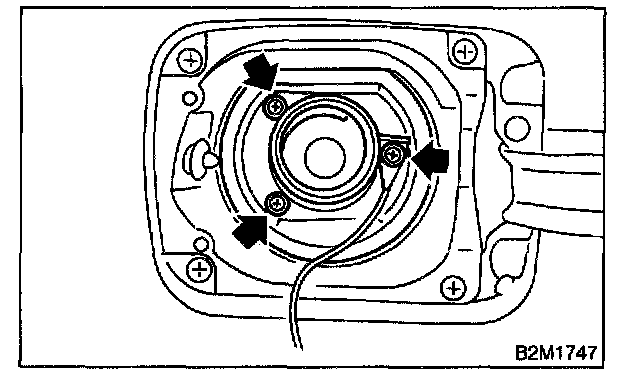

5. Remove screws which install fuel filler pipe on filler lid open.
6. Remove wheel nuts of rear right side.
7. Lift-up the vehicle.

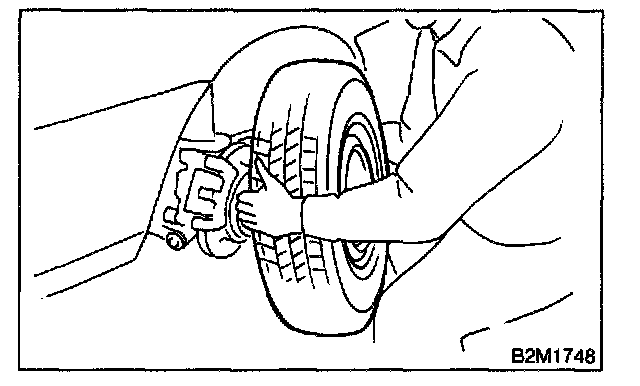

8. Remove rear right side wheel.

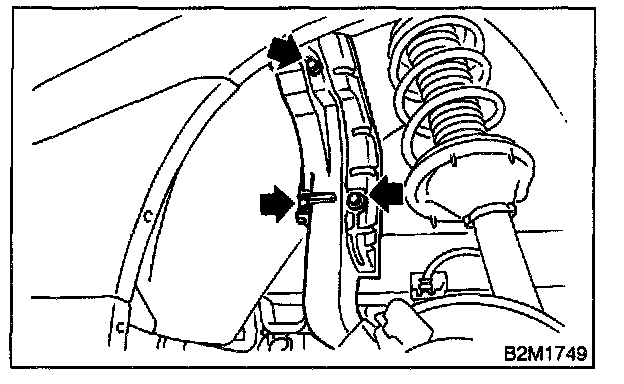

9. Remove bolts which install protector cover on body.

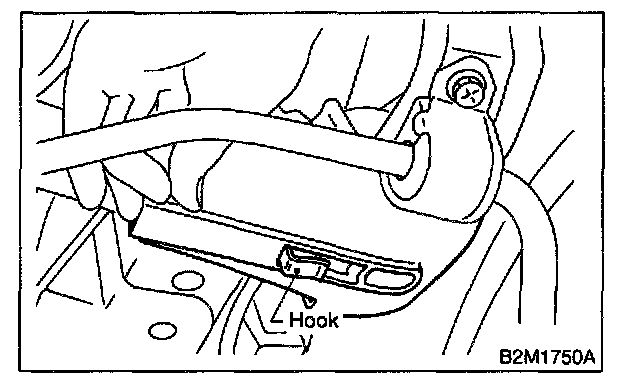

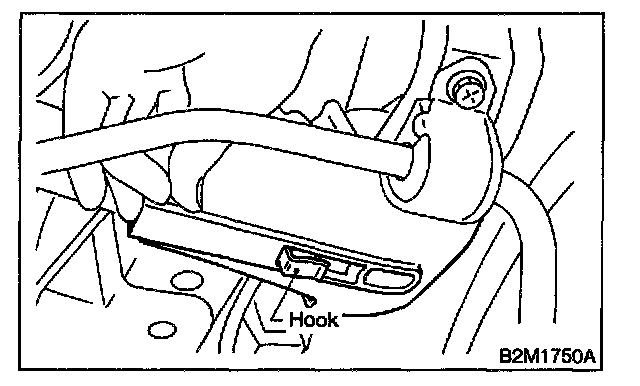

10. While releasing the under side of protector cover from hook, remove it.

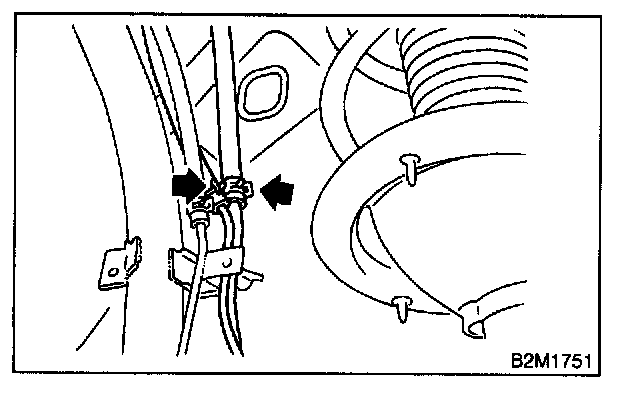

11. Disconnect evaporation hoses from pipes.

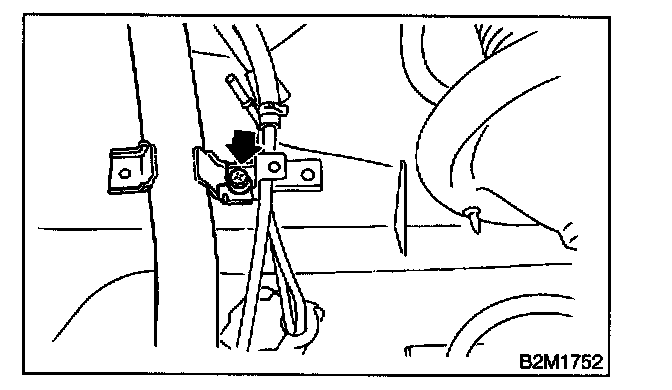

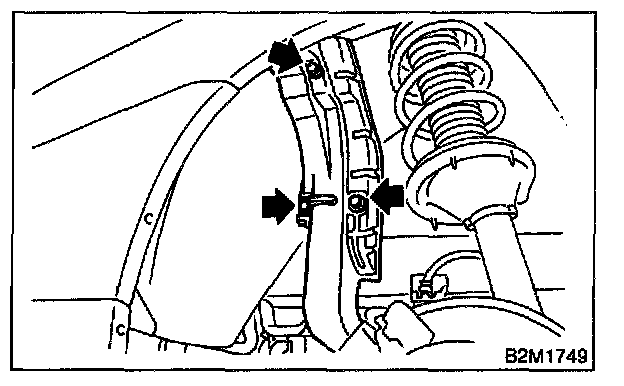

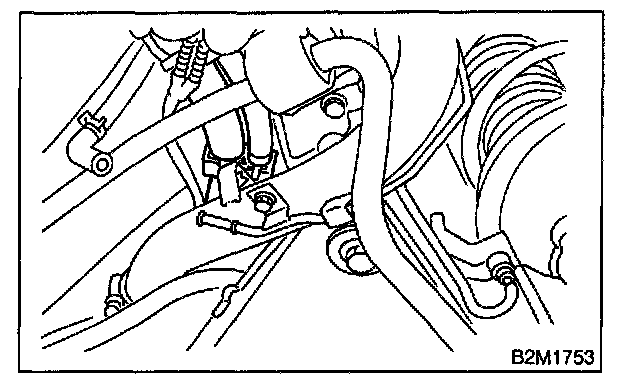

12. Remove bolts which hold fuel filler pipe bracket.
13. Lift-up the vehicle more.

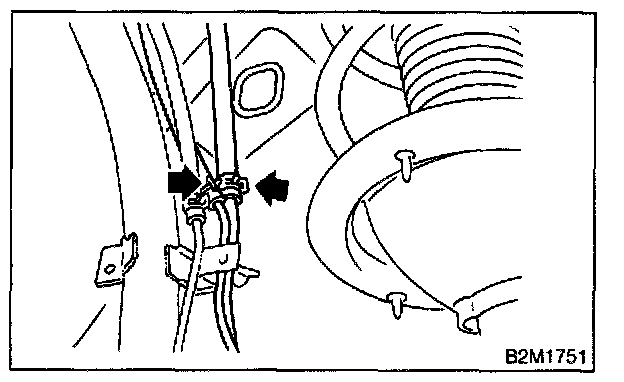

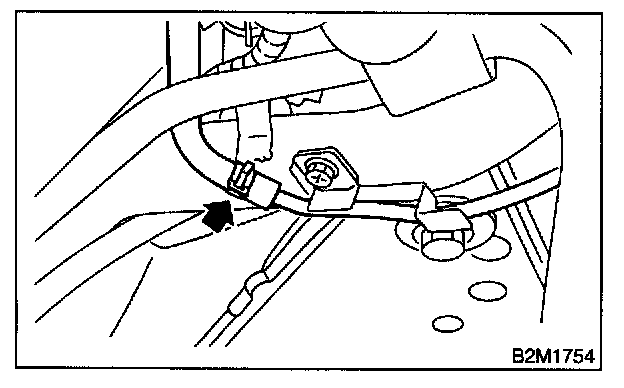

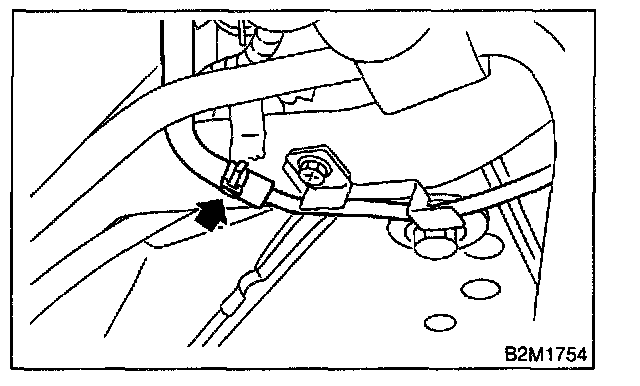

14. Remove two evaporation hoses from clip.
15. Disconnect evaporation hose from joint pipe.

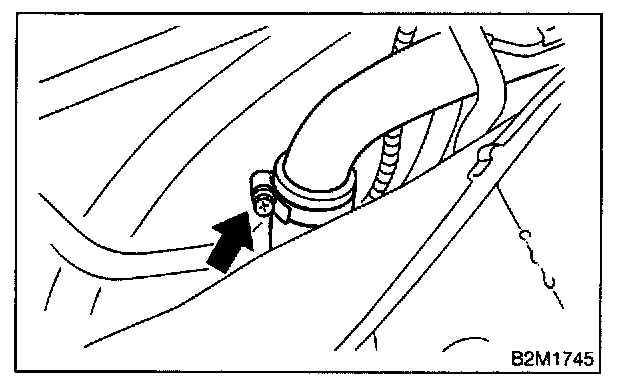

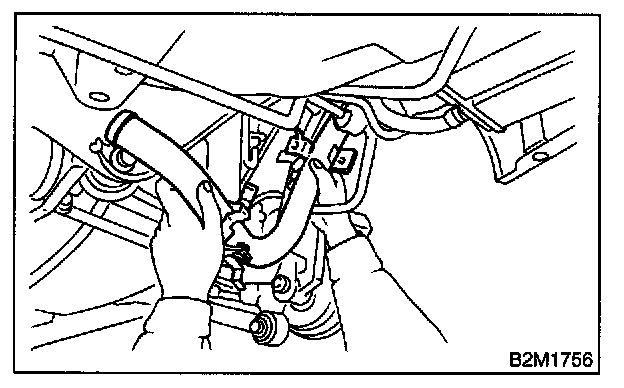

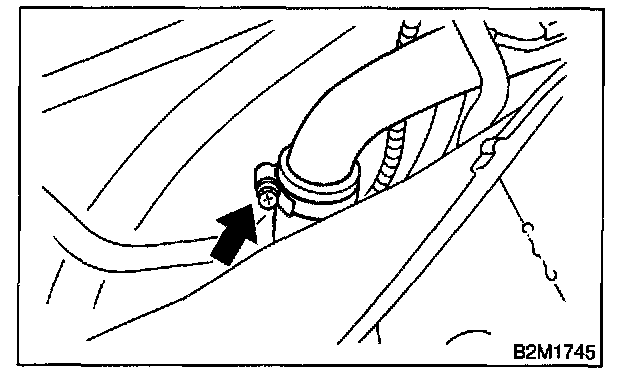

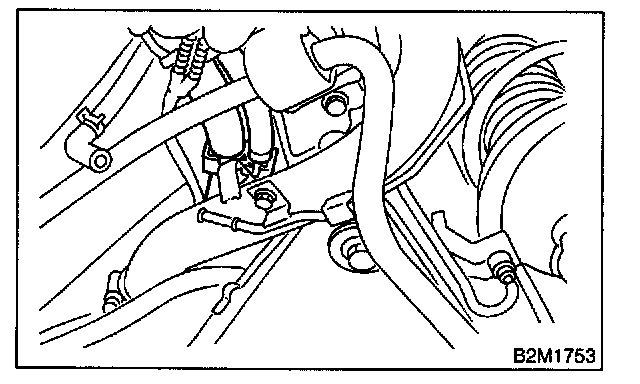

16. Loosen clamp, and disconnect fuel filler hose from fuel filler pipe.

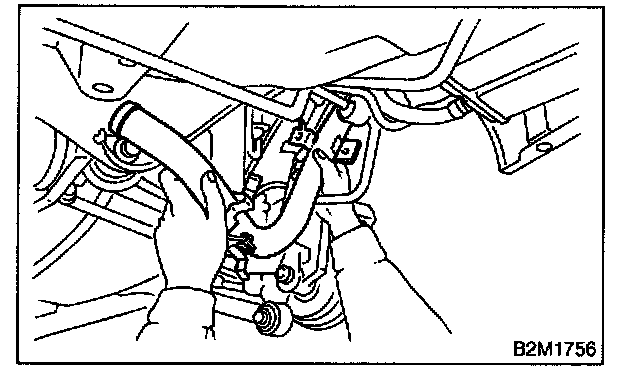

17. Remove fuel filler pipe to under side of vehicle.
INSTALLATION
1. Set fuel filler pipe from under side of vehicle, and hold it on fuel filler flap open.

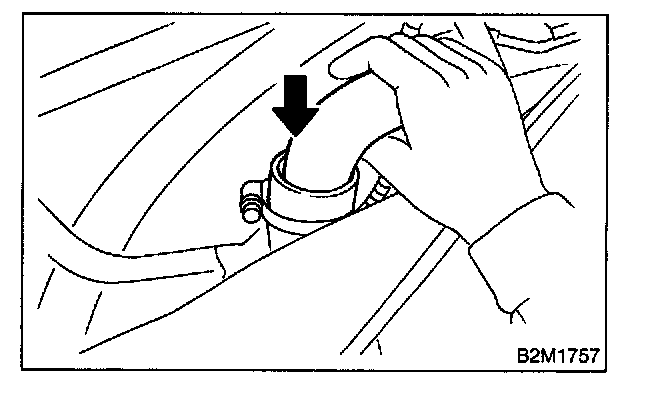

2. Connect fuel filler pipe into fuel filler hose.
3. Lower the vehicle.

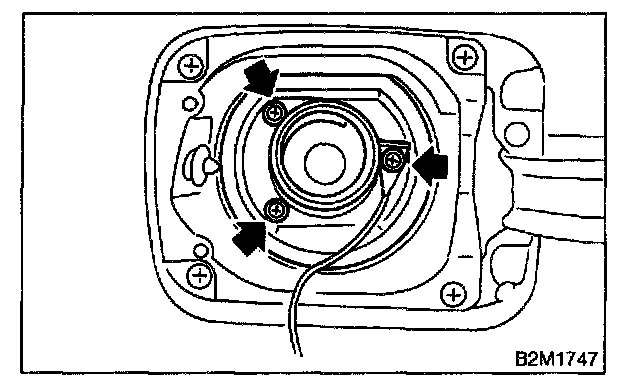

4. Temporarily tighten screws which install fuel filler pipe on filler lid open.

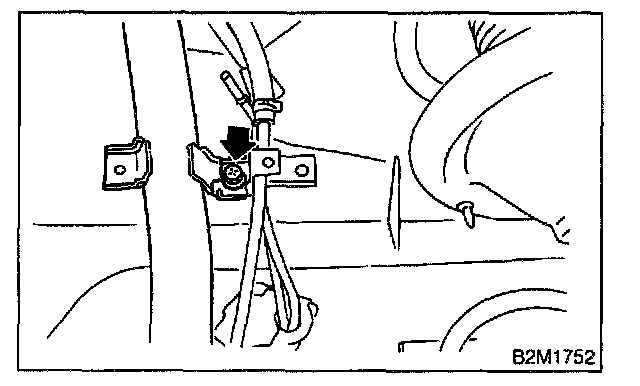

5. Tighten bolt which holds fuel filler pipe on body.
6. Connect evaporation hoses to pipes.
7. Lift-up the vehicle.
8. Tighten clamp bolt which holds fuel filler hose.
9. Install two evaporation hoses to clip.
10. Connect evaporation hose to joint pipe.
11. Lower the vehicle.
12. While holding the under side of protector cover on bracket, install it.
13. Tighten bolts which install protector cover on body.
14. Tighten screws which install fuel filler pipe on filler lid open.
15. Install rear right wheel.
16. Install fuel filler cap.

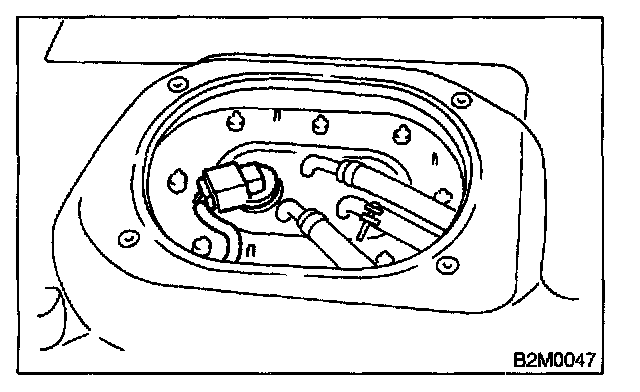

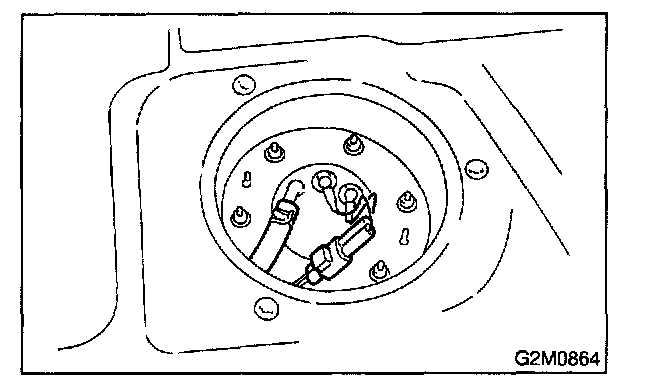

17. Install fuel pump, and connect connector and fuel hoses.
18. Install fuel sub meter unit, and connect connector and jet pump hose.

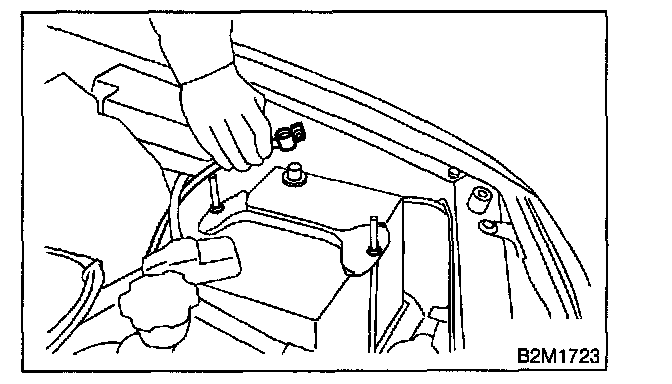

19. Connect battery ground terminal.
