Fuel Tank Cut Valve: Description and Operation

PURPOSE/OPERATION

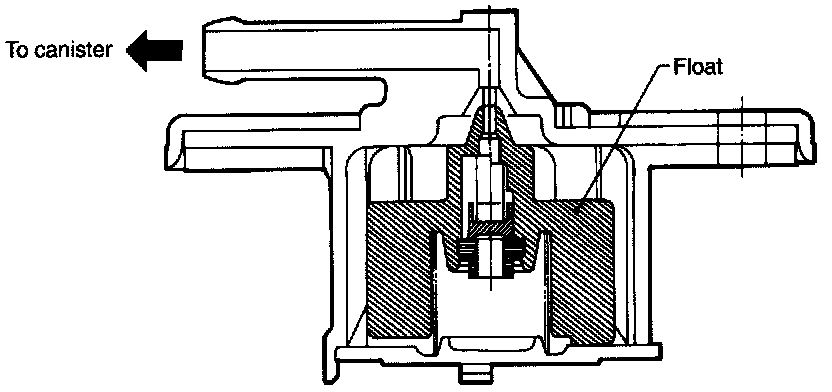

On the AWD Model, the fuel cut valve is built on to the evaporation pipe of the fuel tank cap. The rising level of the fuel from the fuel tank causes the float to move up and close the cap hole so that no fuel can enter the evaporation Line.
