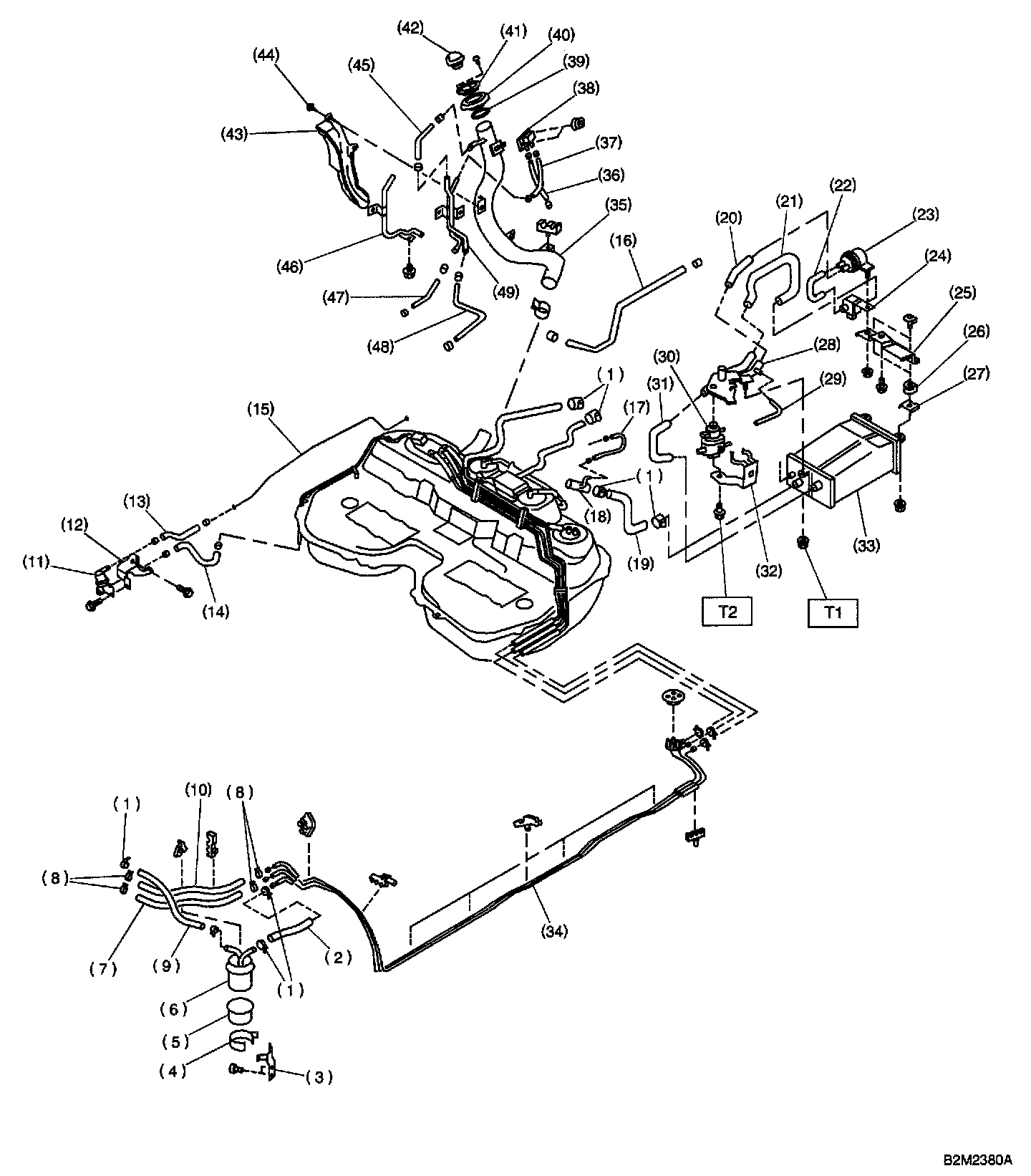

Fuel Return Line: Locations

1. Clamp
2. Fuel delivery hose A
3. Fuel filter bracket
4. Fuel filter holder
5. Fuel filter cup
6. Fuel filter
7. Evaporation hose
8. Clip
9. Fuel delivery hose B
10. Fuel return hose
11. Roll over valve
12. Roll over valve bracket
13. Evaporation hose H
14. Evaporation hose I
15. Evaporation pipe B
16. Evaporation hose J
17. Evaporation hose K
18. Joint pipe
19. Canister hose A
20. Air filter hose A
21. Drain valve hose
22. Air filter hose B
23. Air filter
24. Drain valve
25. Canister upper bracket
26. Cushion rubber
27. Canister lower bracket
28. Canister holder
29. Evaporation hose L
30. Pressure control solenoid valve
31. Canister hose B
32. Pressure control solenoid valve holder
33. Canister
34. Fuel pipe ASSY
35. Fuel filler pipe
36. Evaporation hose M
37. Evaporation hose N
38. Shut valve
39. Packing
40. Ring A
41. Ring B
42. Fuel filler cap
43. Fuel filler pipe protector
44. Tapping screw
45. Evaporation hose O
46. Joint pipe
47. Evaporation hose P
48. Evaporation hose Q
49. Evaporation pipe

Tightening torque: Nm (kg.m, ft.lb)
T1: 23 ± 7 (2.3 ± 0.7, 16.6 ± 5.1)
T2: 25 ± 7 (2.5 ± 0.7, 18.1 ± 5.1)
