Fuel Injector: Service and Repair

1. Release fuel pressure.

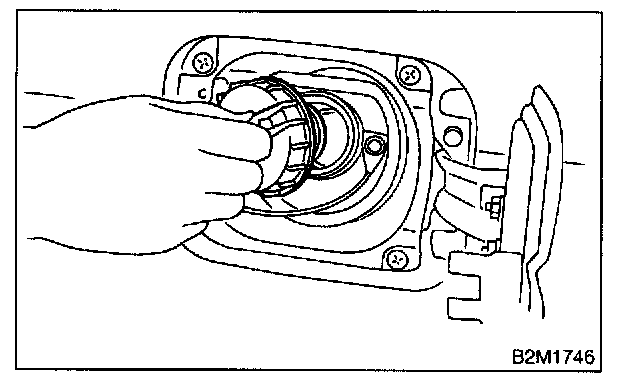

2. Open fuel flap lid, and remove fuel filler cap.

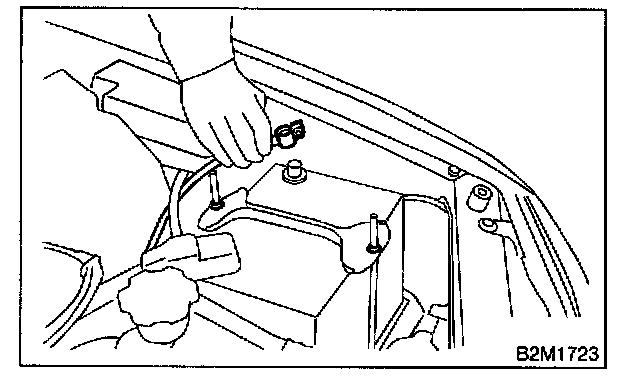

3. Disconnect battery ground cable.

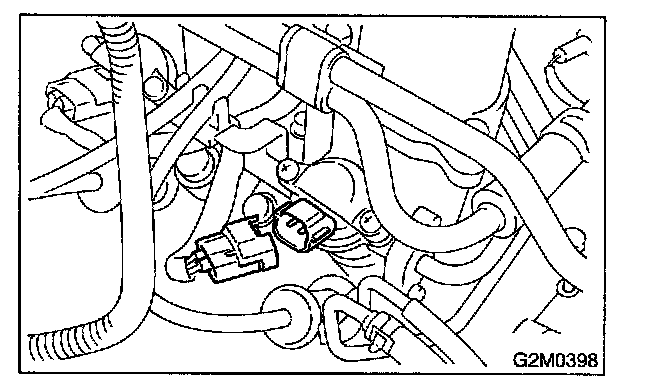

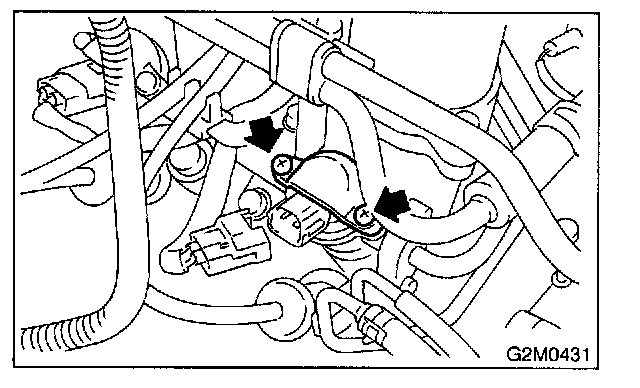

4. Disconnect connector from fuel injector.





5. Remove fuel injector from fuel pipe assembly.





6. Installation is in the reverse order of removal.

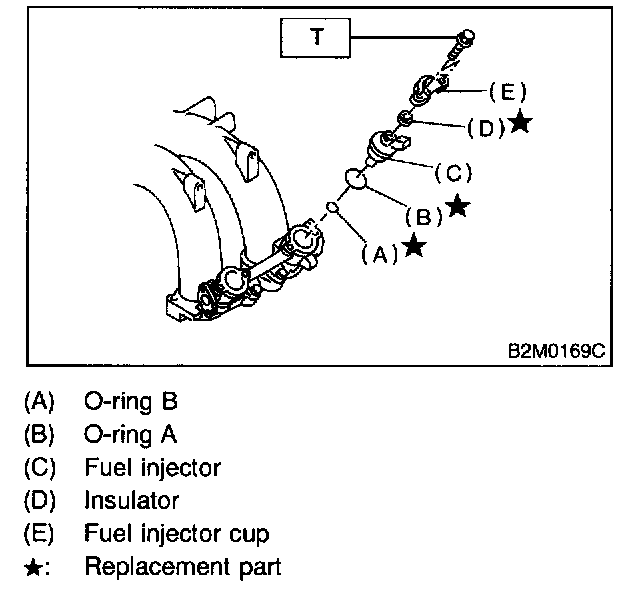

CAUTION: Replace O-rings and insulator.

Tightening torque:
T: 3.4 ± 0.5 Nm (0.35 ± 0.05 kg.m, 2.5 ± 0.4 ft.lb)
