Positive Crankcase Ventilation Valve: Service and Repair

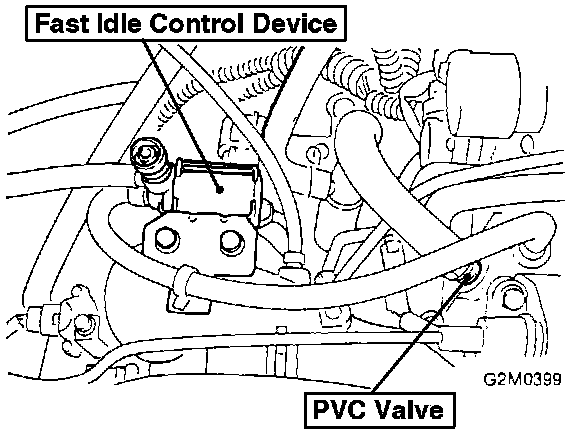

FICD Device - 1, PCV Valve - 2:

REMOVAL
1. Remove the hose from the valve.
2. Remove the valve in the counterclockwise direction.

INSTALLATION
1. Reinstall the valve and tighten to 20 - 35 Nm (14 - 19 ft lb).
2. Reconnect the hose.
