Vent Valve

1. Release fuel pressure.

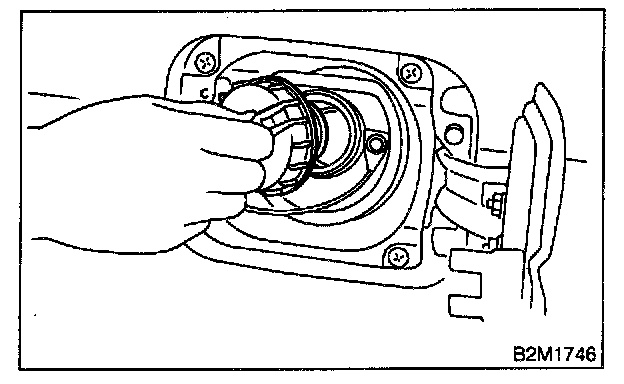

2. Open fuel flap lid, and remove fuel filer cap.

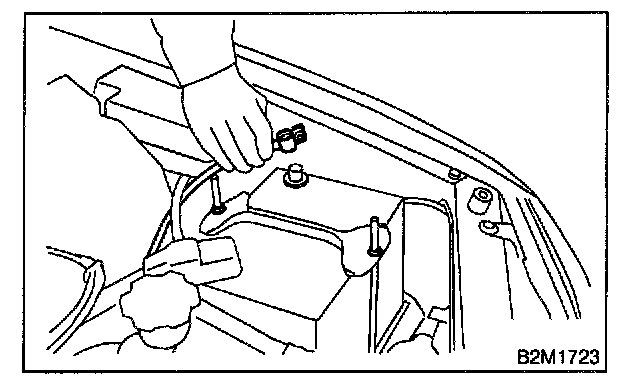

3. Disconnect battery ground cable.

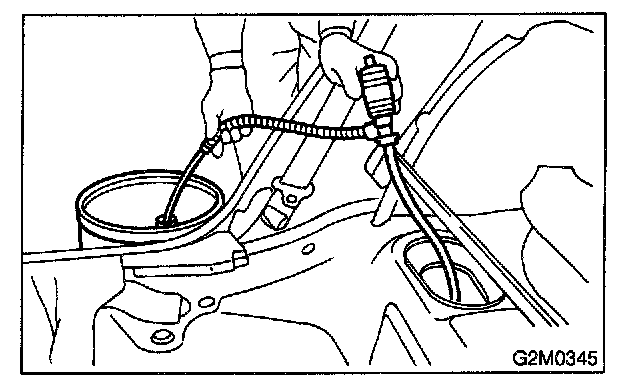

4. Drain fuel from fuel tank.

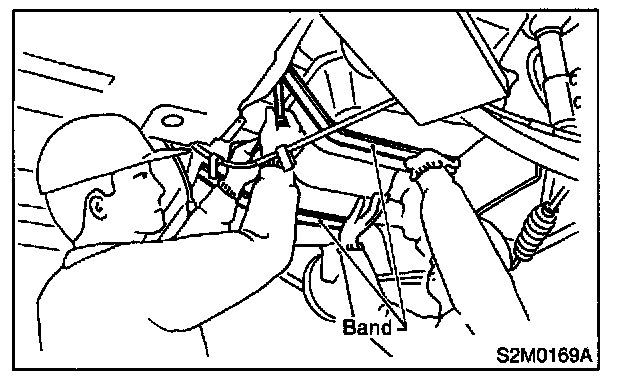

5. Remove fuel tank.

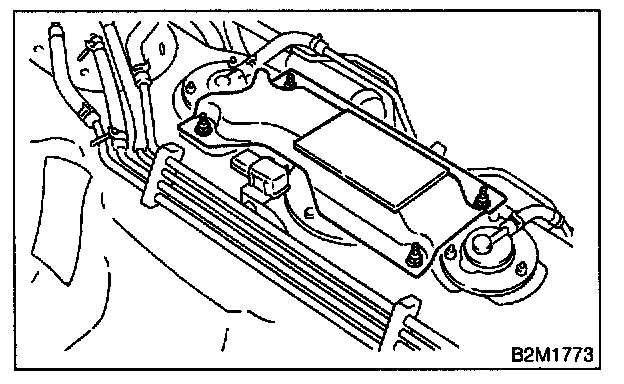

6. Remove protector cover.

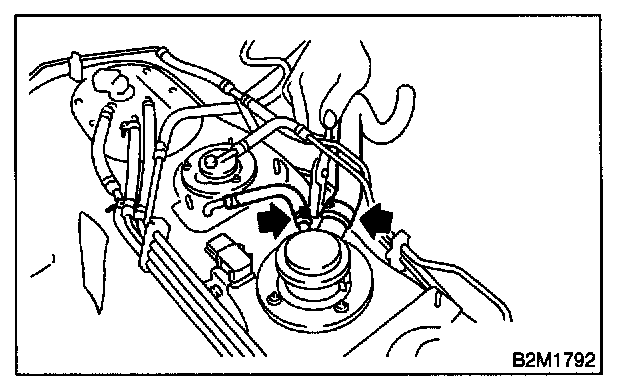

7. Move clips, and disconnect hoses from vent valve.

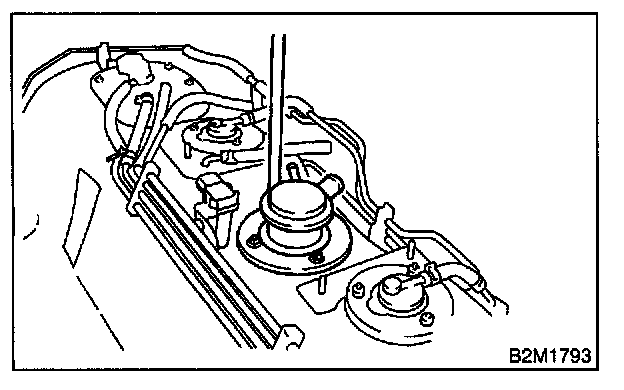

8. Remove nuts which install vent valve on fuel tank.





9. Installation is in the reverse order of removal.

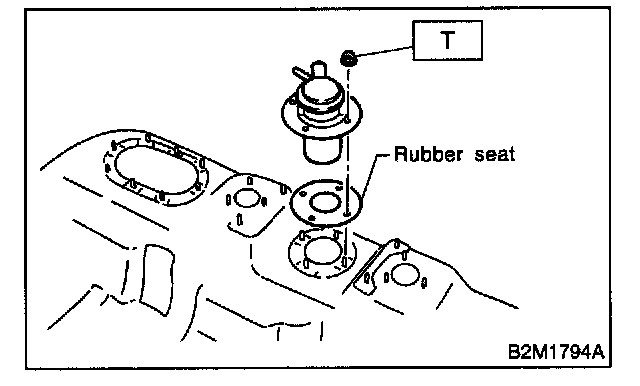

CAUTION: Replace rubber seat with a new one.

Torque: 4.4 ± 1.5 Nm (3.3 ± 1.1 ft.lb)
