Drain Valve

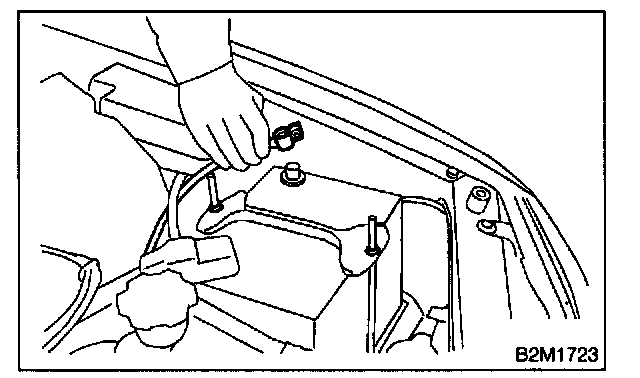

1. Disconnect battery ground cable.
2. Lift-up the vehicle.

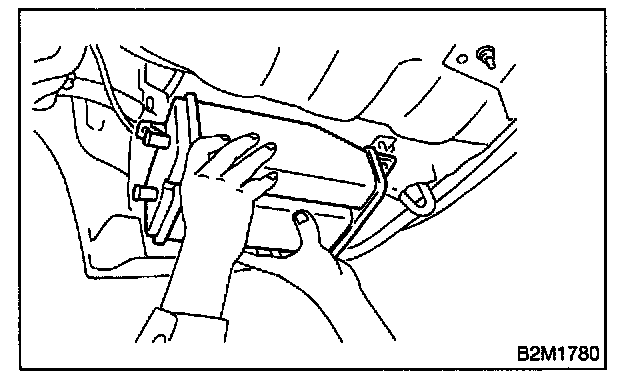

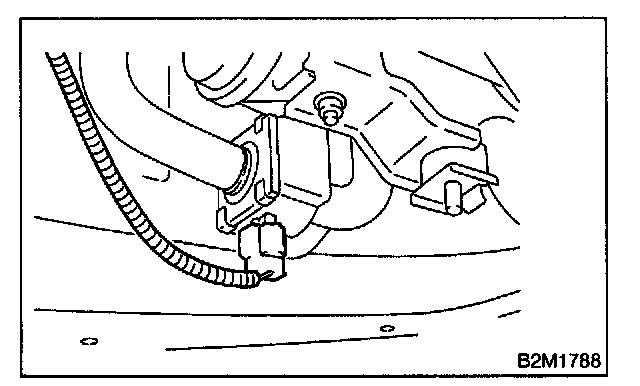

3. Remove canister.

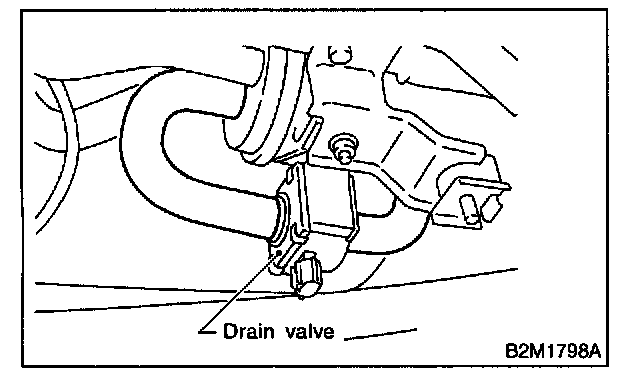

4. Disconnect connector from drain valve.

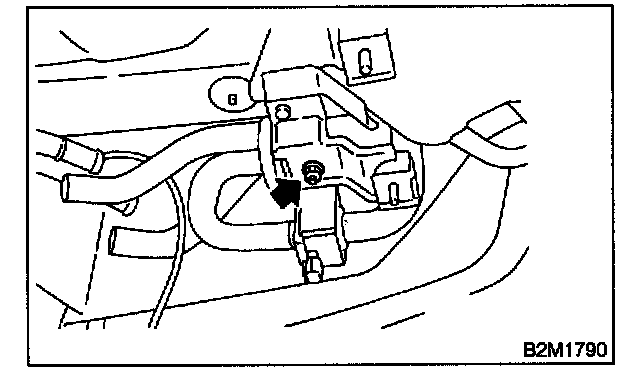

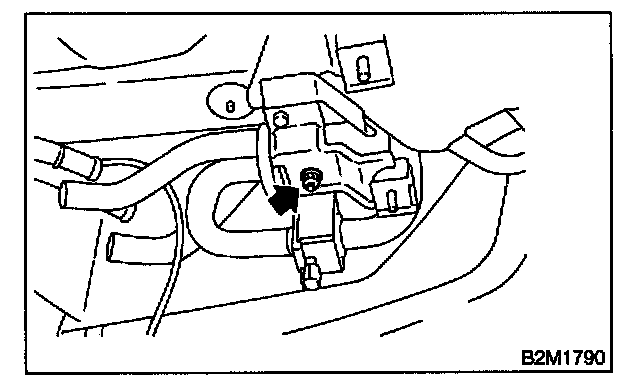

5. Disconnect evaporation hoses from drain valve.





6. Remove bolt which installs air filter and drain valve brackets on body.

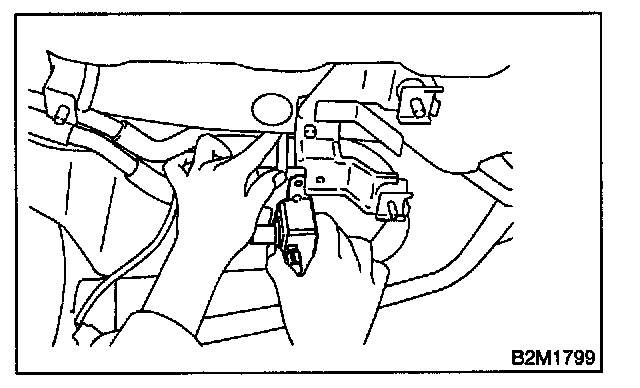

7. Move air filter to upper side, and remove drain valve with bracket.





8. Installation is in the reverse order of removal.

Torque: 22.5 ± 7 Nm (16.6 ± 5.1 ft.lb)
