Communication For Initializing Impossible-Select Monitor

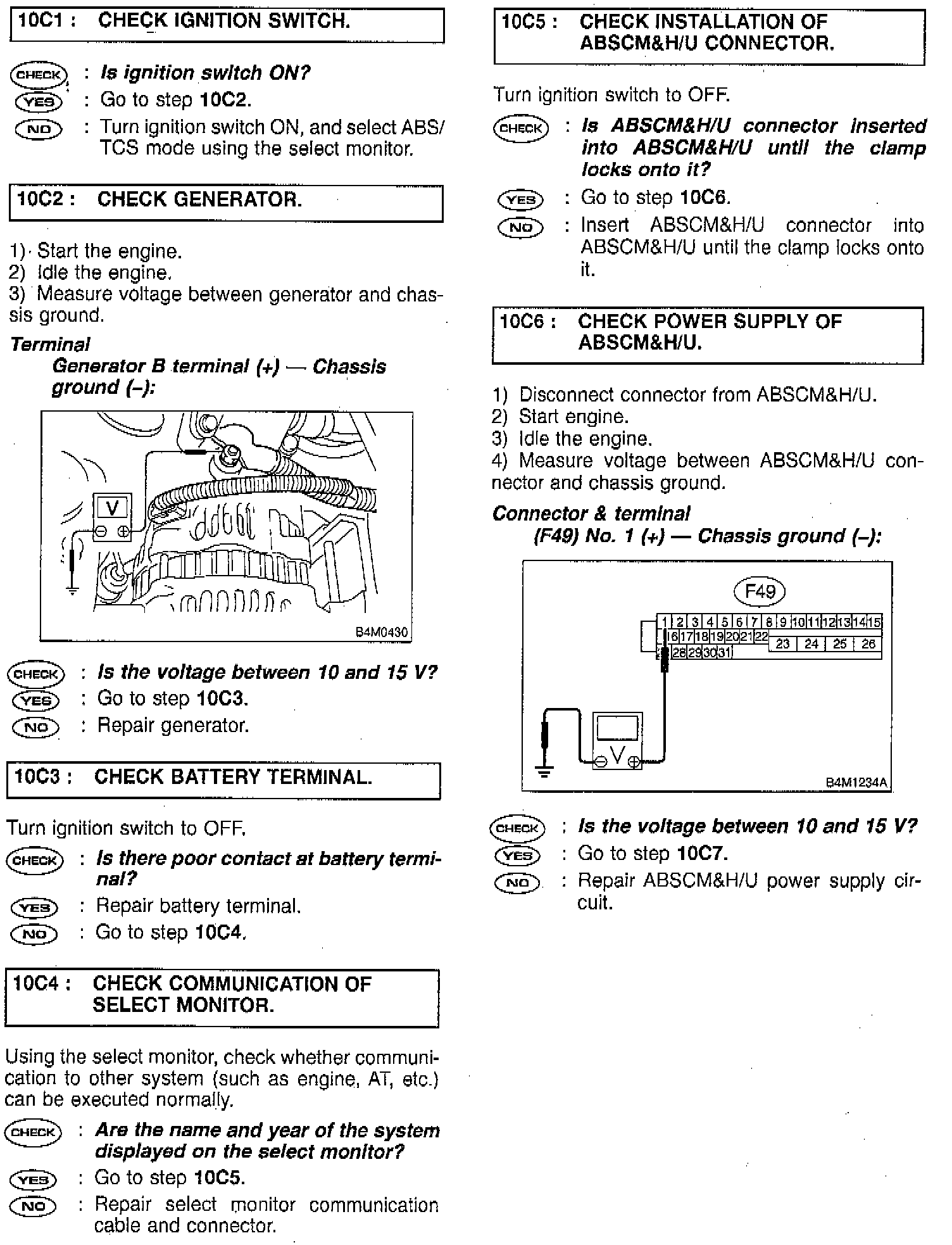

Part 1 Of 2:




Part 2 Of 2:






DIAGNOSIS:
Faulty harness connector

TROUBLE SYMPTOM:
ABS warning light remains on.

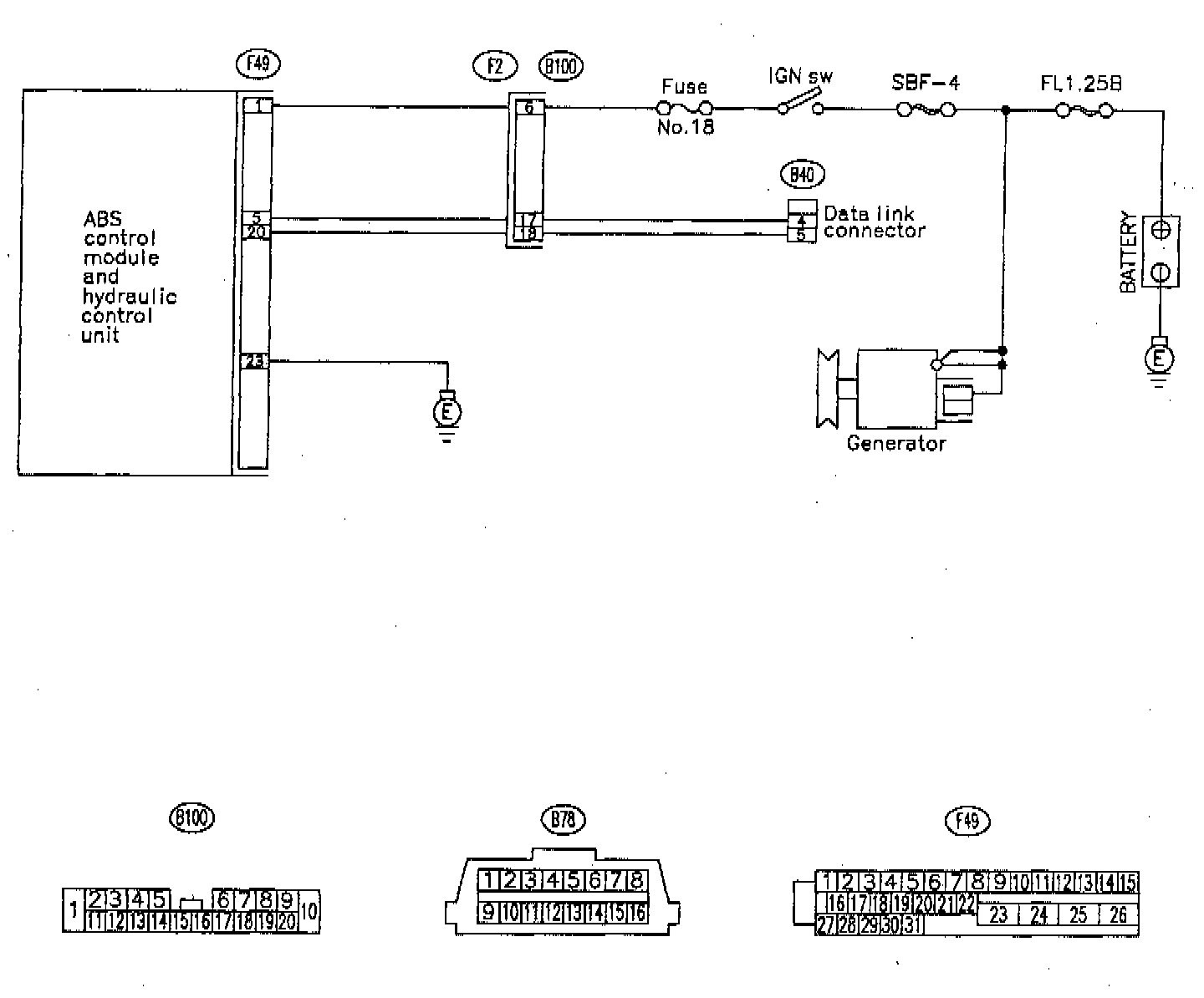

WIRING DIAGRAM:
