Headlamp Bulb: Service and Repair

REMOVAL AND INSTALLATION

1. Disconnect the connector from inside of the engine compartment.

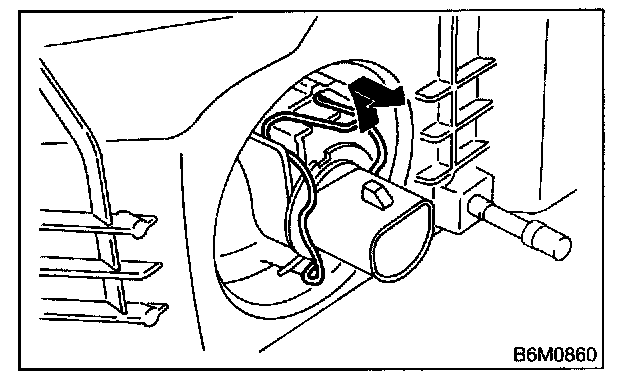

2. Remove the light bulb retaining spring and then remove the bulb.
3. Replace the bulb with a new one and hook the spring.




4. Connect the connector.

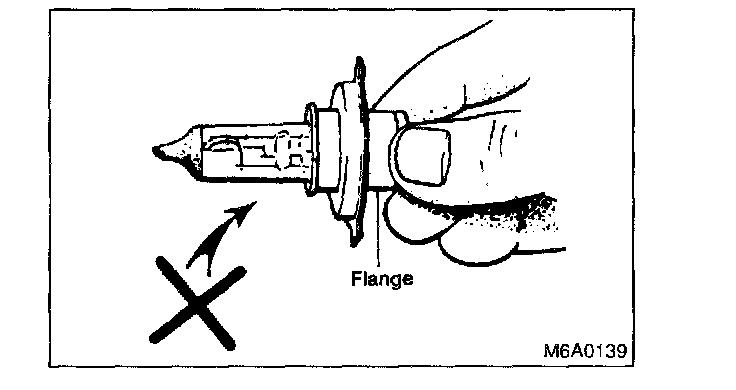

CAUTION: Since the tungsten halogen bulb operates at high temperature, dirt and oil on the bulb surface decreases the bulb's useful life. When replacing the bulb, hold the flange portion and do not touch the glass portion.

5. Installation is in the reverse order of removal.
