Instrument Panel Bulb: Description and Operation

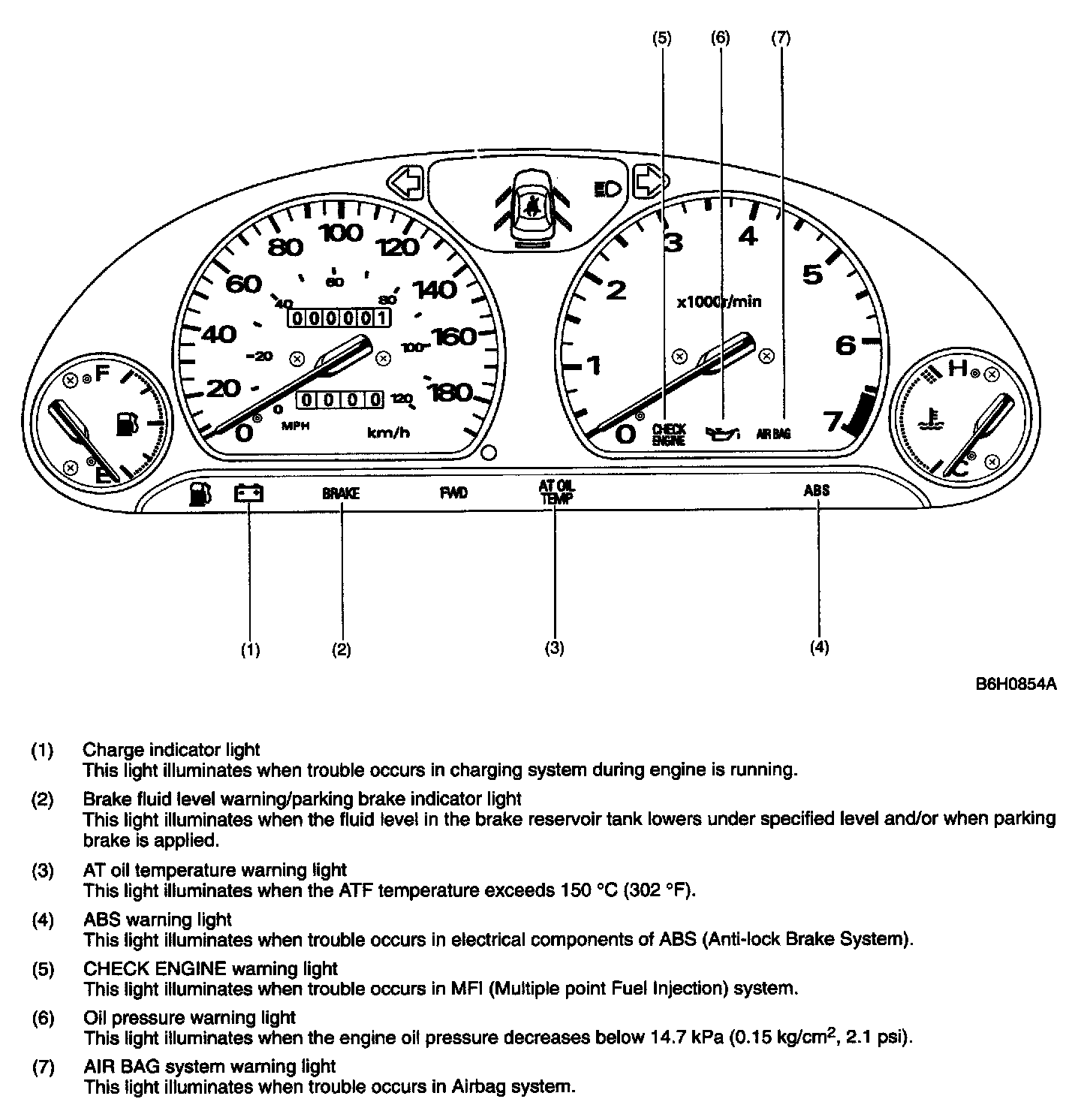

WARNING AND INDICATOR LIGHT

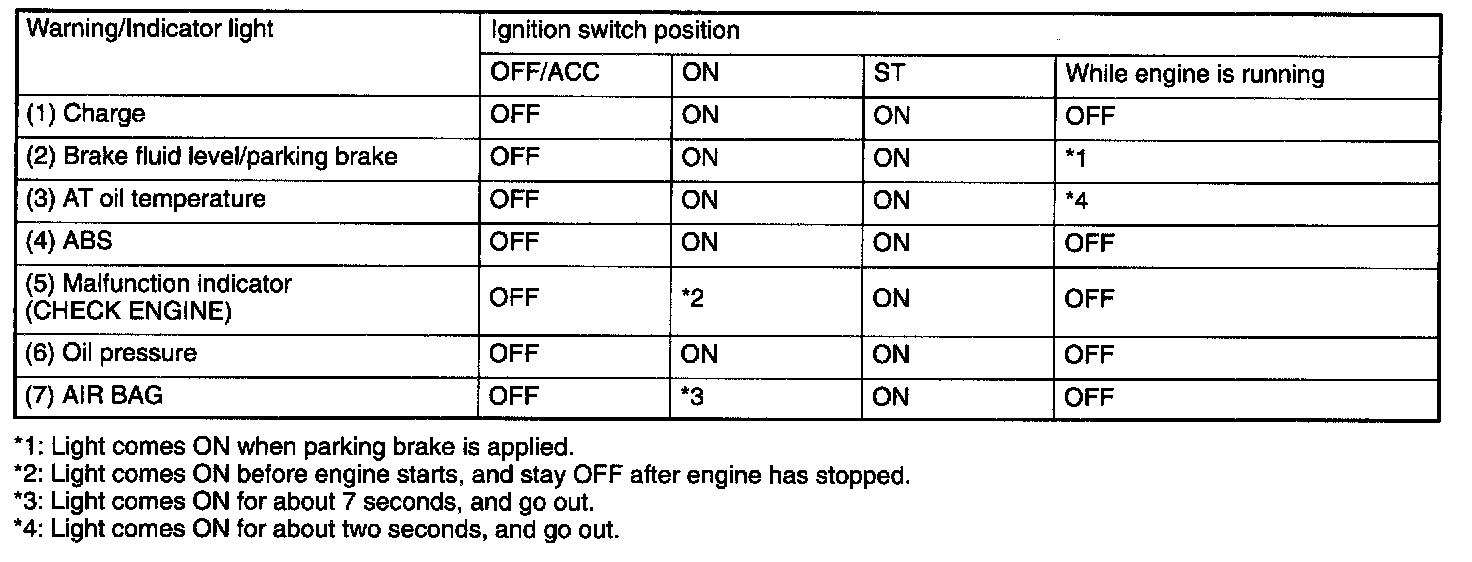

According to ignition switch position, the warning and indicator lights will come on and/or go off under normal conditions
