Combination Meter
Combination MeterDESCRIPTION
The combination meter is of a sporty and compact design, and all elements of which can be visible through the steering wheel. However, important meters and indicators are designed as large as possible to improve safety.

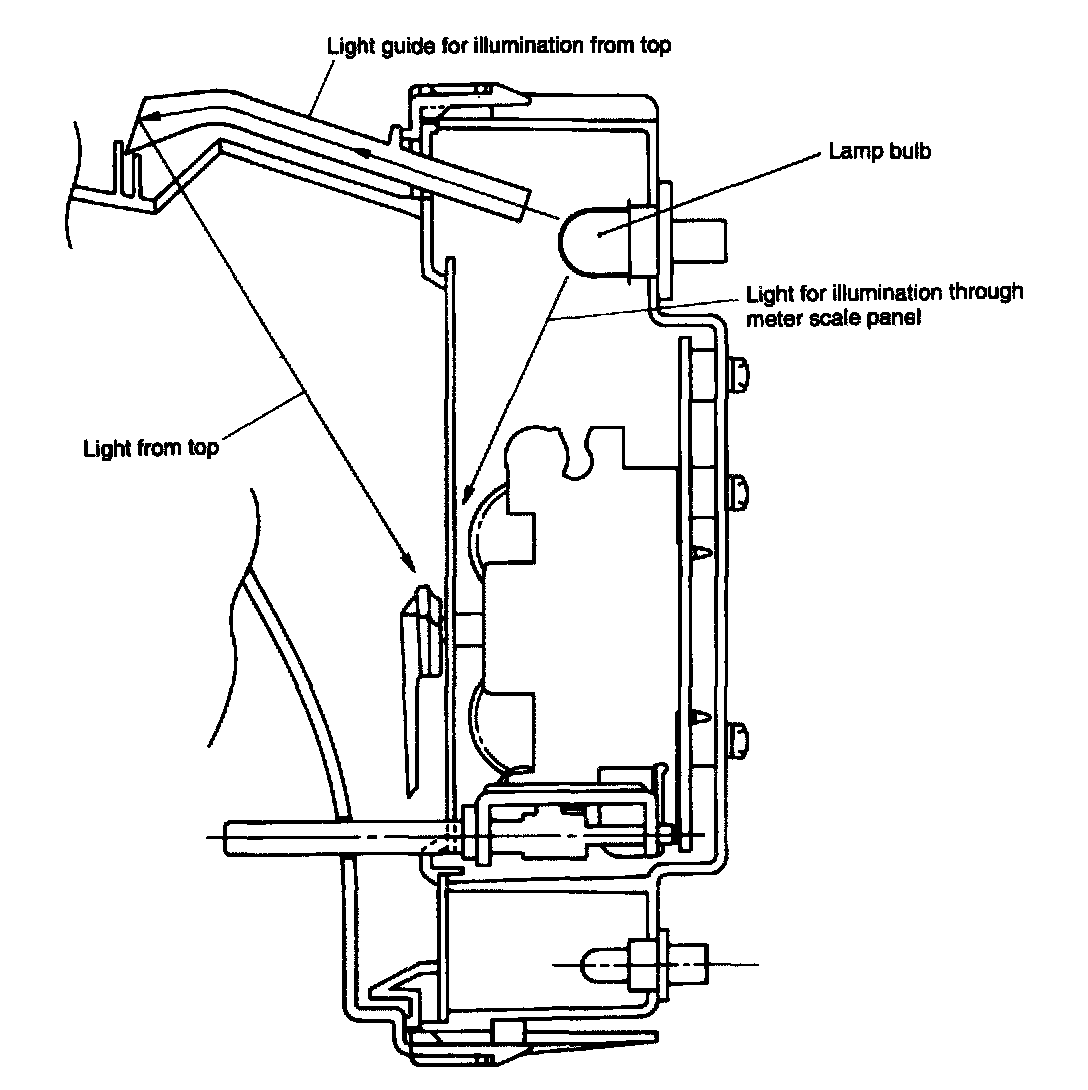

The meters are illuminated both from the top of the meter housing and from behind the scale plate, which assures less stress on the driver's eyes.
The combination meter assembly is installed to the instrument panel by four screws.

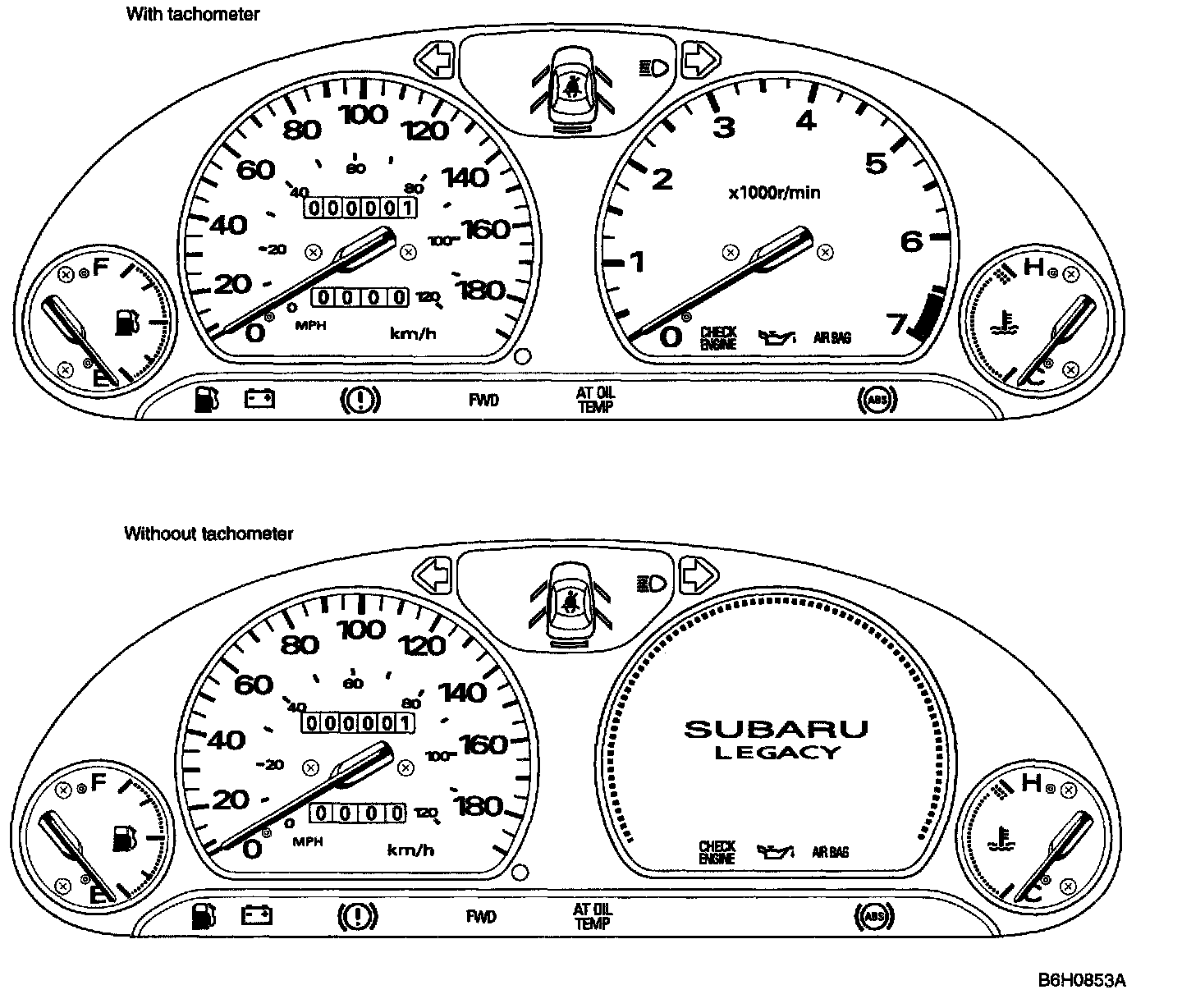

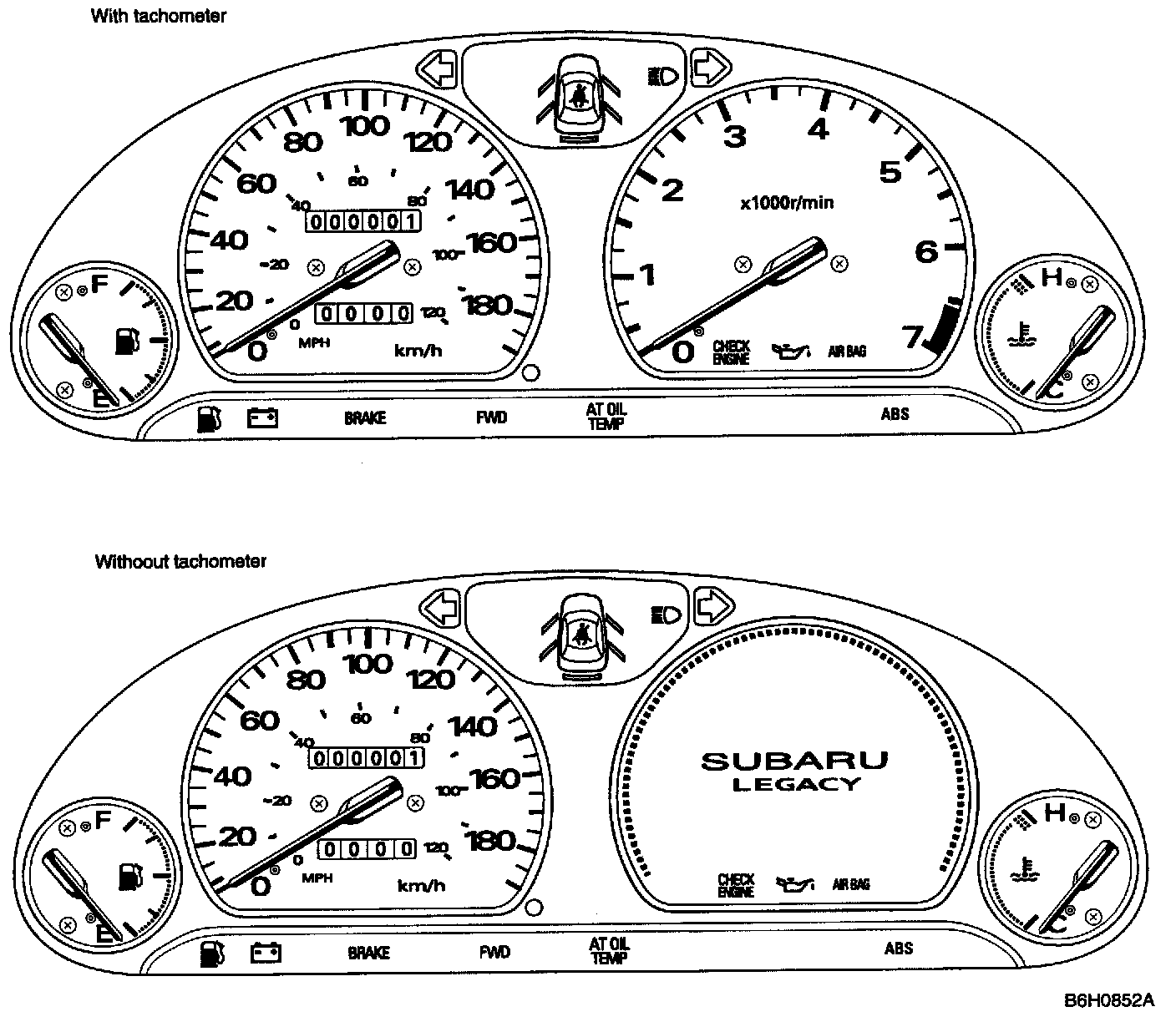

APPEARANCE
EXCEPT CANADA MODEL
CANADA MODEL

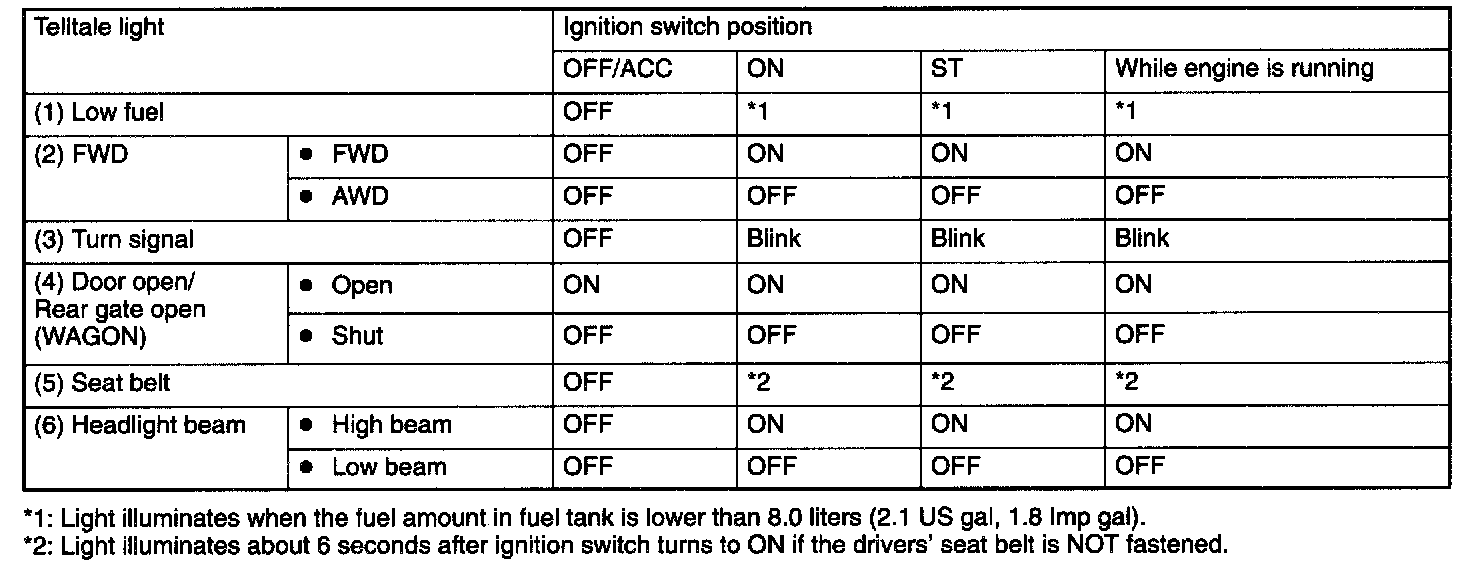

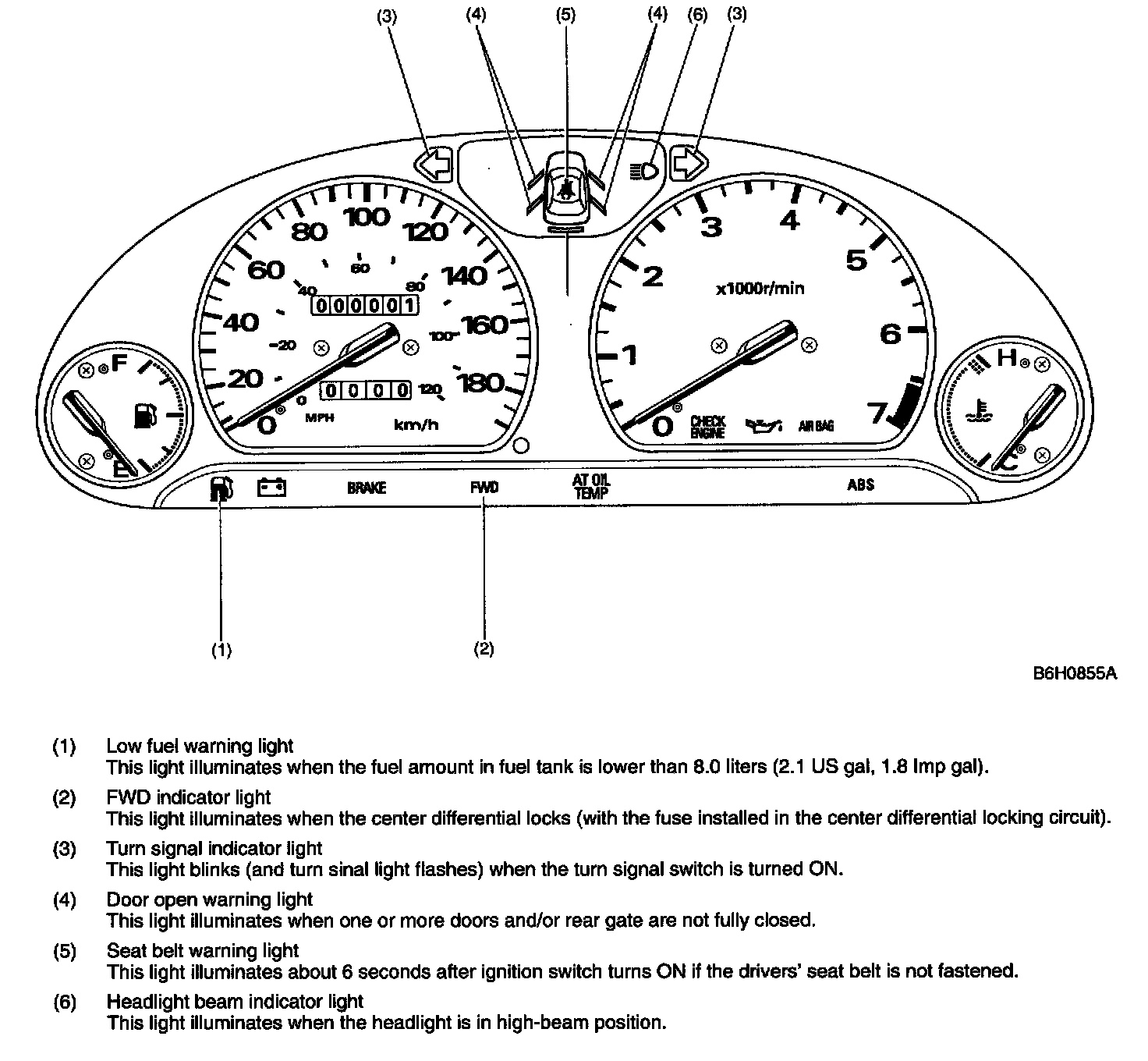

TELLTALE (GRAPHIC MONITOR)
According to ignition switch position, the telltales will come on and/or go off under normal conditions as shown.
