Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostics >> Compressor Clutch Diagnosis

Compressor Clutch Diagnosis

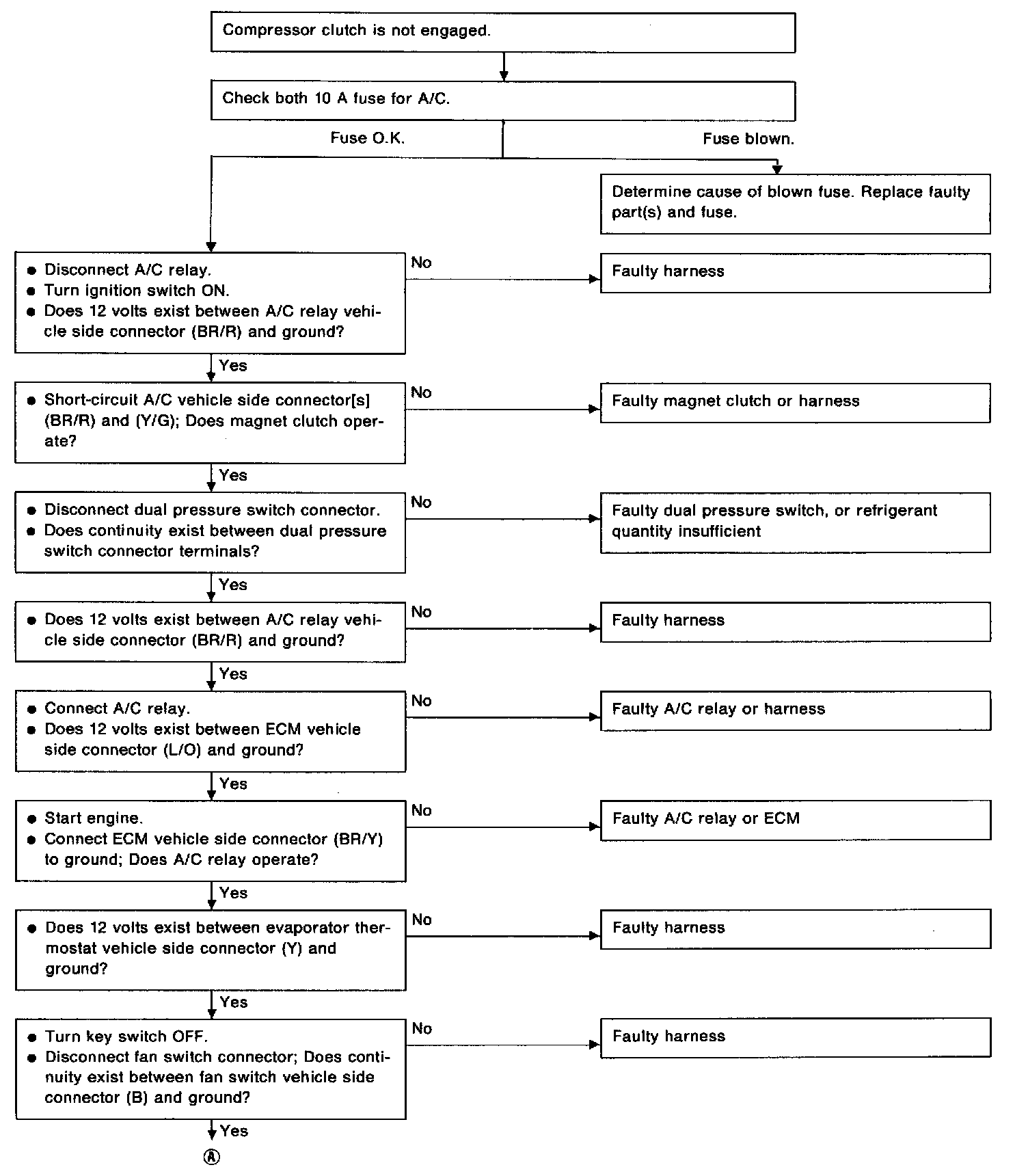

Compressor Clutch Diagnosis Part 1:

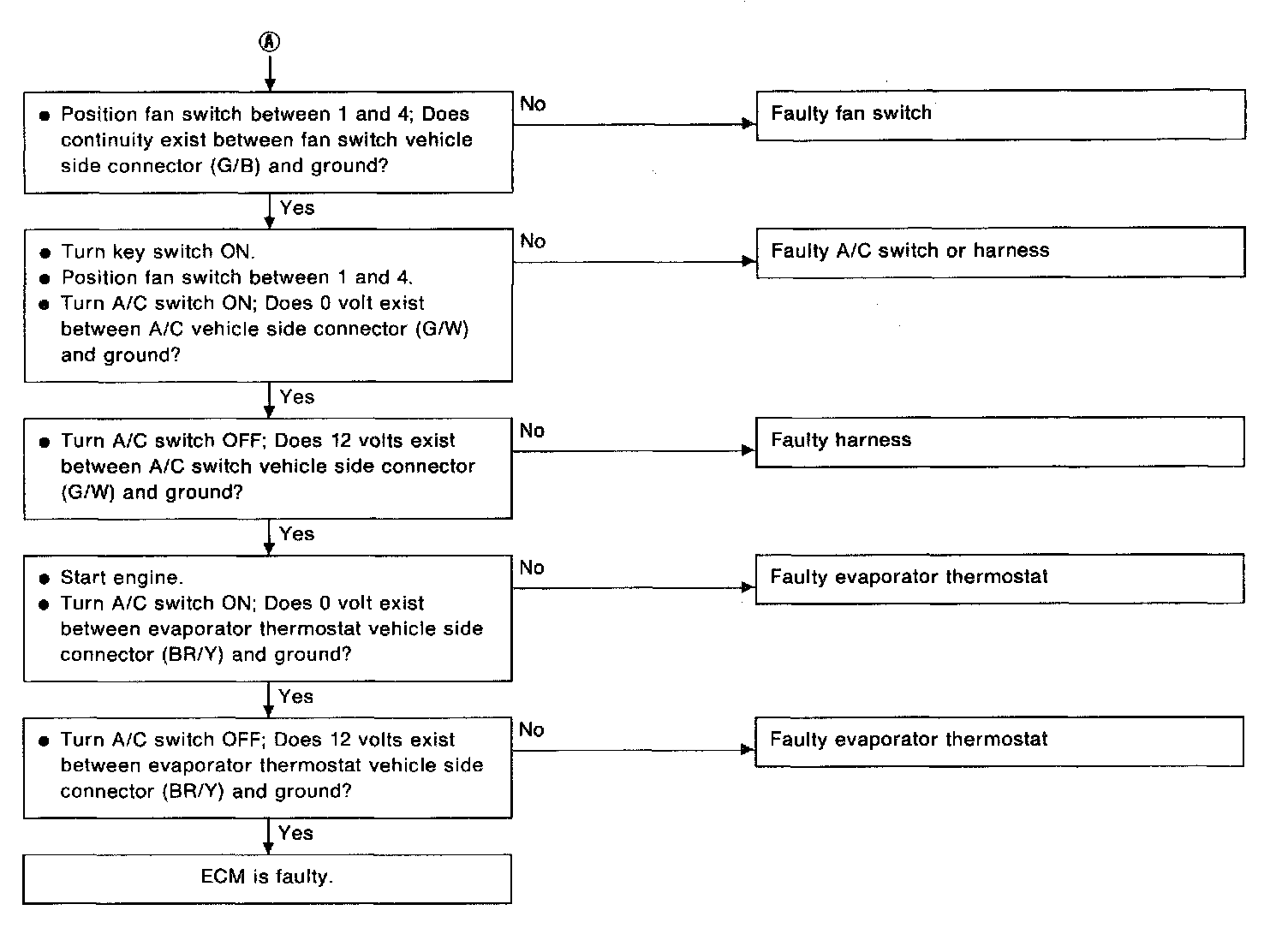

Compressor Clutch Diagnosis Part 2:
