Receiver Dryer: Service and Repair

Receiver Drier

REMOVAL AND INSTALLATION




1. Disconnect battery negative terminal.
2. Discharge refrigerant using refrigerant recovery system.

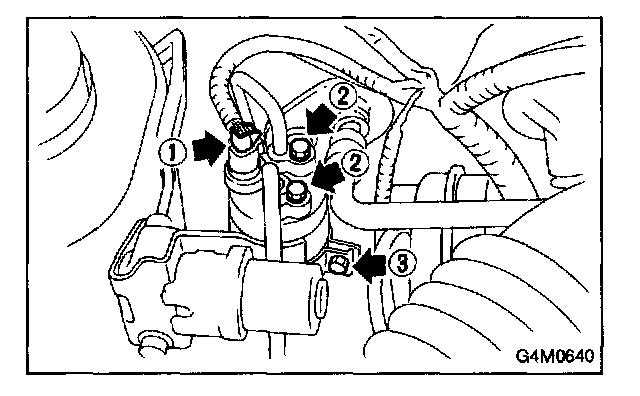

3. Disconnect pressure switch harness (1).
4. Disconnect pipes (2).
5. Remove mounting bolt (3) and remove receiver drier.

CAUTION: The receiver drier contains a desiccant. Be sure to put a blind plug in the detached receiver drier to protect it from moisture.

6. Install the receiver drier in the reverse order of removal.
7. Charge refrigerant.
