Control Assembly: Service and Repair

CONTROL UNIT REMOVAL
1) Disconnect GND cable from battery.
2) Set temperature control lever to "FULL COLD" position.

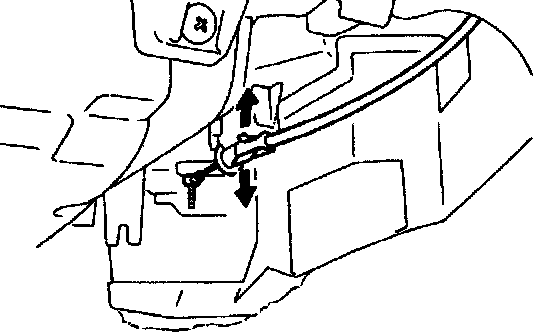

3) Remove temperature control cable from heater unit.

NOTE: Do not attempt to move link of heater unit during installation.

4) Remove cup holder.

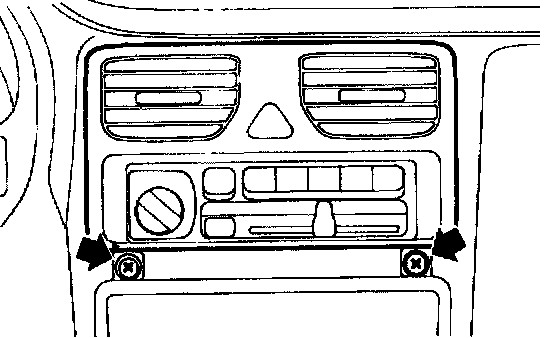

5) Remove center panel and then disconnect connector.

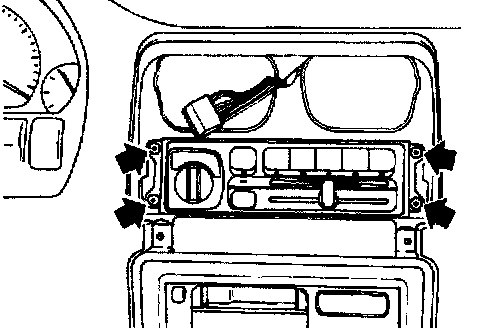

6) Remove control unit assembly and disconnect connector.

ADJUSTMENT
1) Operate temperature control lever to "FULL COLD" position.

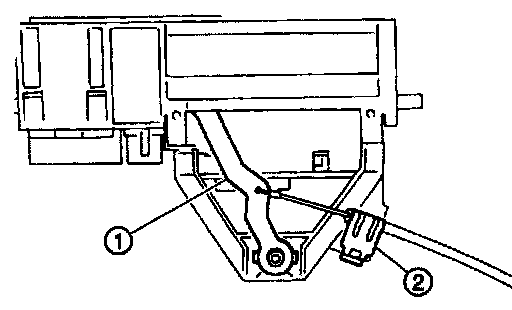

2) Install control cable to lever (1). While pushing outer cable, secure control cable with clip (2)


INSTALLATION
Installation is in the reverse order of removal.

NOTE: Before control unit installation, set temperature control lever to "FULL COLD" position.
