Condenser Fan: Testing and Inspection

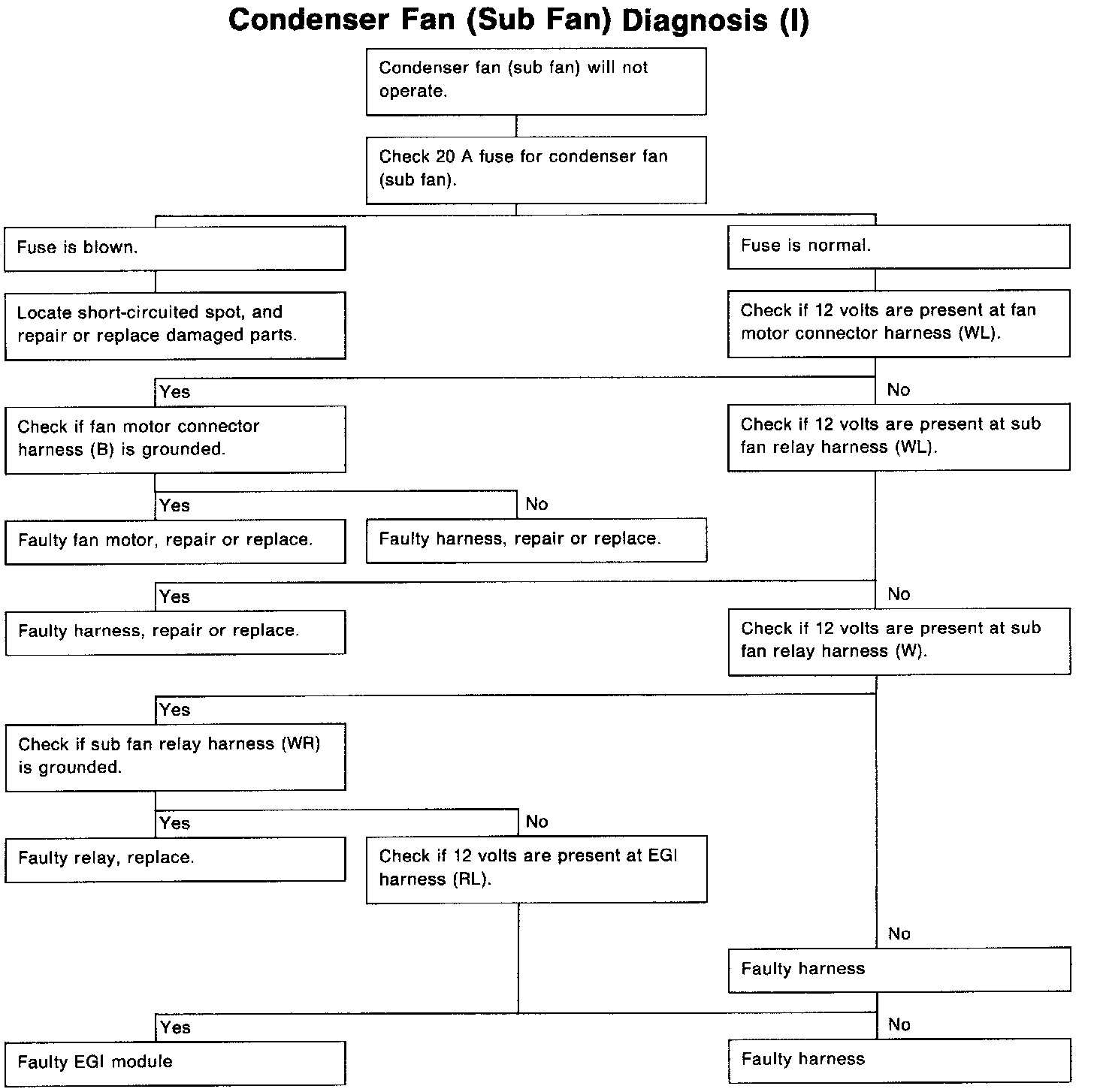

Condenser Fan (Sub Fan) Diagnosis (1):

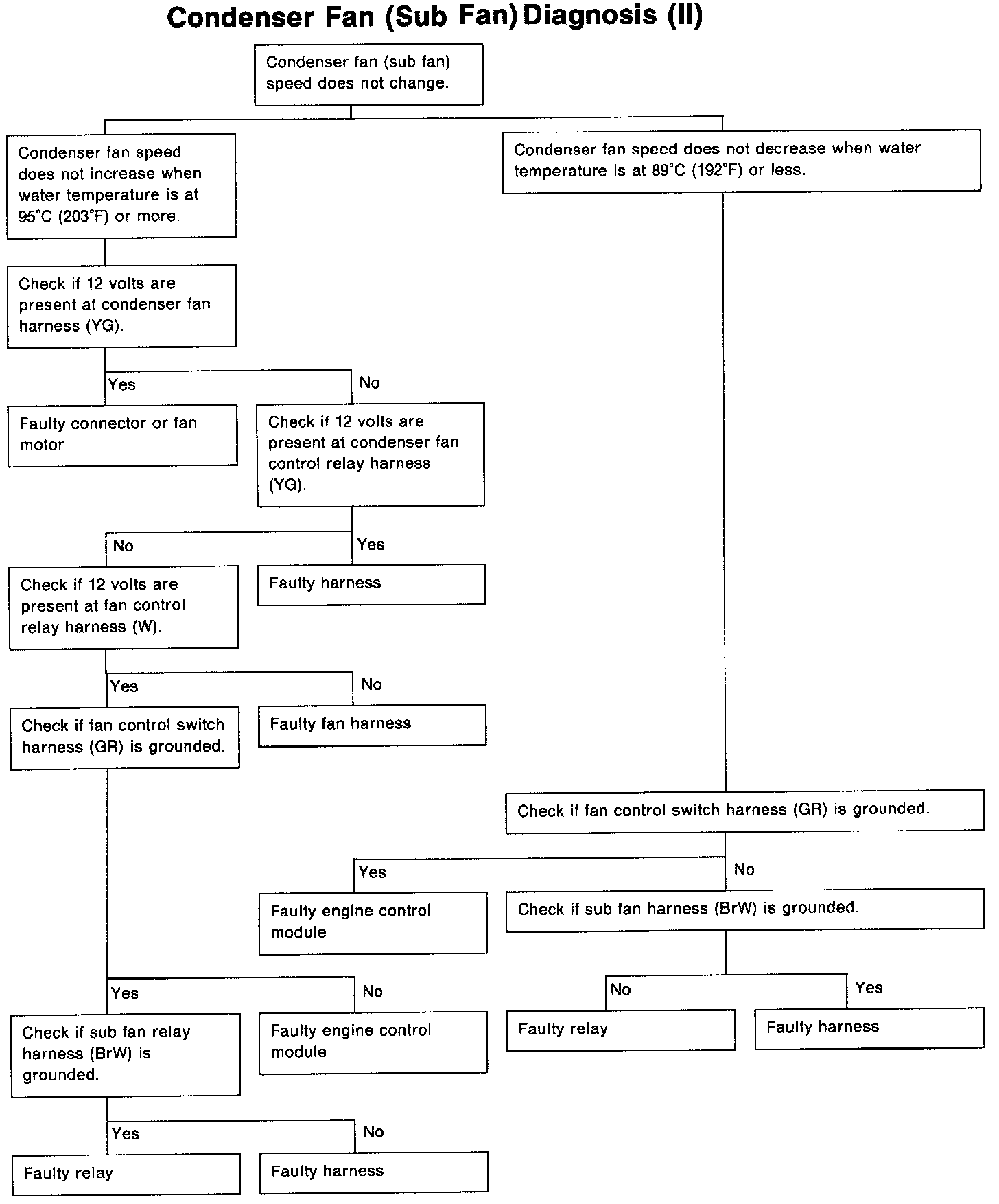

Condenser Fan (Sub Fan) Diagnosis (2):
