Oil Pressure Sender: Service and Repair

A: REMOVAL

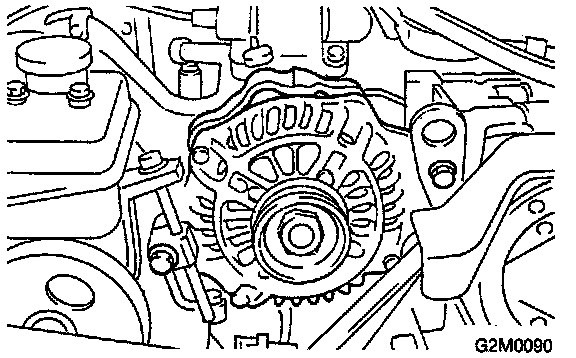

1) Remove alternator from bracket.

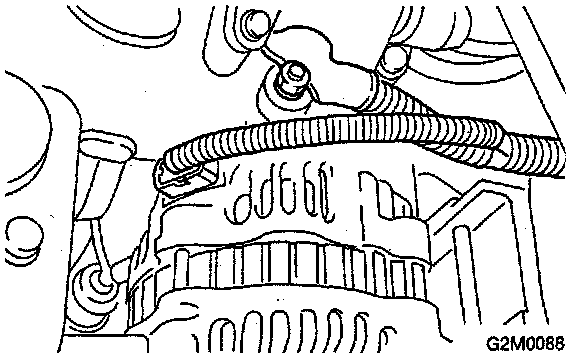

1) Disconnect connector and terminal from generator.

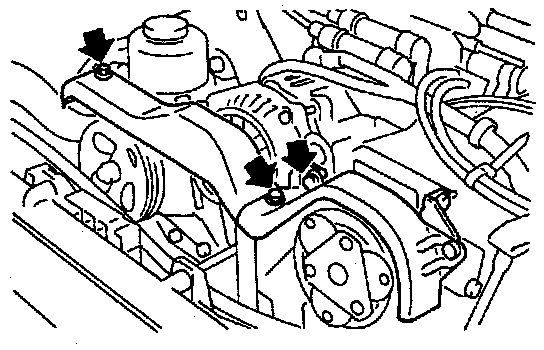

2) Remove V-belt cover.
3) Loosen lock bolt and slider bolt, and remove front side V-belt.





4) Remove bolts which install generator on bracket.





2) Disconnect terminal from oil pressure switch.
3) Remove oil pressure switch.

B: INSTALLATION





1) Install oil pressure switch onto engine block.

Tightening torque: 25 ± 3 Nm (2.5 ± 0.3 kg-m, 18.1 ± 2.2 ft. lbs.)

2) Connect terminal of oil pressure switch.





3) Install generator on bracket and temporary tighten installing bolts.





4) Install front side V-belt and adjust it.
5) Install V-belt cover.





6) Connect connector and terminal to generator.
