Cooling Fan Relay 1 Circuit Low Input

DTC P0480 - COOLING FAN RELAY 1 CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Radiator fan does not operate properly.
- Overheating

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer To How To Clear Diagnostic Trouble Codes.

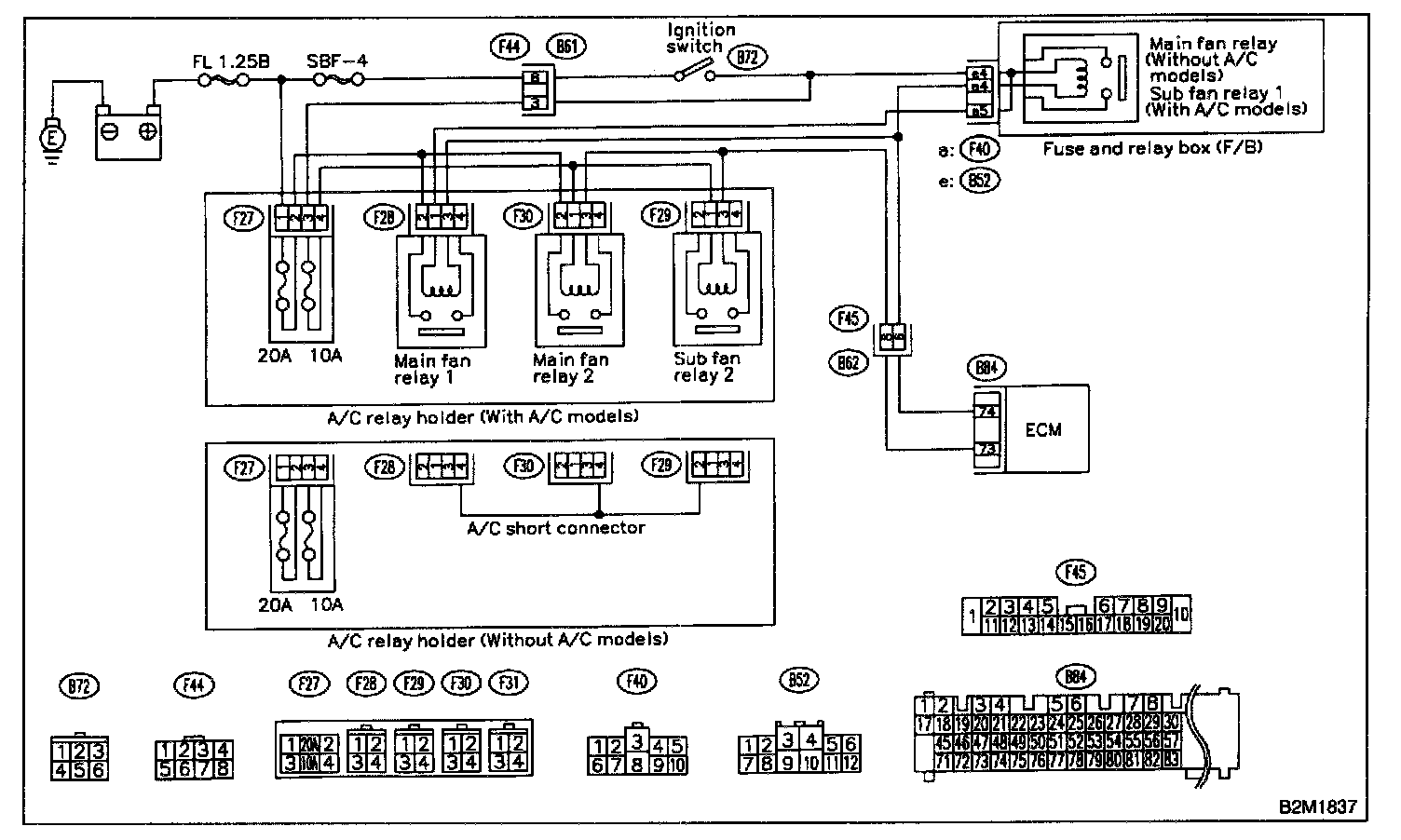

WIRING DIAGRAM

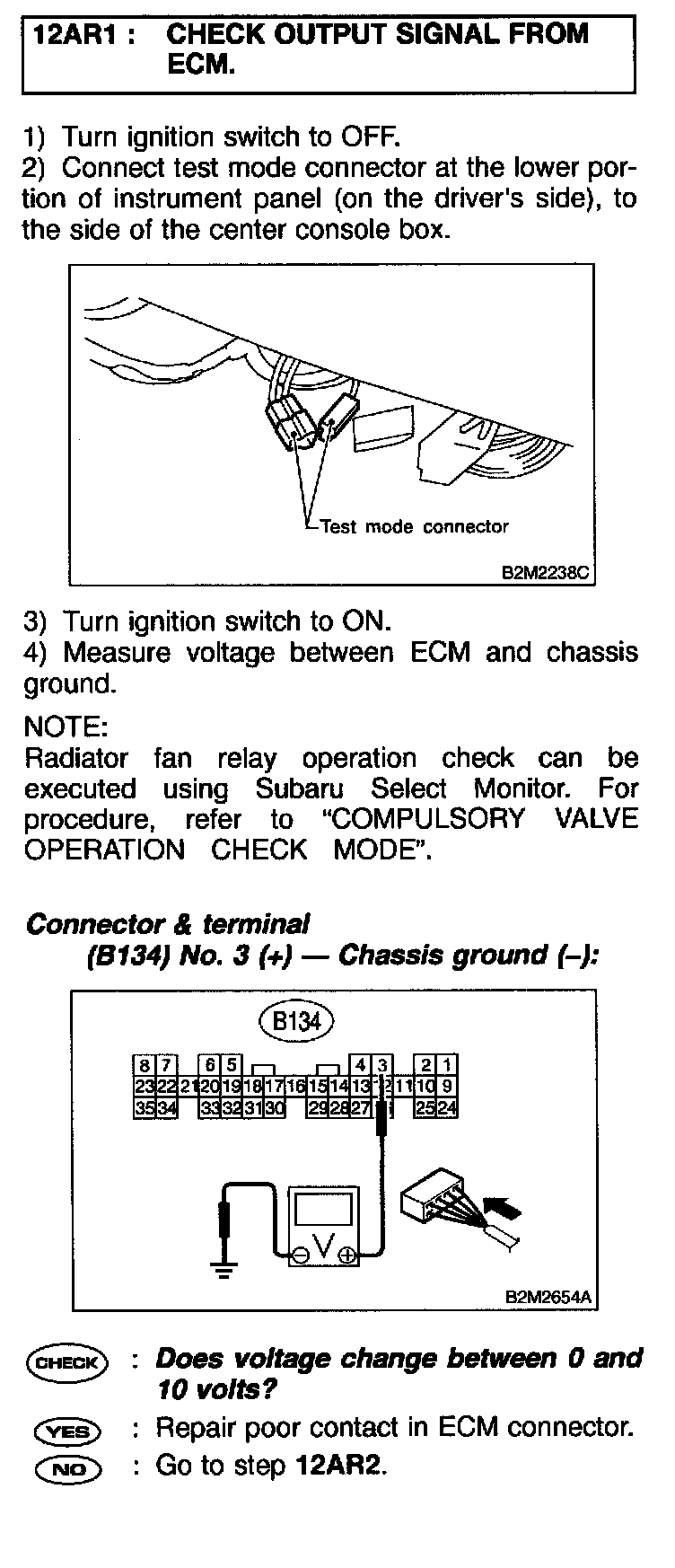

Step 12AR1:

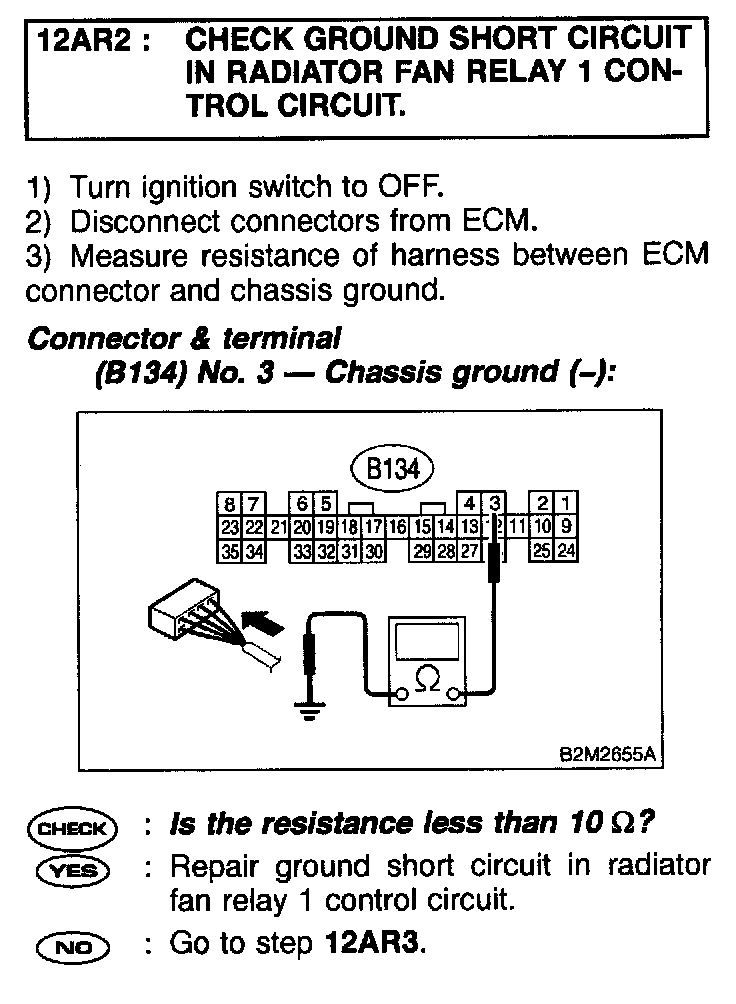

Step 12AR2:

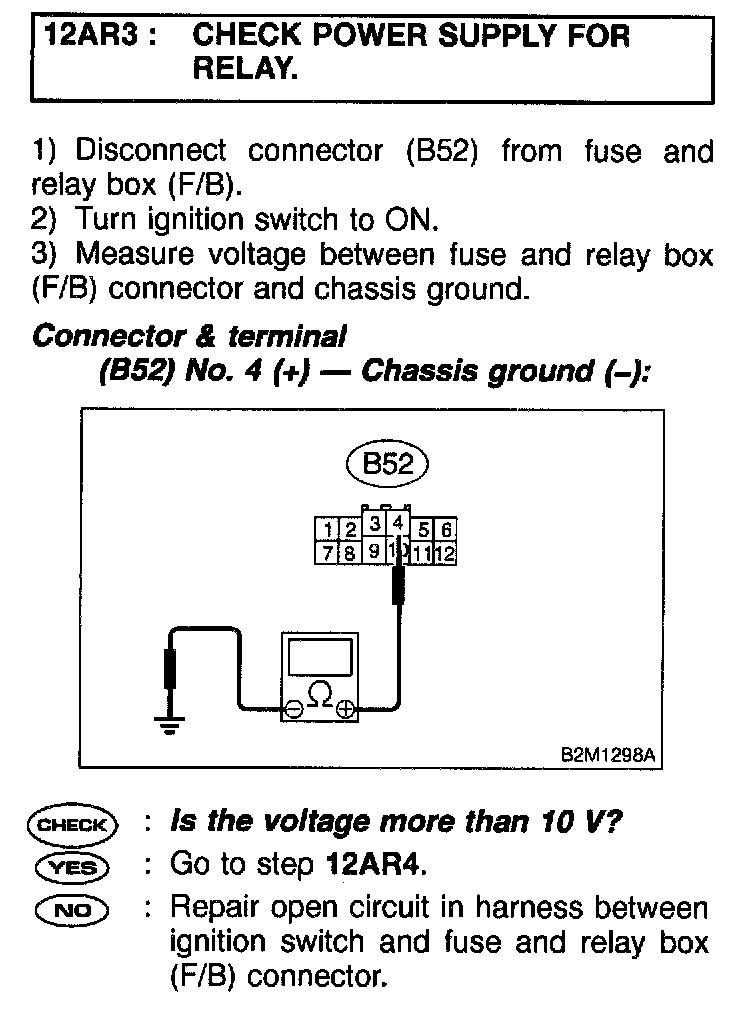

Step 12AR3:

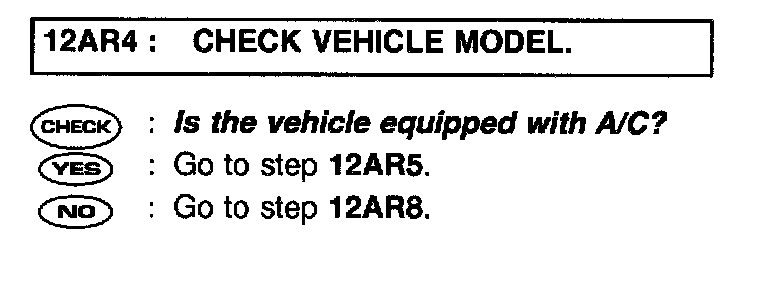

Step 12AR4:

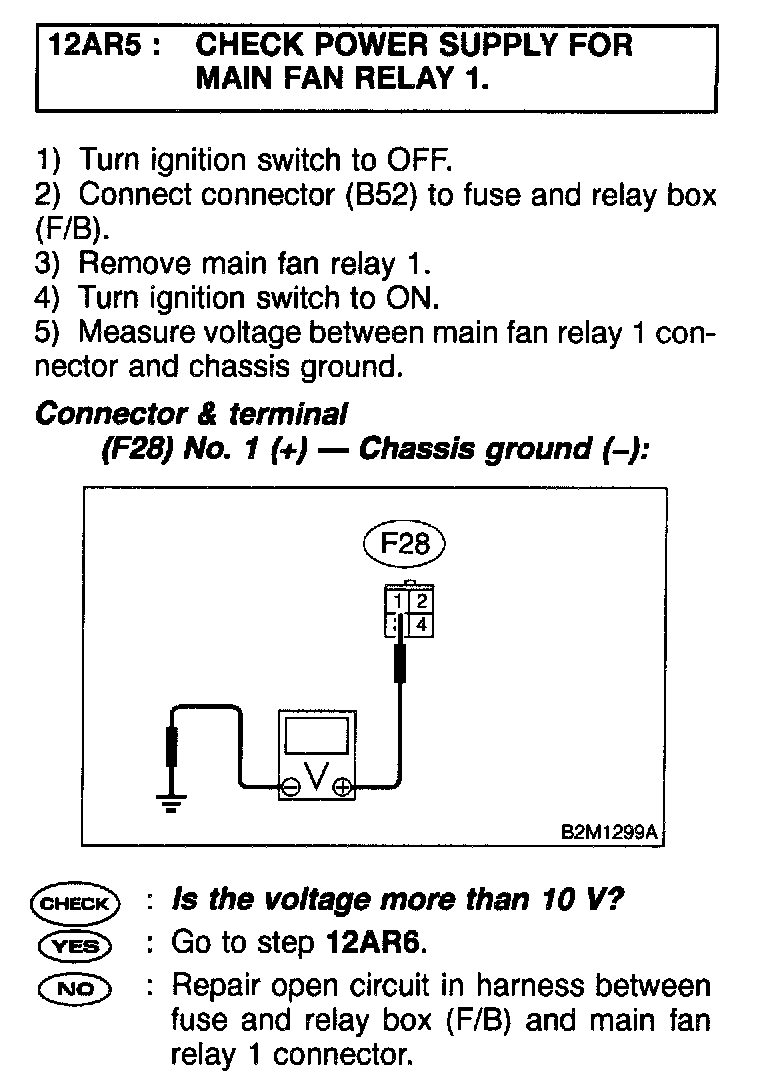

Step 12AR5:

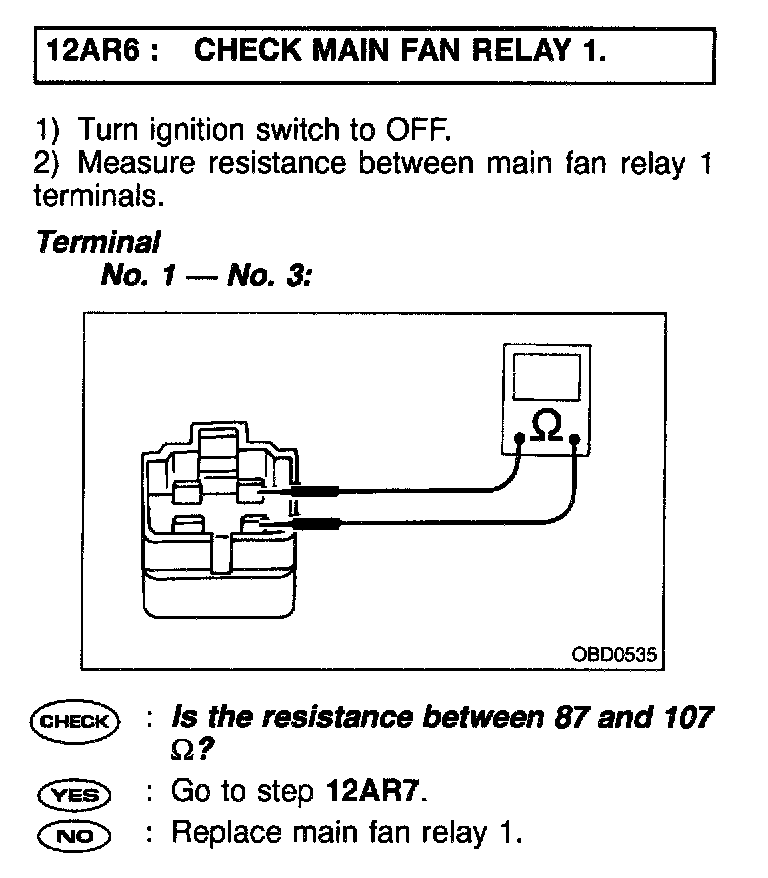

Step 12AR6:

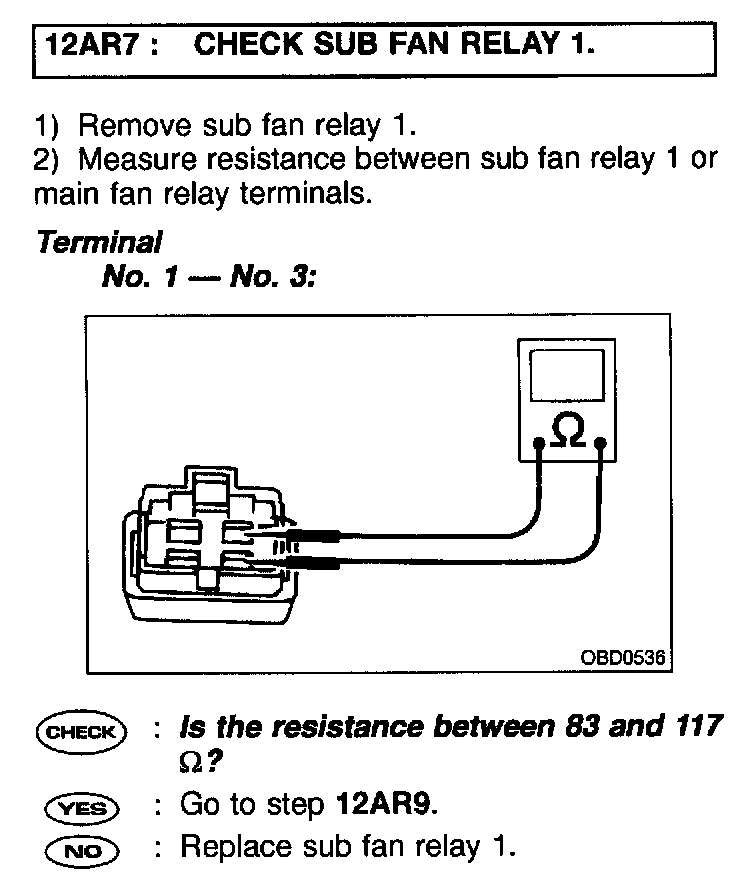

Step 12AR7:

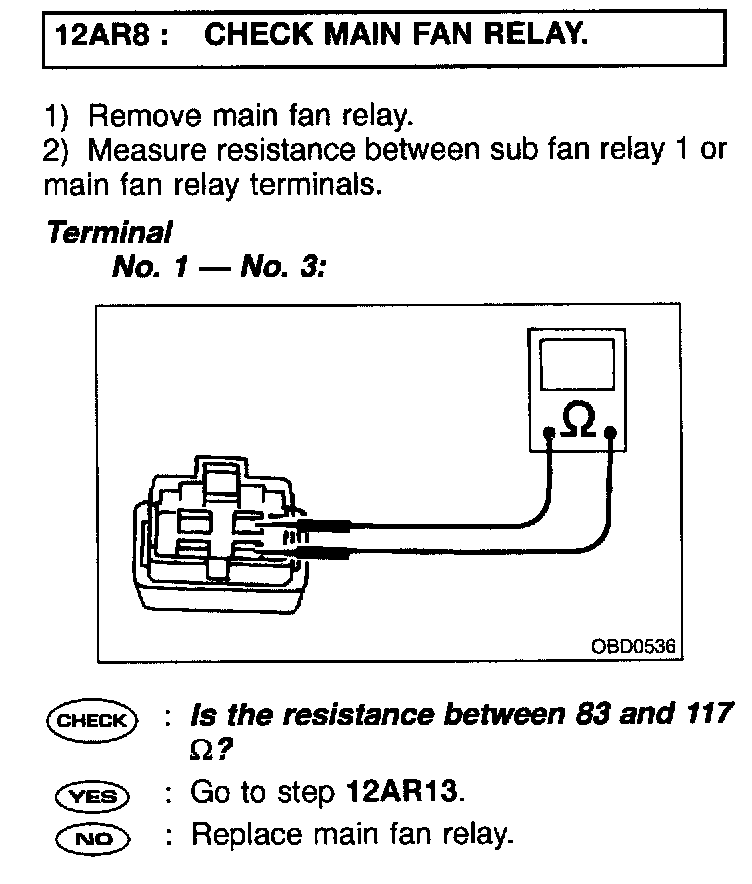

Step 12AR8:

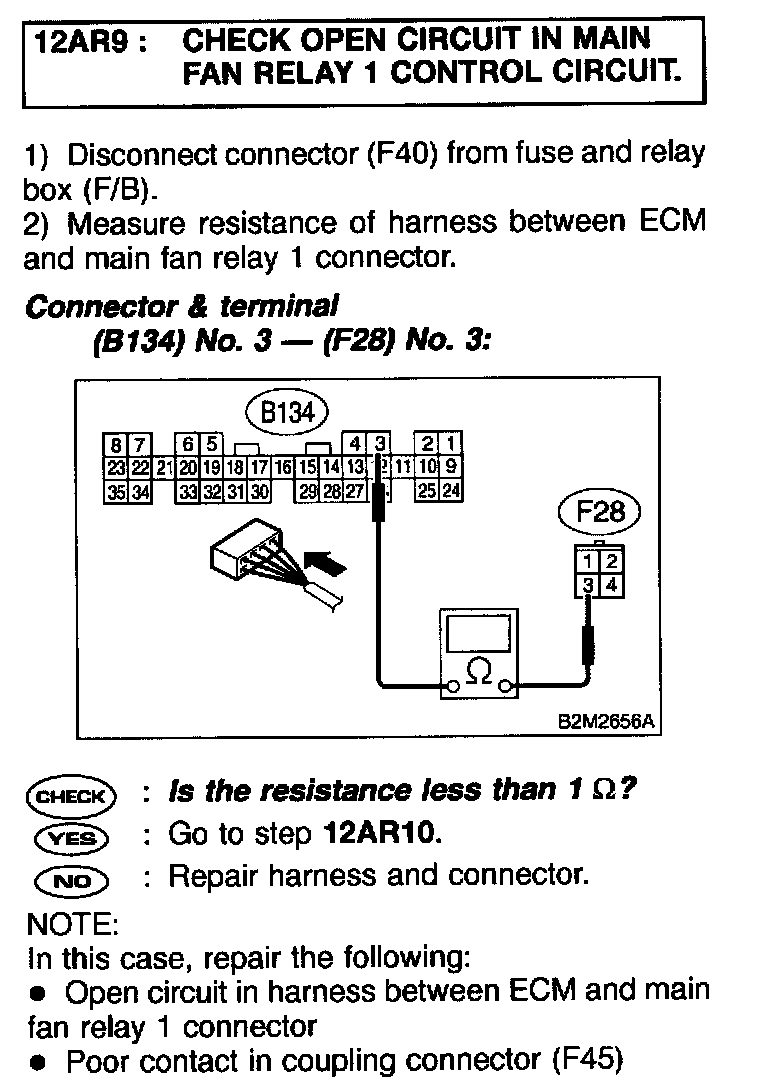

Step 12AR9:

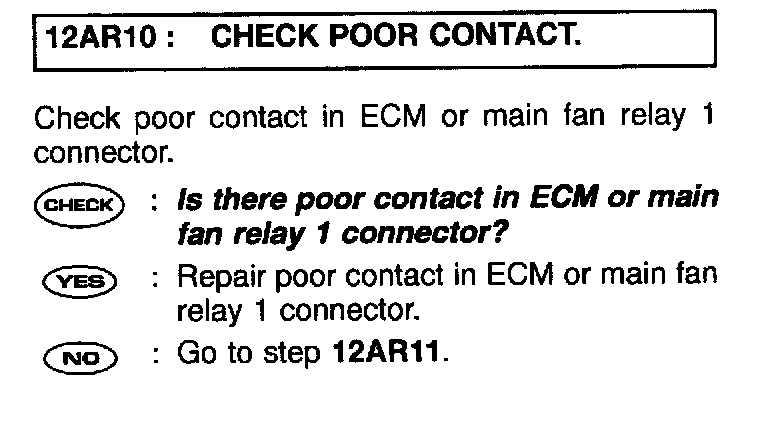

Step 12AR10:

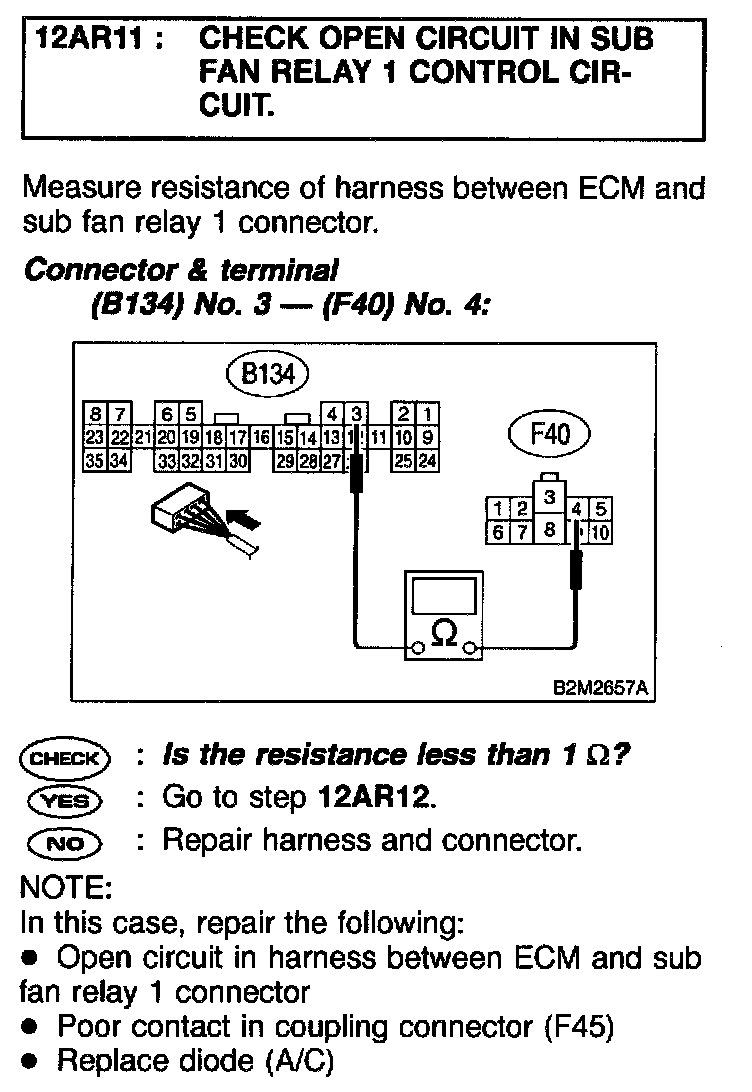

Step 12AR11:

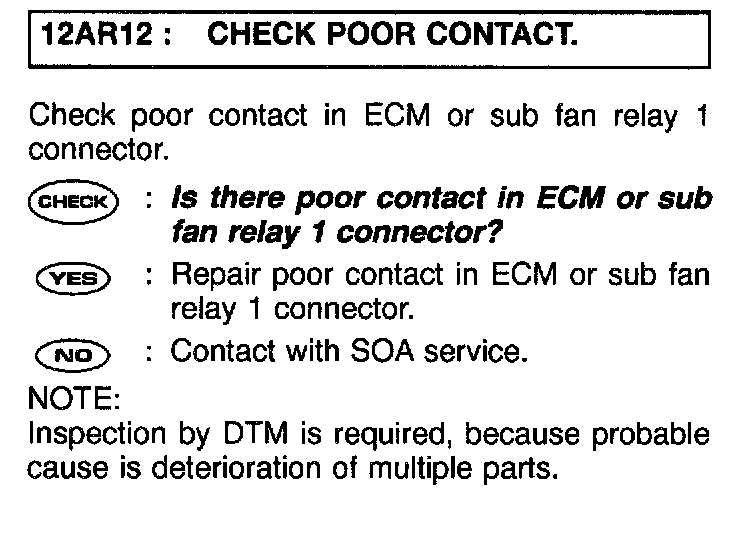

Step 12AR12:

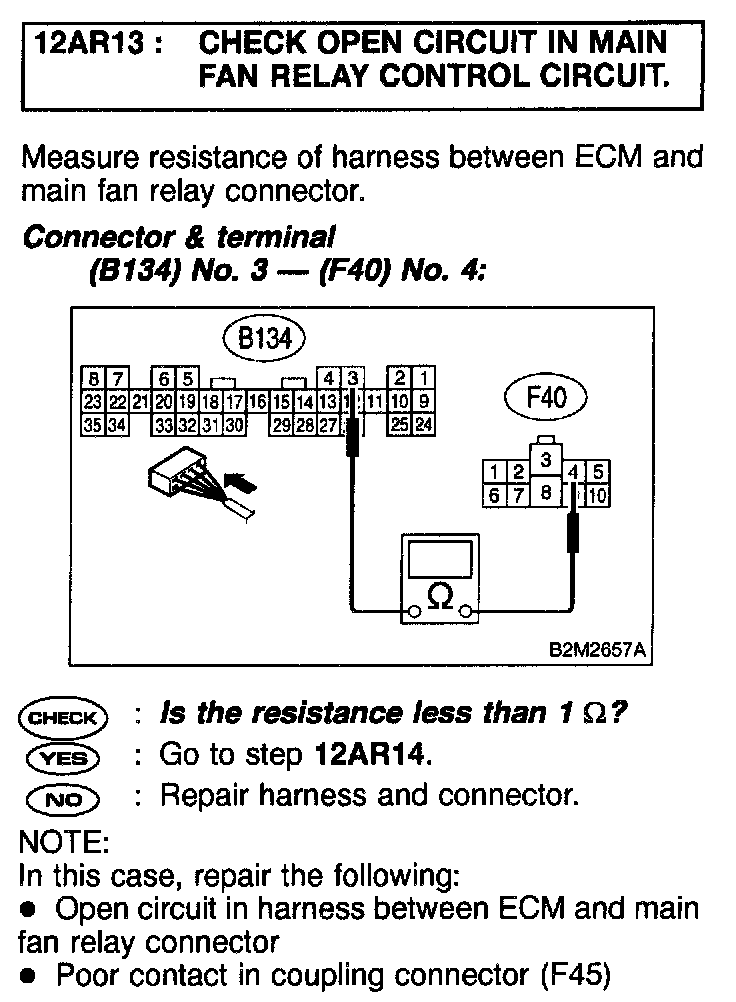

Step 12AR13:

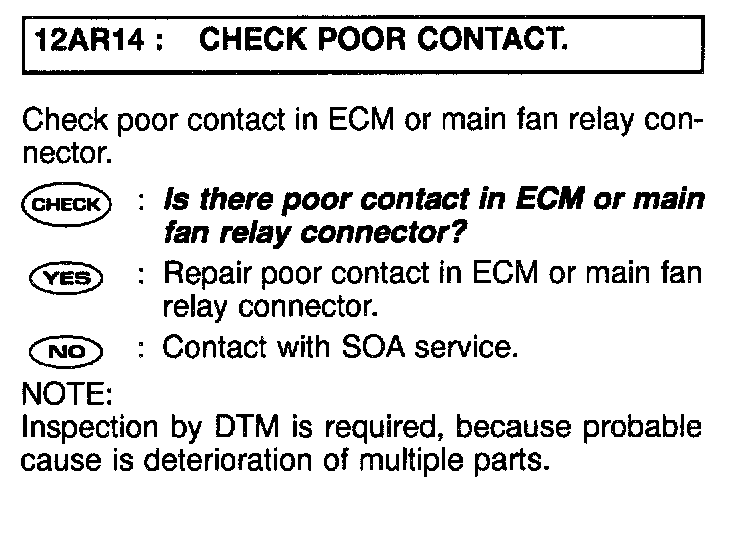

Step 12AR14:

PROCEDURES
