Cooling Fan Relay 1 Circuit High Input

DTC P1520 - COOLING FAN RELAY 1 CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Radiator fan does not operate properly.
- Overheating

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer To How To Clear Diagnostic Trouble Codes.




WIRING DIAGRAM

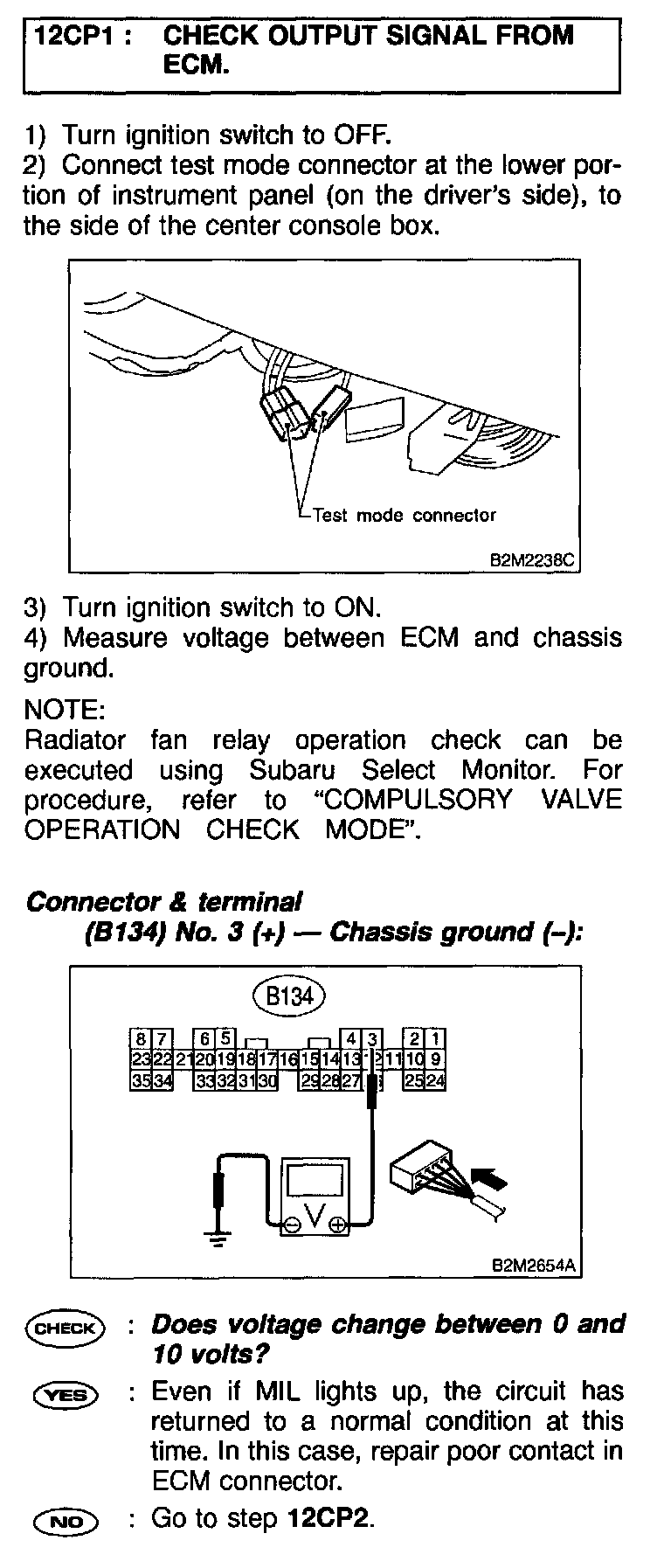

Step 12CP1:

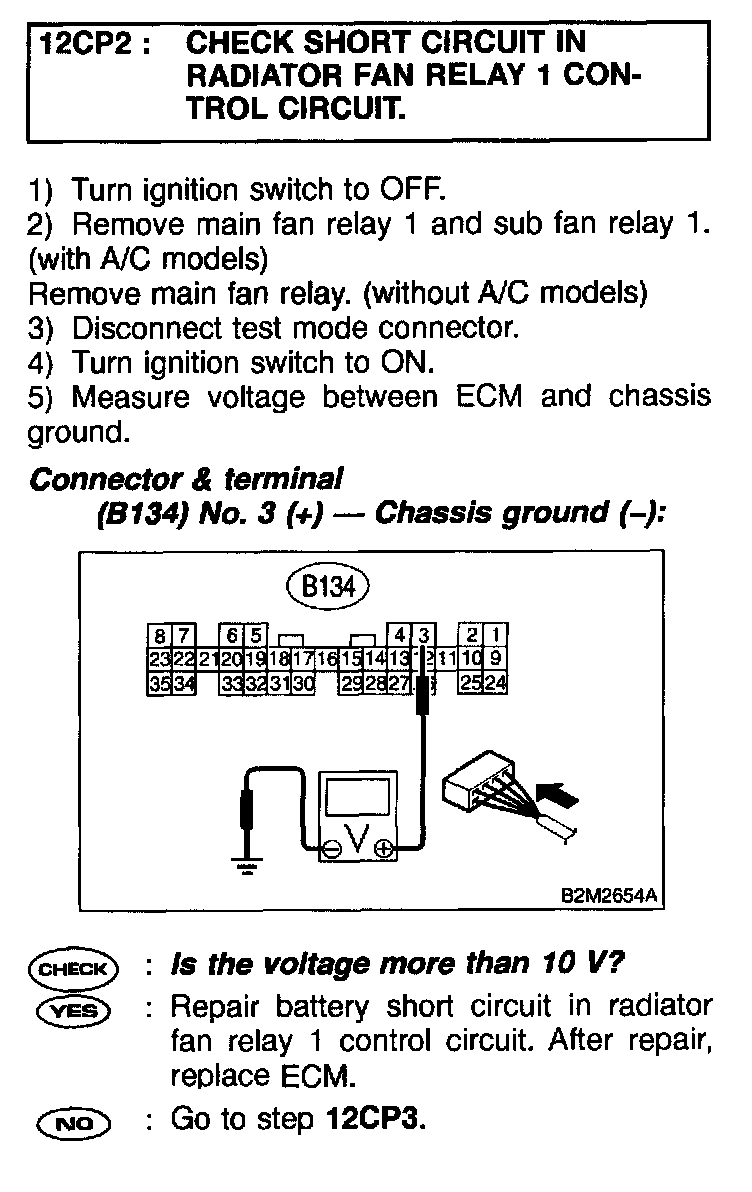

Step 12CP2:

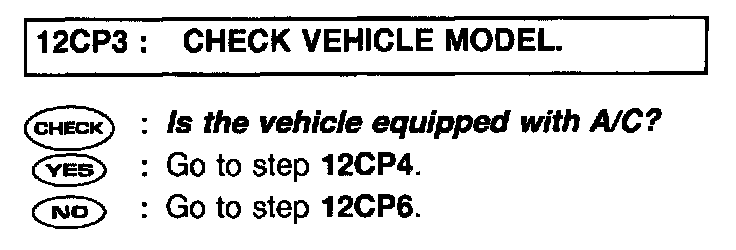

Step 12CP3:

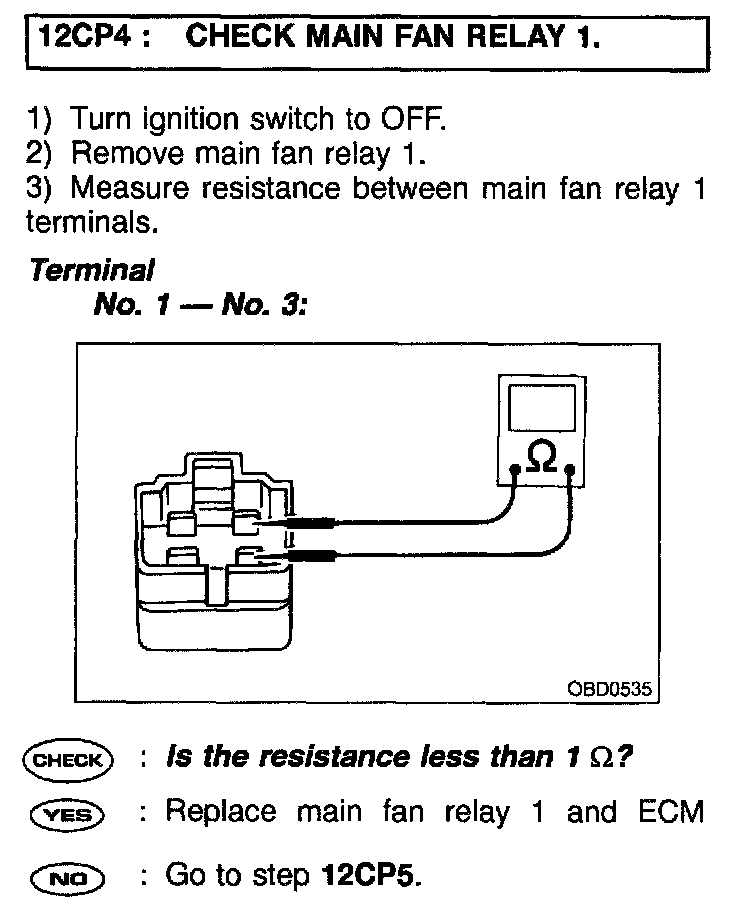

Step 12CP4:

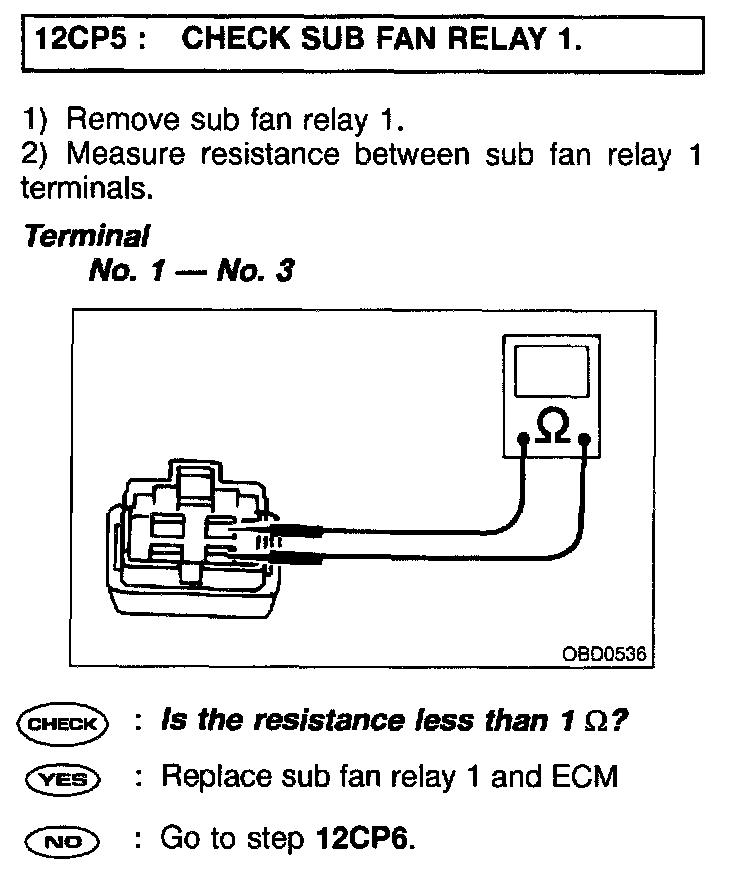

Step 12CP5:

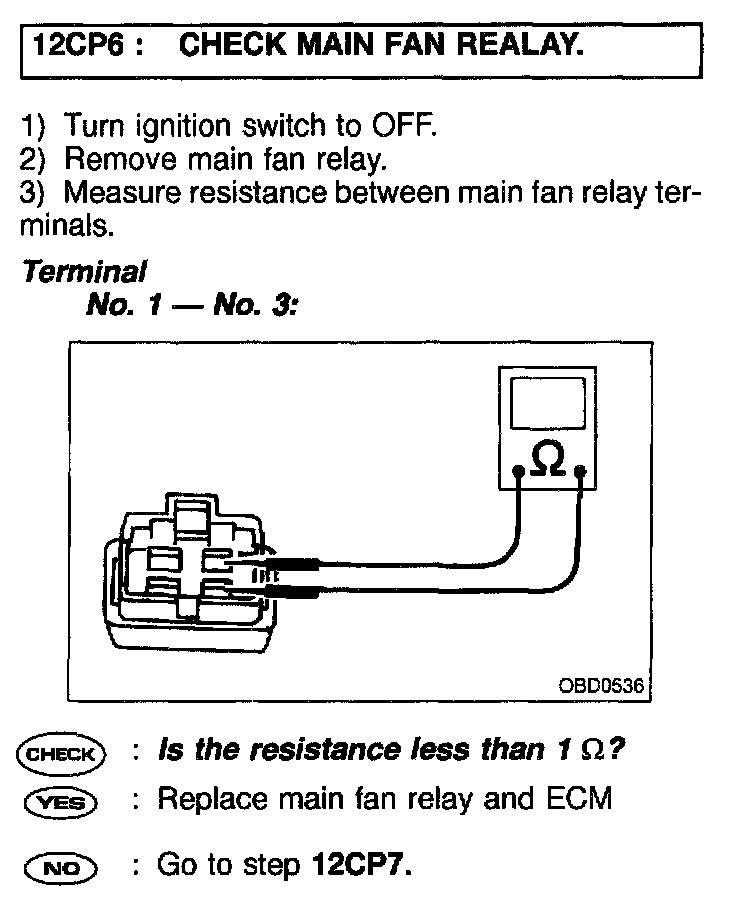

Step 12CP6:

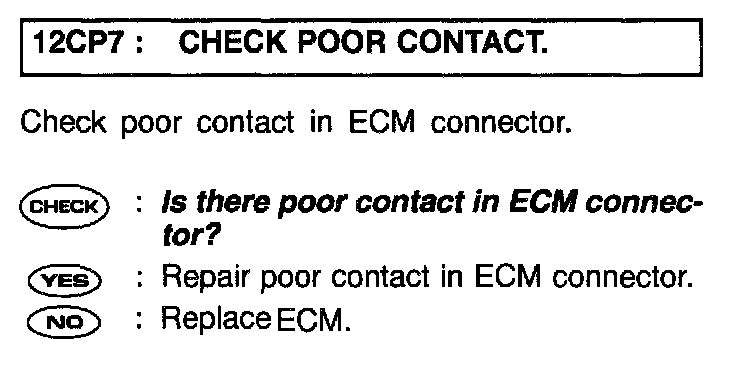

Step 12CP7:

PROCEDURES
