Cooling Fan Function Problem

DTC P0483 - COOLING FAN FUNCTION PROBLEM

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

TROUBLE SYMPTOM:
- Occurrence of noise
- Overheating

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE. Refer to How to Clear Diagnostic Trouble Codes.

NOTE: If the vehicle,with the engine idling,is placed very close to a wall or another vehicle,preventing normal cooling function,the OBD system may detect malfunction.

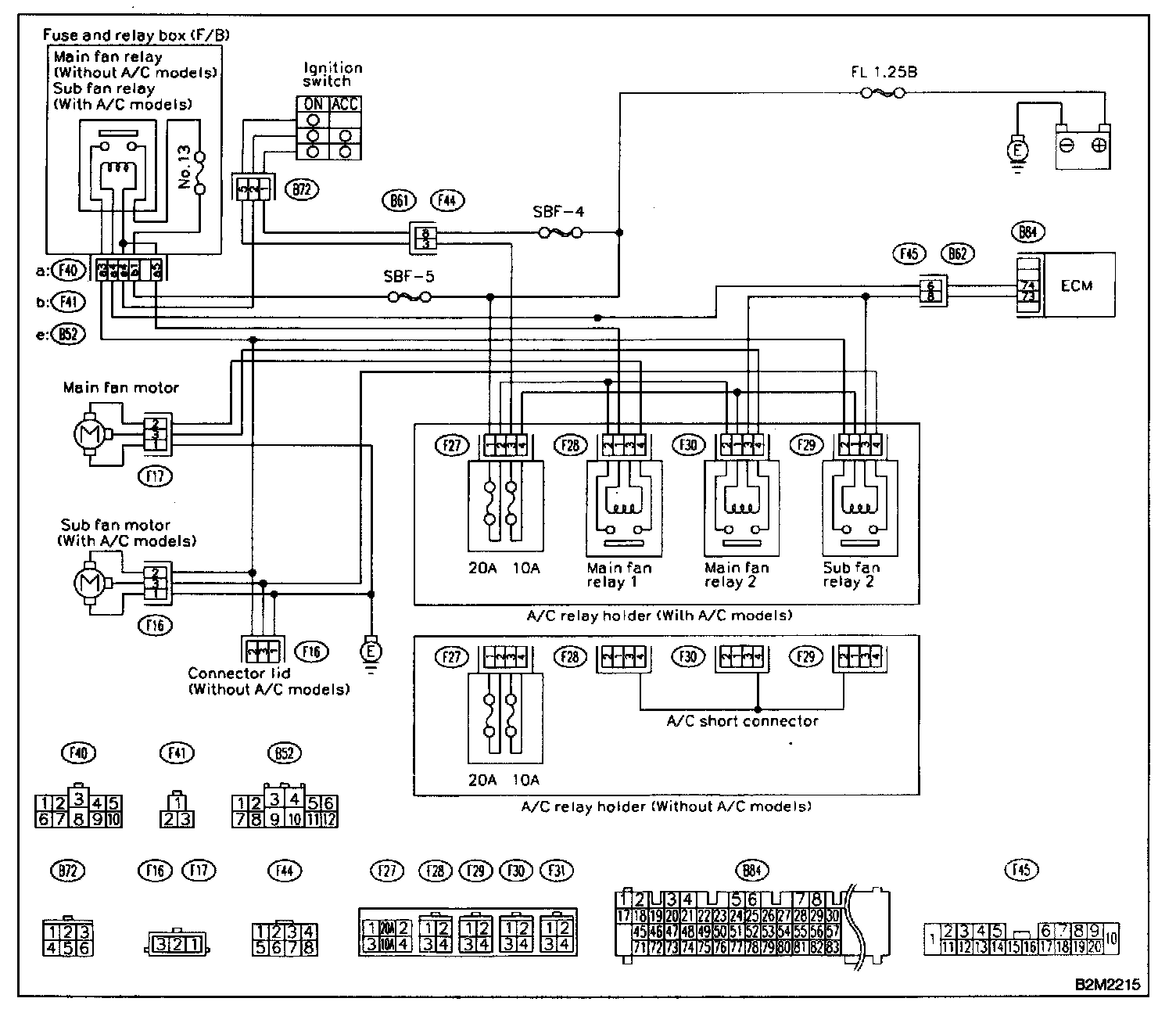

WIRING DIAGRAM

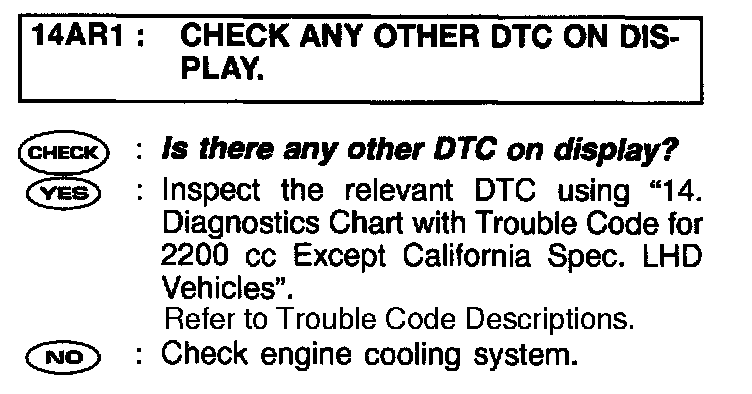

Step 14AR1:

PROCEDURES
