Cruise Control Vacuum Hose
Cruise Control Vacuum Hose

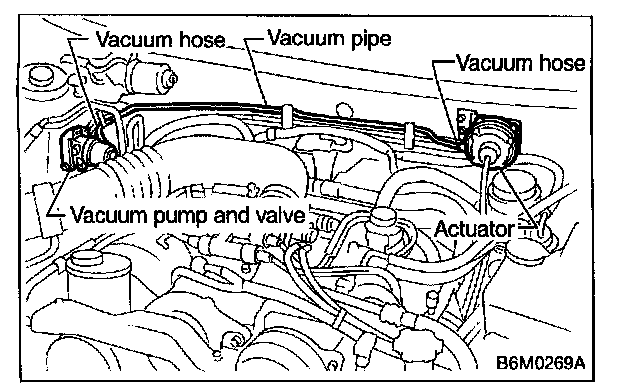

VACUUM HOSE AND PIPE
Check vacuum hose and pipe (which connects actuator and vacuum pump) for disconnection or cracks.
