Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly

Axle Shaft Assembly

FRONT AXLE

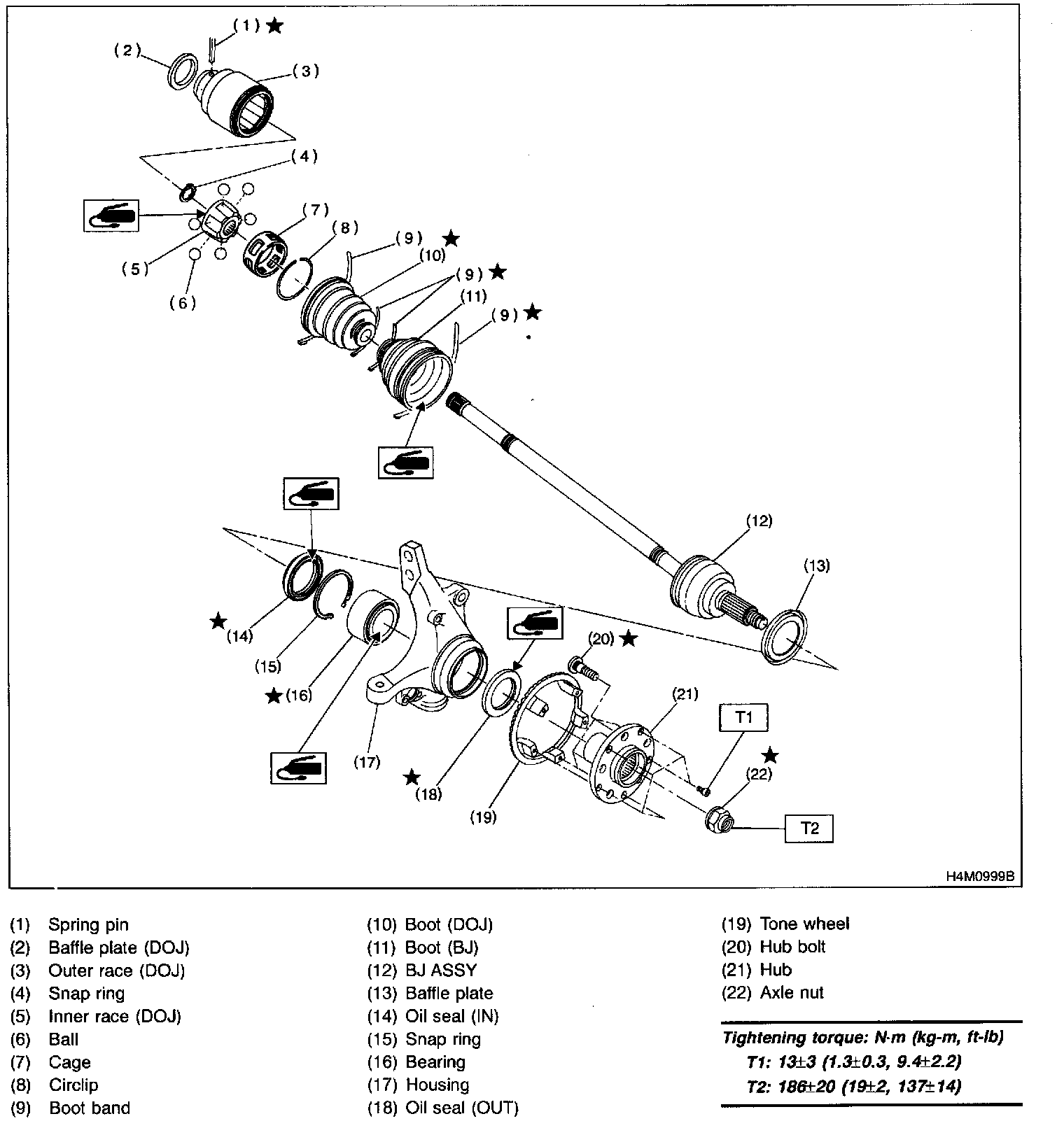

Except AWD AT Model

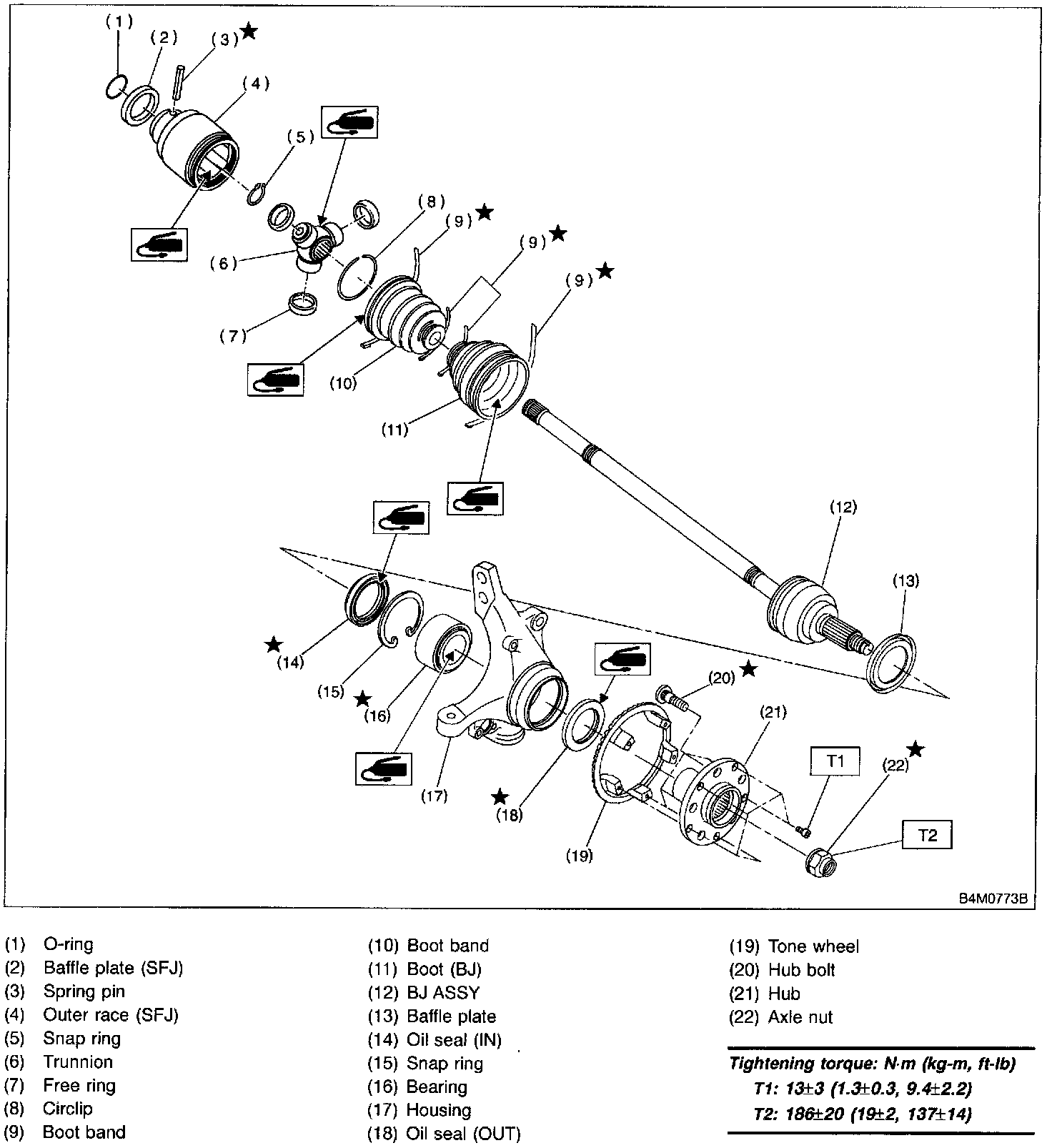

AWD AT Model

REAR AXLE

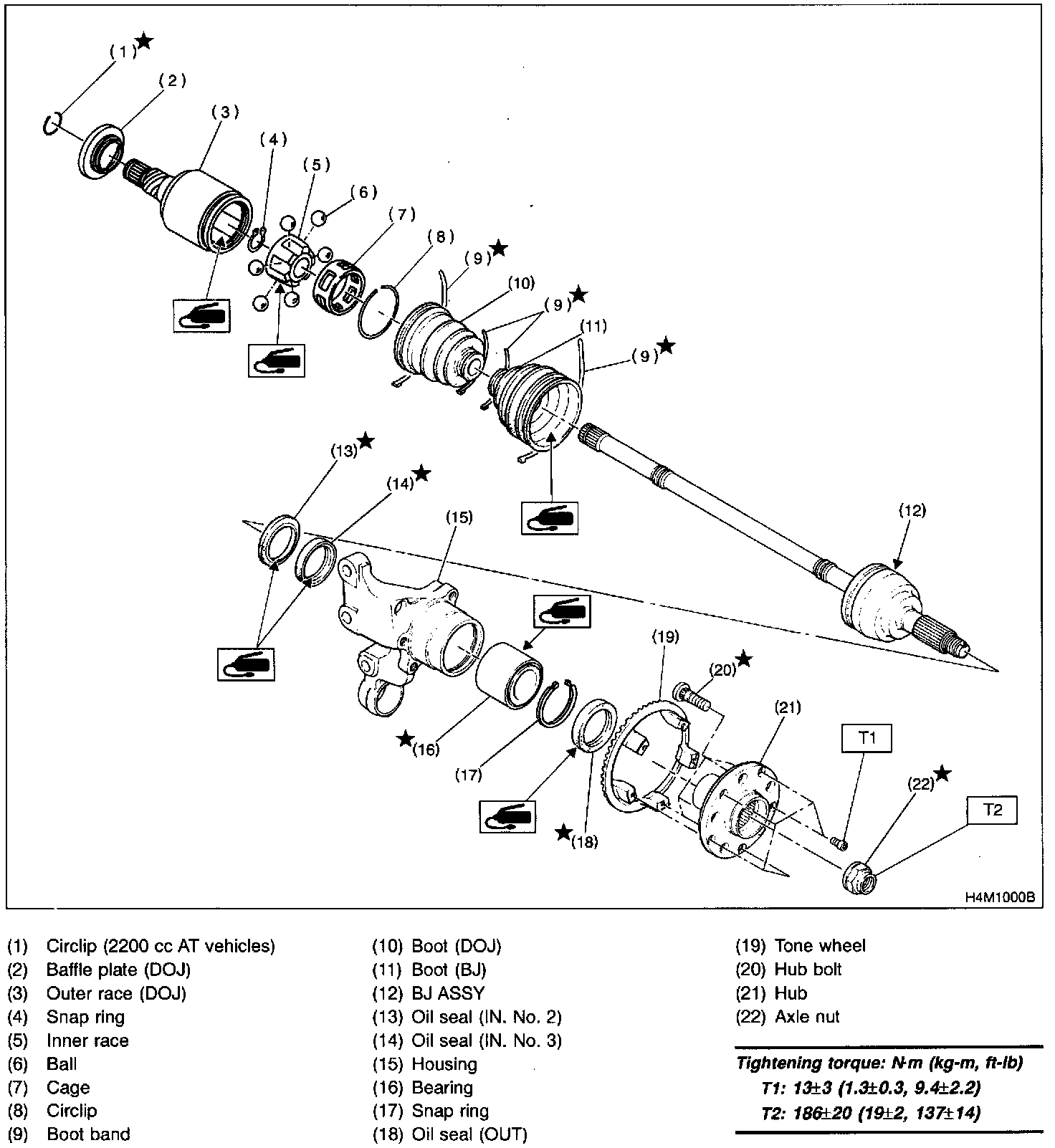

AWD Model
