Home >> Subaru >> 1999 >> Legacy Outback AWD F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Auxiliary Power Outlet >> Multiple Power Socket System (Option)

Multiple Power Socket System (Option)

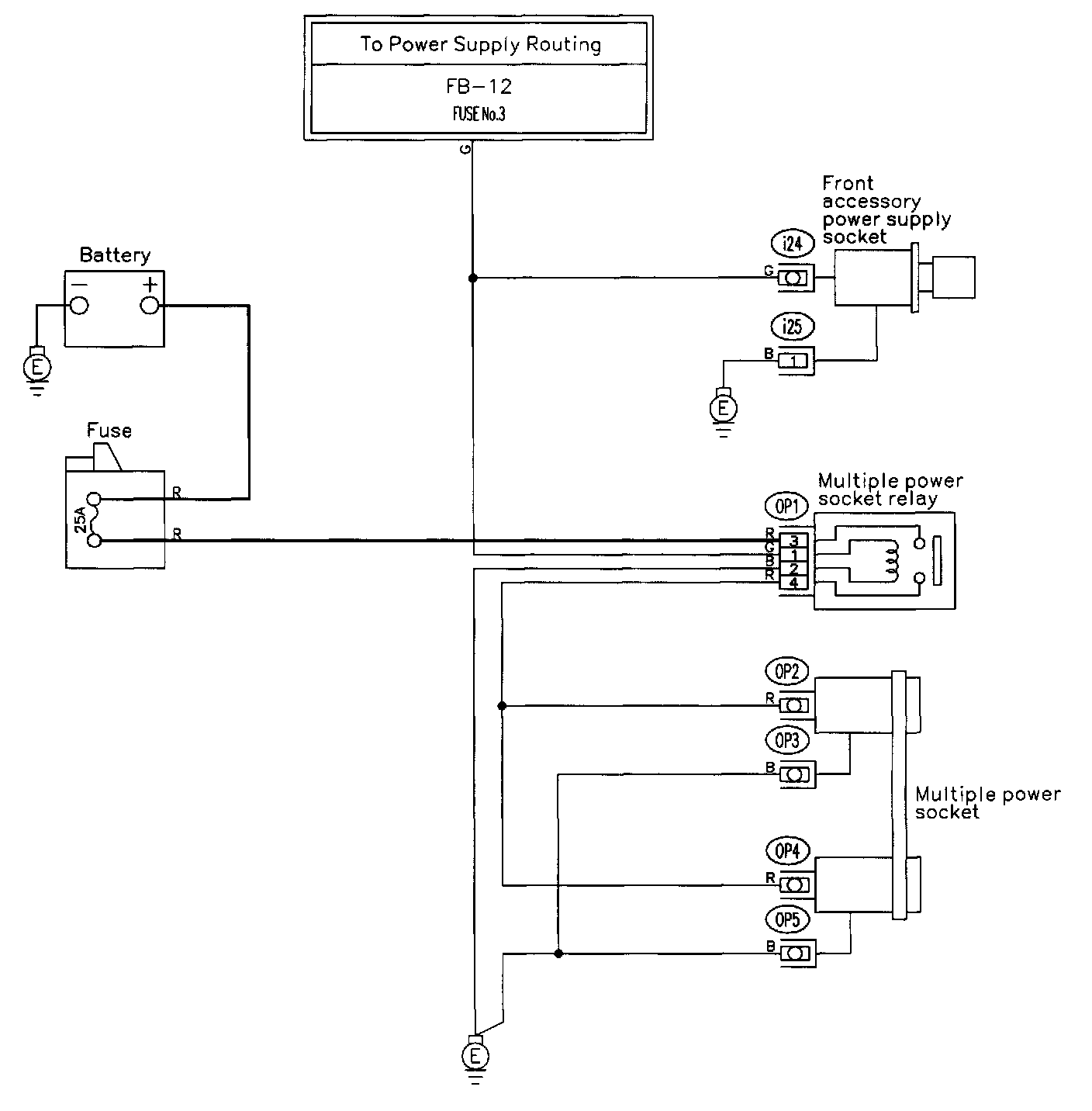

Circuit Diagrams

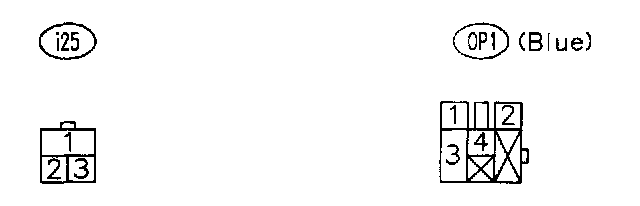

Circuit Connectors
