Fuel Gauge

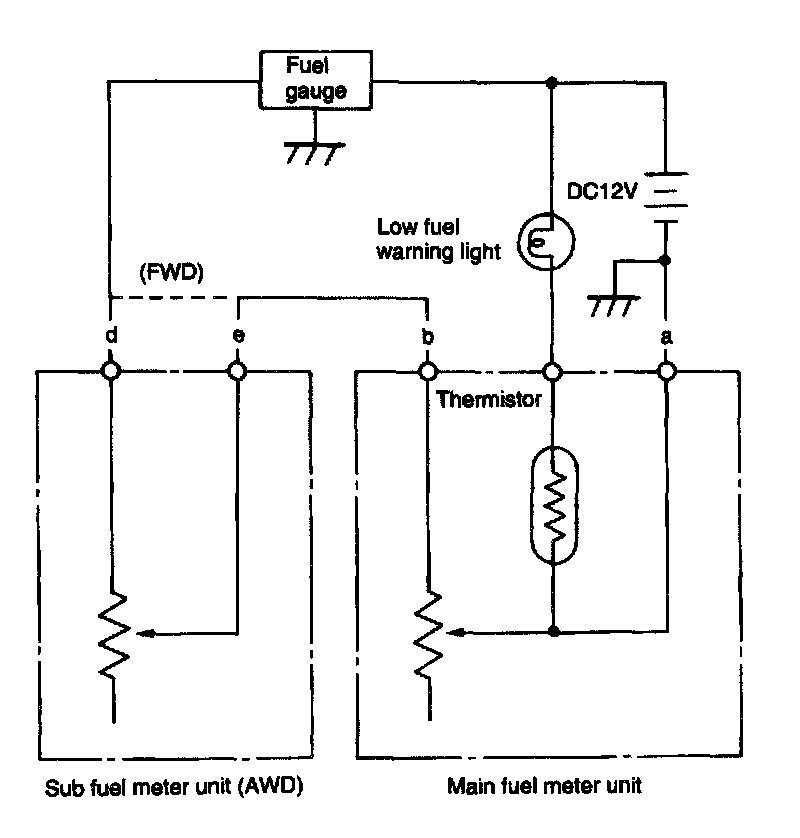

Fuel Gauge Circuit Schematic:

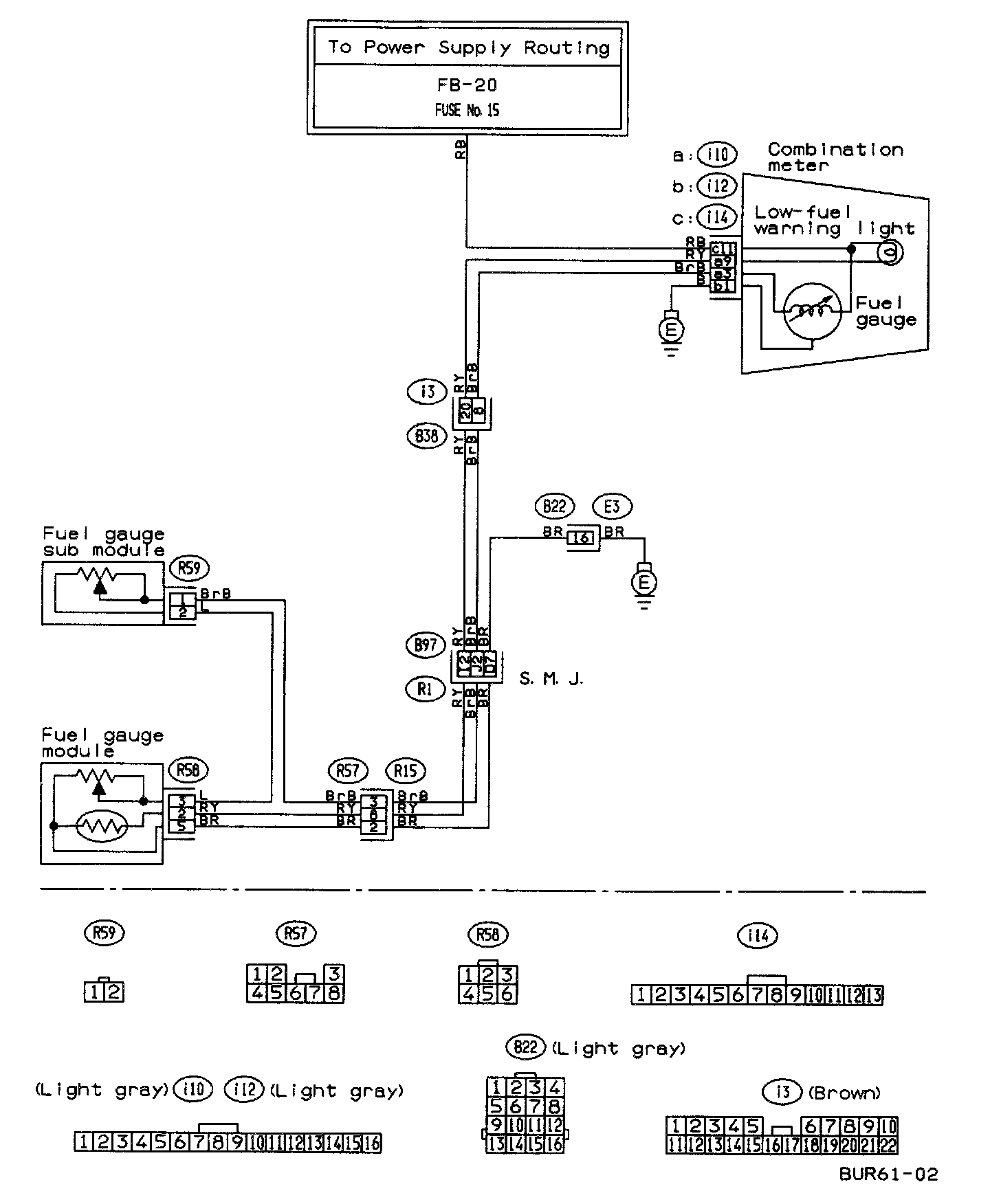

Fuel Gauge System (LHD Model) Circuit:



Fuel Gauge System (RHD Model) Circuit:
