Brake Warning Indicator
Brake Warning Indicator

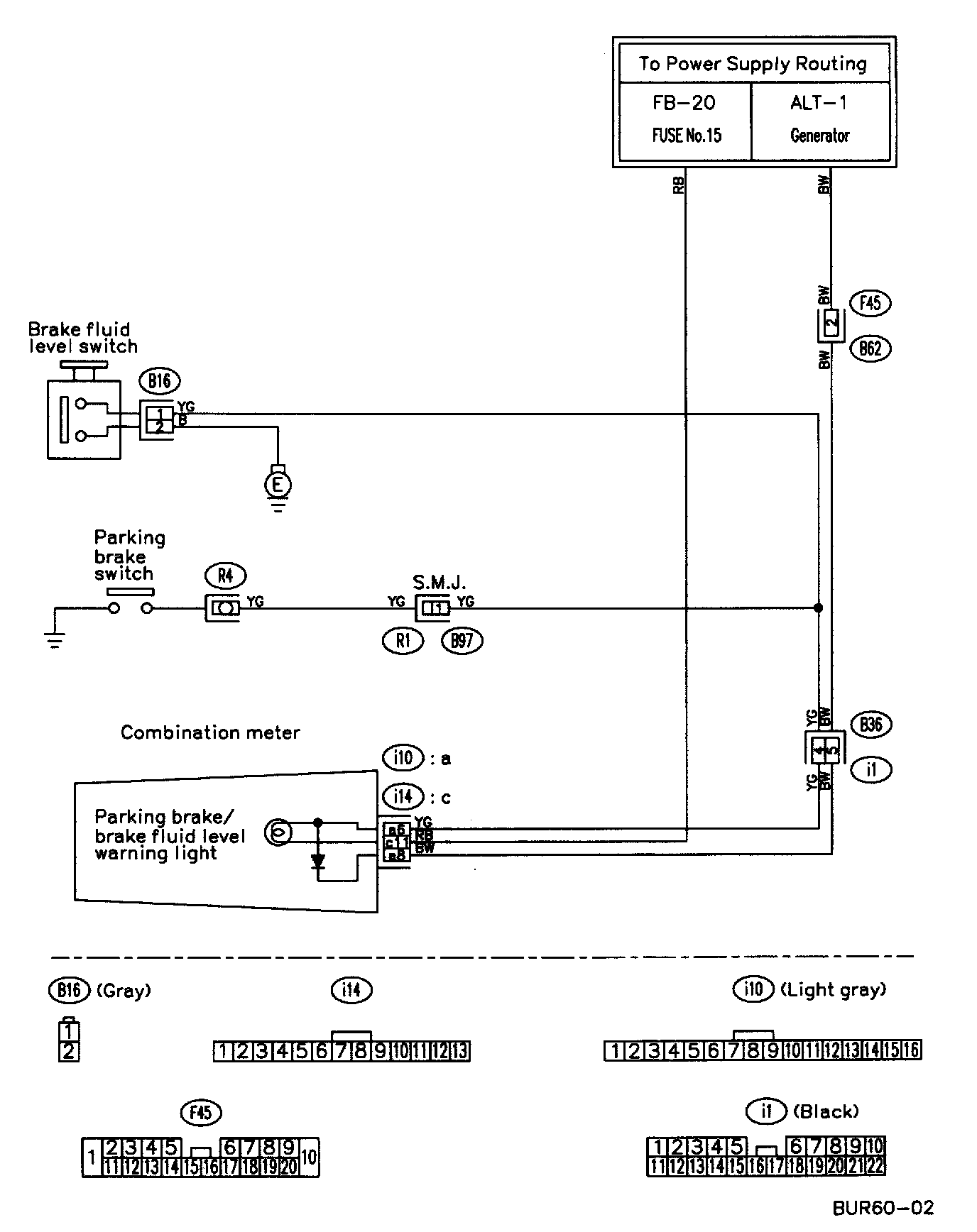

Parking Brake And Brake Fluid Level Warning System (LHD Model) Circuit:

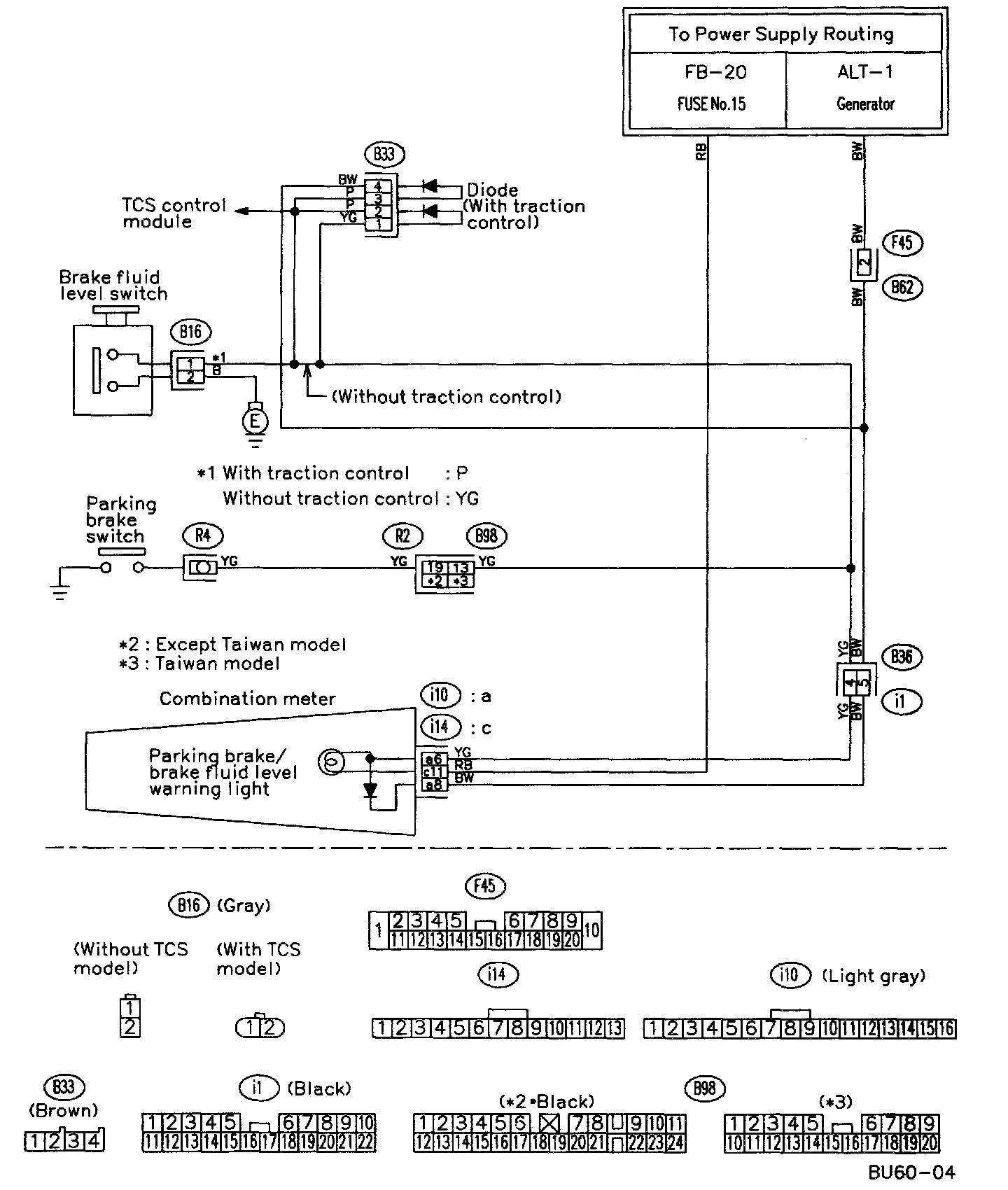

Parking Brake And Brake Fluid Level Warning System (RHD Model) Circuit:
