Rear End Wiring Harness

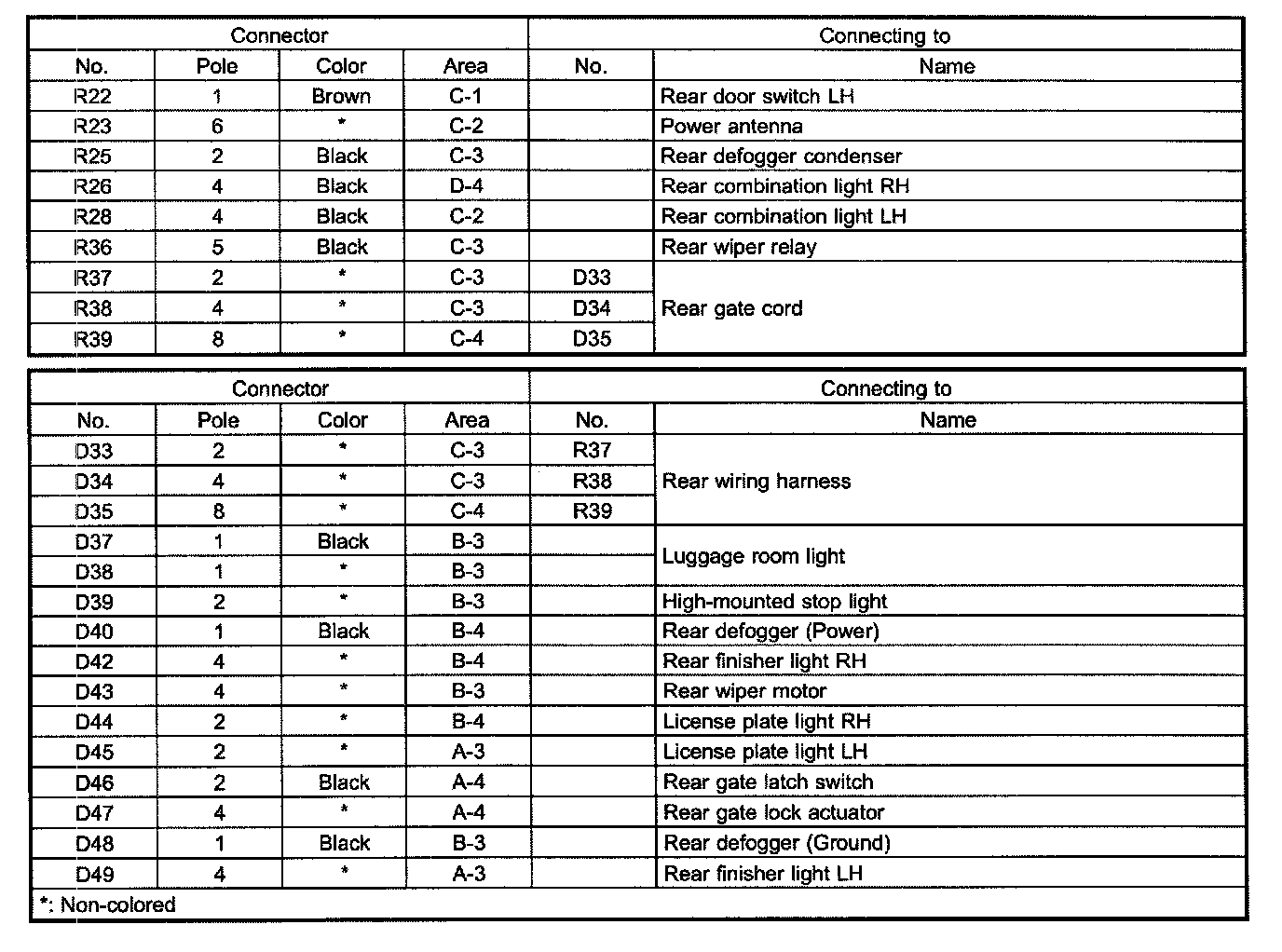

Rear End Wiring Harness Connector Location (RHD Wagon) Legend:

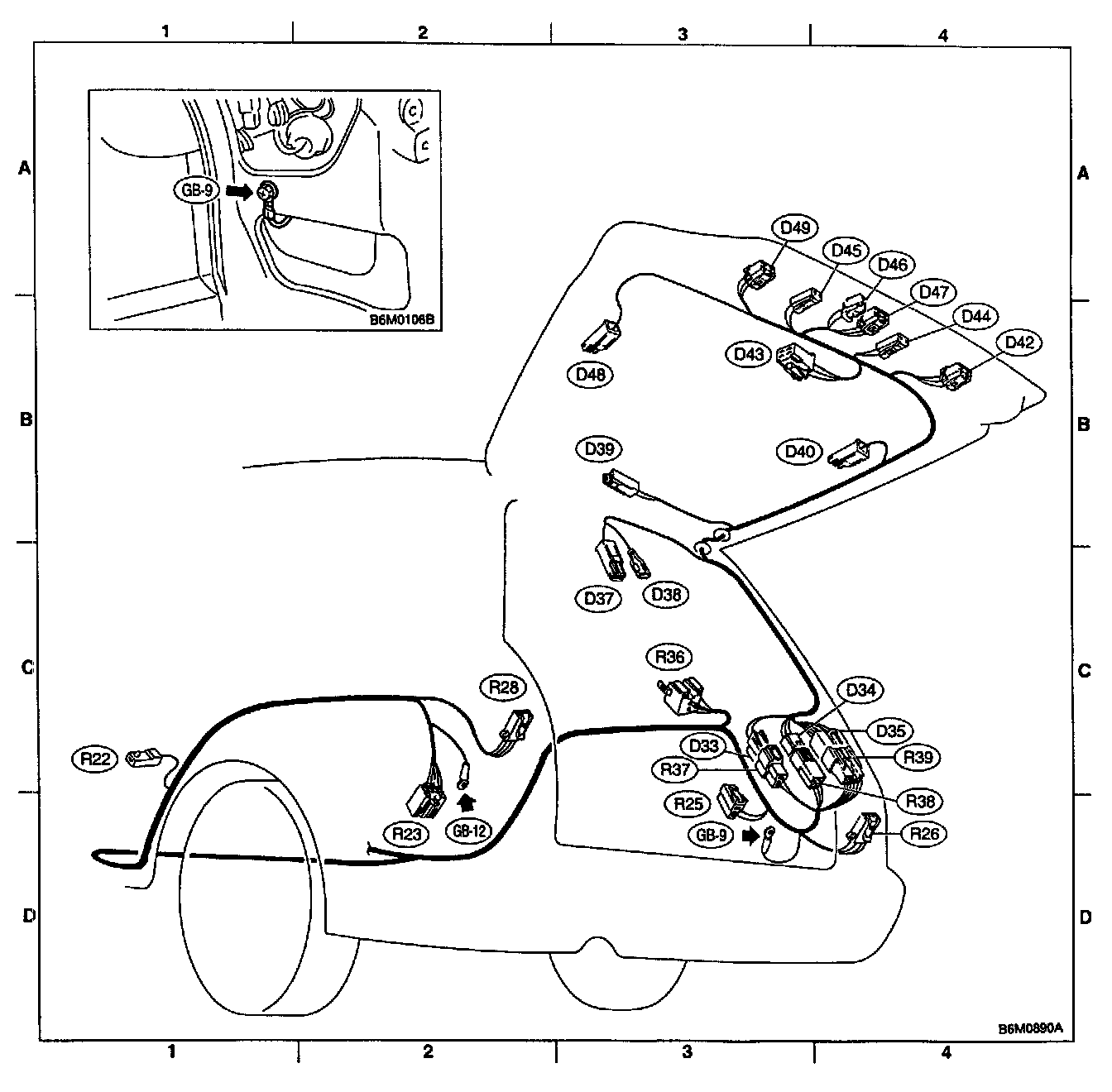

Rear End Wiring Harness Connector Location (RHD Wagon) Diagram:
