Legacy Outback AWD F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Engine Wiring Harness and Transmission Cord
Engine Wiring Harness and Transmission Cord

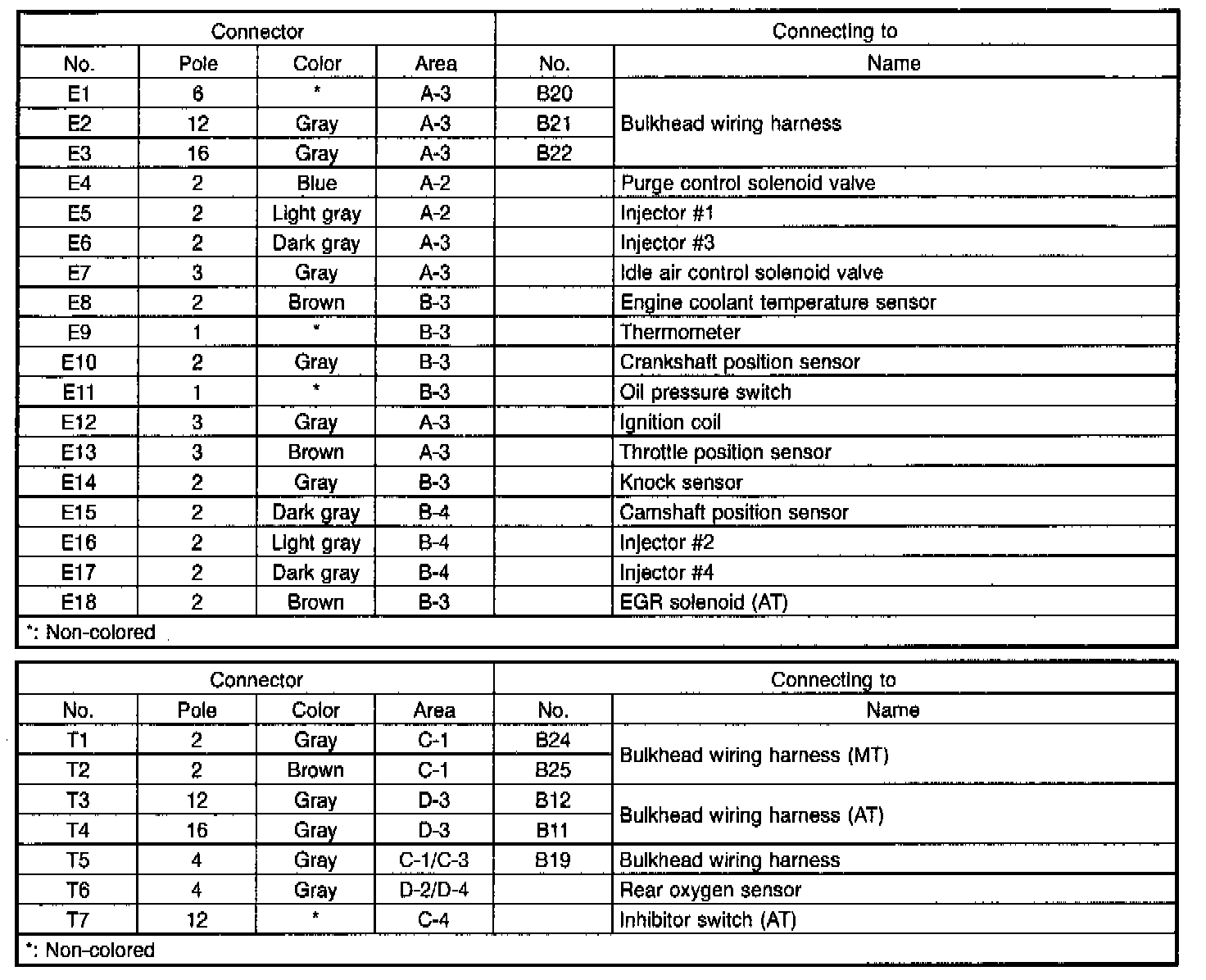

List Of Items

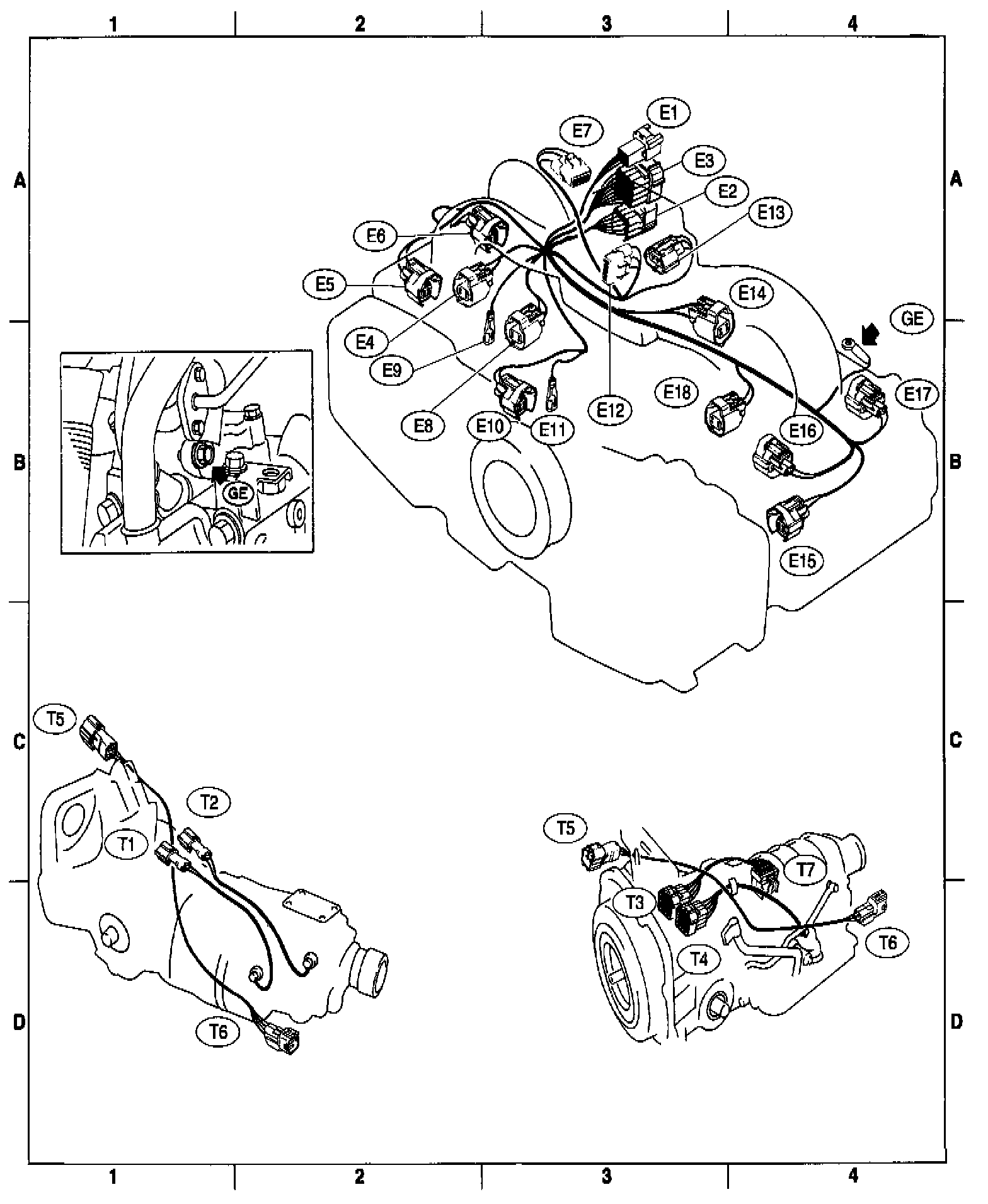

Locations
