Brake Hose/Line: Testing and Inspection

INSPECTION

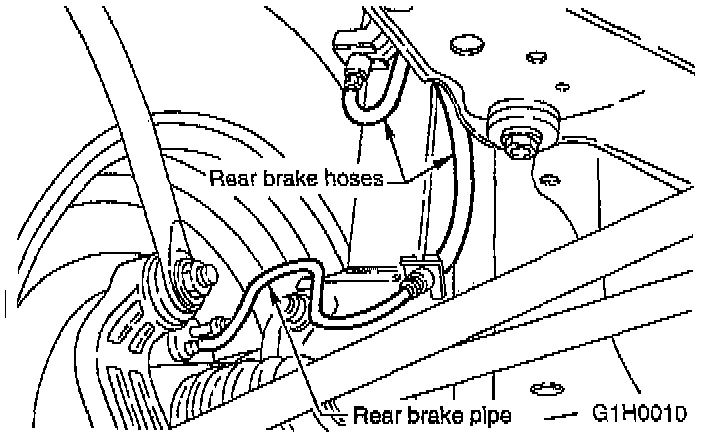

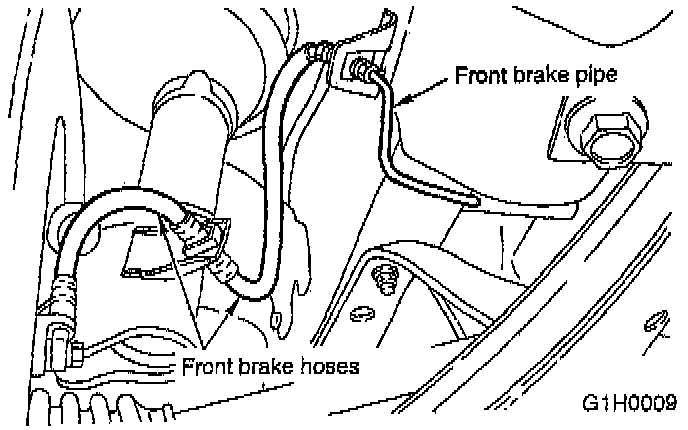

1. Check scratches, swelling, corrosion and/or traces of fluid leakage on brake hoses or pipe joints.
2. Check the possibility of adjacent parts interfering with brake pipes/hoses during driving, and loose connections/clamps.
3. Check any trace of fluid leakage, scratches, etc. on master cylinder, wheel cylinder, pressure control valve and hill-holder.

NOTE: When the brake fluid level in the reservoir tank is lower than the specified limit, the brake fluid warning light on the combination meter will come on.
