Brake Line

BRAKE HOSE AND PIPE

WARNING: SUPPLEMENTAL RESTRAINT SYSTEM "AIRBAG"
- Airbag system wiring harness is routed near the center brake pipe.

CAUTION:
- All Airbag system wiring harness and connectors are colored yellow. Do not use electrical test equipment on these circuit.
- Be careful not to damage Airbag system wiring harness when servicing the center brake pipe.

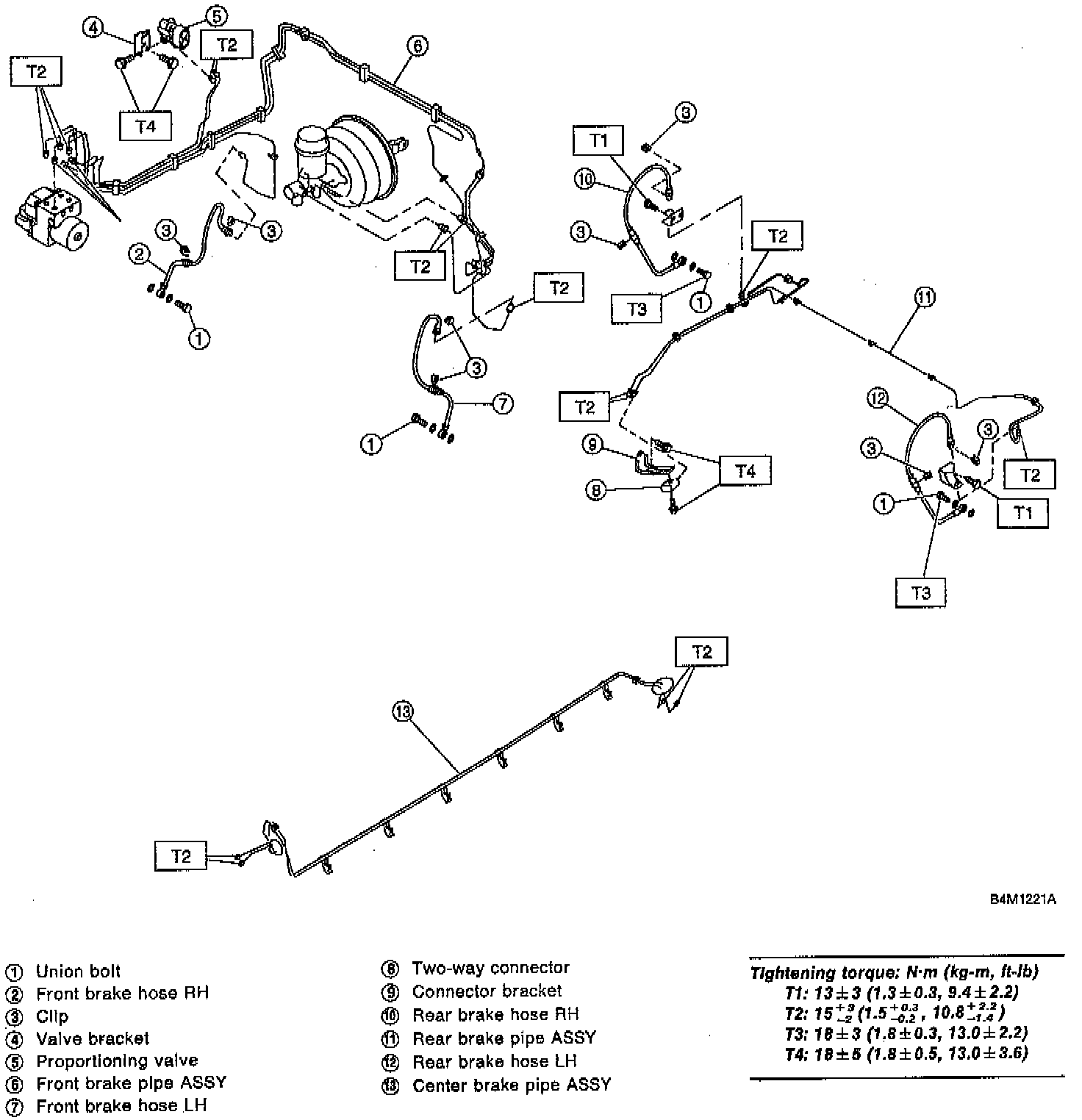

A: REMOVAL AND INSTALLATION

CAUTION:
- When removing and installing the brake pipe, make sure that it is not bent.
- After installing the brake pipe and hose, bleed the air.
- After installing the brake hose, make sure that it does not touch the tire or suspension assembly, etc.
