How to Clear Diagnostic Trouble Codes

Clearing Memory

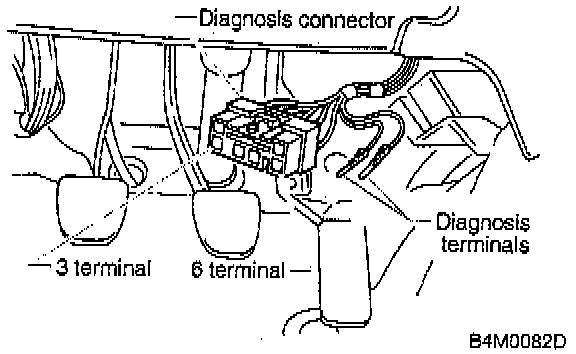

1. After calling up a trouble code, disconnect diagnosis connector terminal 6 from diagnosis terminal.

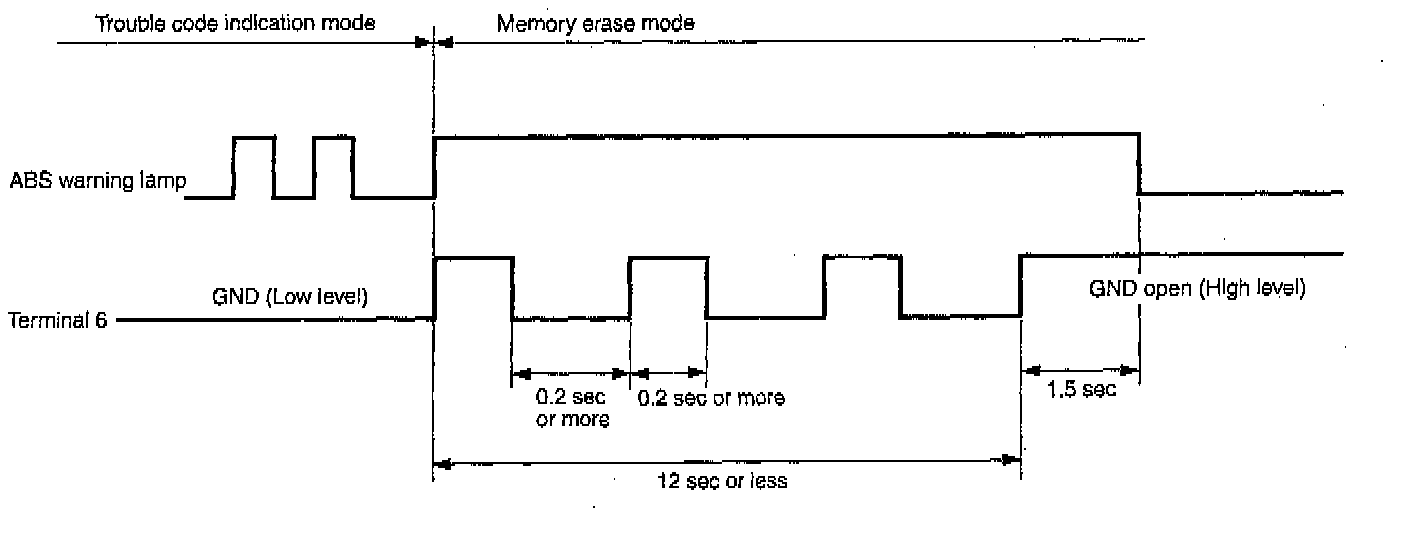

2. Repeat 3 times within approximately 12 seconds; connecting and disconnecting terminal 6 and diagnosis terminal for at least 0.5 seconds each time.

NOTE: After diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
