Description of On-Board Diagnostics

Applicable cartridge of select monitor: No.
24082AA010

NOTE: For basic handling of the select monitor, refer to its
Operation Manual.

A: LIST OF FUNCTION MODE

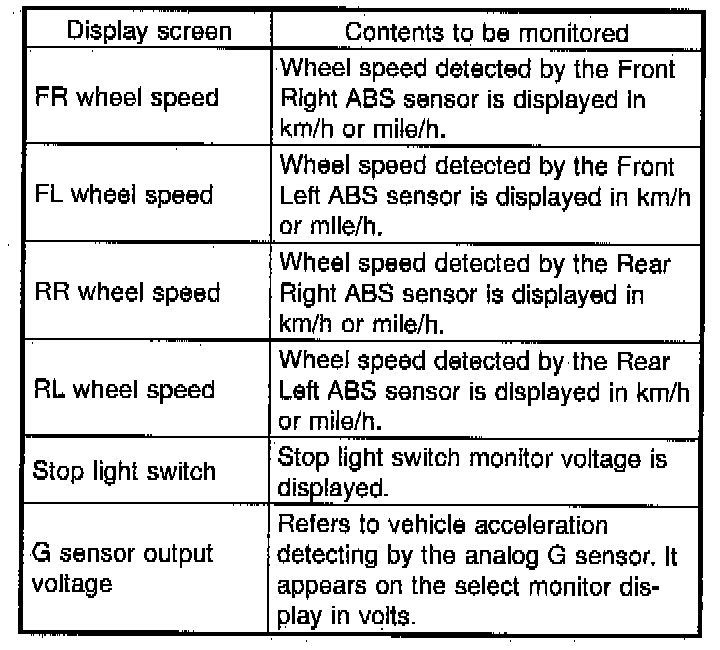

Analog Data Are Displayed:

1. Analog Data Are Displayed

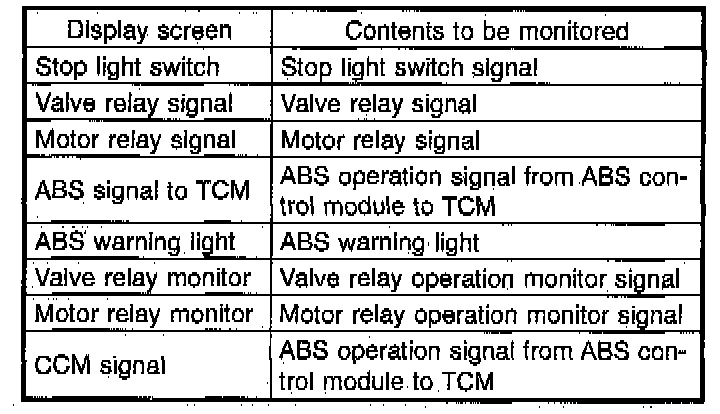

On/Off Data Are Displayed:

2. ON/OFF Data Are Displayed

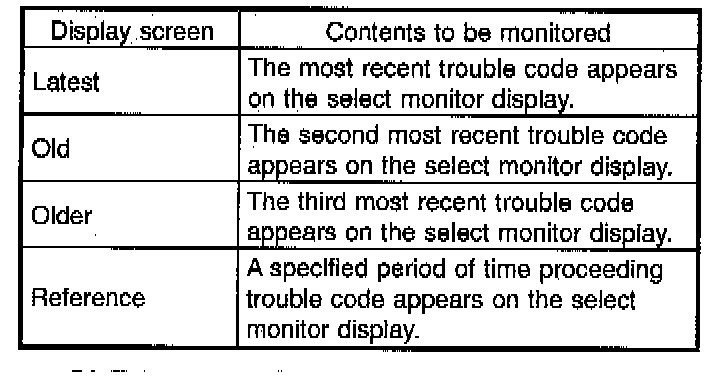

Trouble Codes Are Displayed Part 1 Of 2:

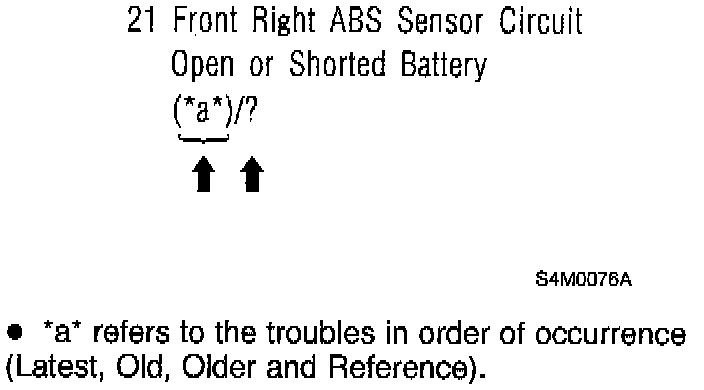

3. Trouble Codes Are Displayed

A maximum of 3 trouble codes are displayed in order of occurrence.

- If a particular trouble code is not properly stored in memory (due to a drop in ABS Control Module And Hydraulic Control Unit (ABSCM&H/U) power supply, etc.) when a problem occurs, the trouble code, followed by a question mark"?", appears on the select monitor display. This shows it may be an unreliable reading.

Trouble Codes Are Displayed Part 2 Of 2:

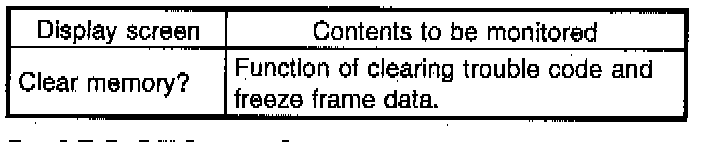

4. Clear Memory

Clear Memory:

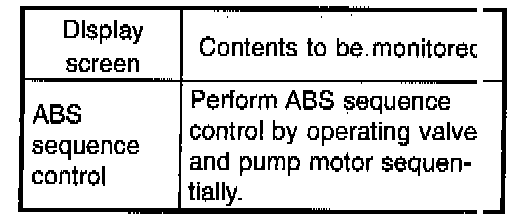

5. ABS Sequence Control

ABS Sequence Control:

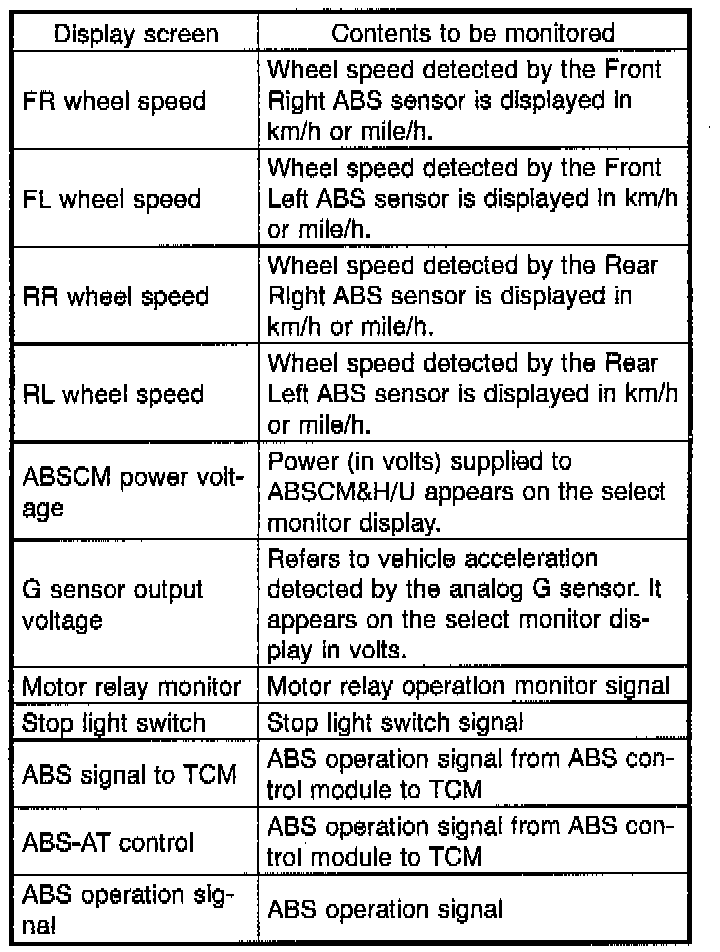

6. Freeze Frame Data

Freeze Frame Data:

NOTE:
- Data stored at the time of trouble occurrence is shown on display.
- Each time trouble occurs, the latest information is stored in the freeze frame data in memory.
- If freeze frame data is not properly stored in memory (due to a drop in ABSCM power supply, etc.), a trouble code, preceded by a question mark "?", appears on the select monitor display. This shows it may be an unreliable reading.
