ABS Warning Light Does Not GO Off












DIAGNOSIS:
ABS warning light circuit is open or shorted.

TROUBLE SYSTEM:
When starting the engine and while ABS warning light is kept ON.

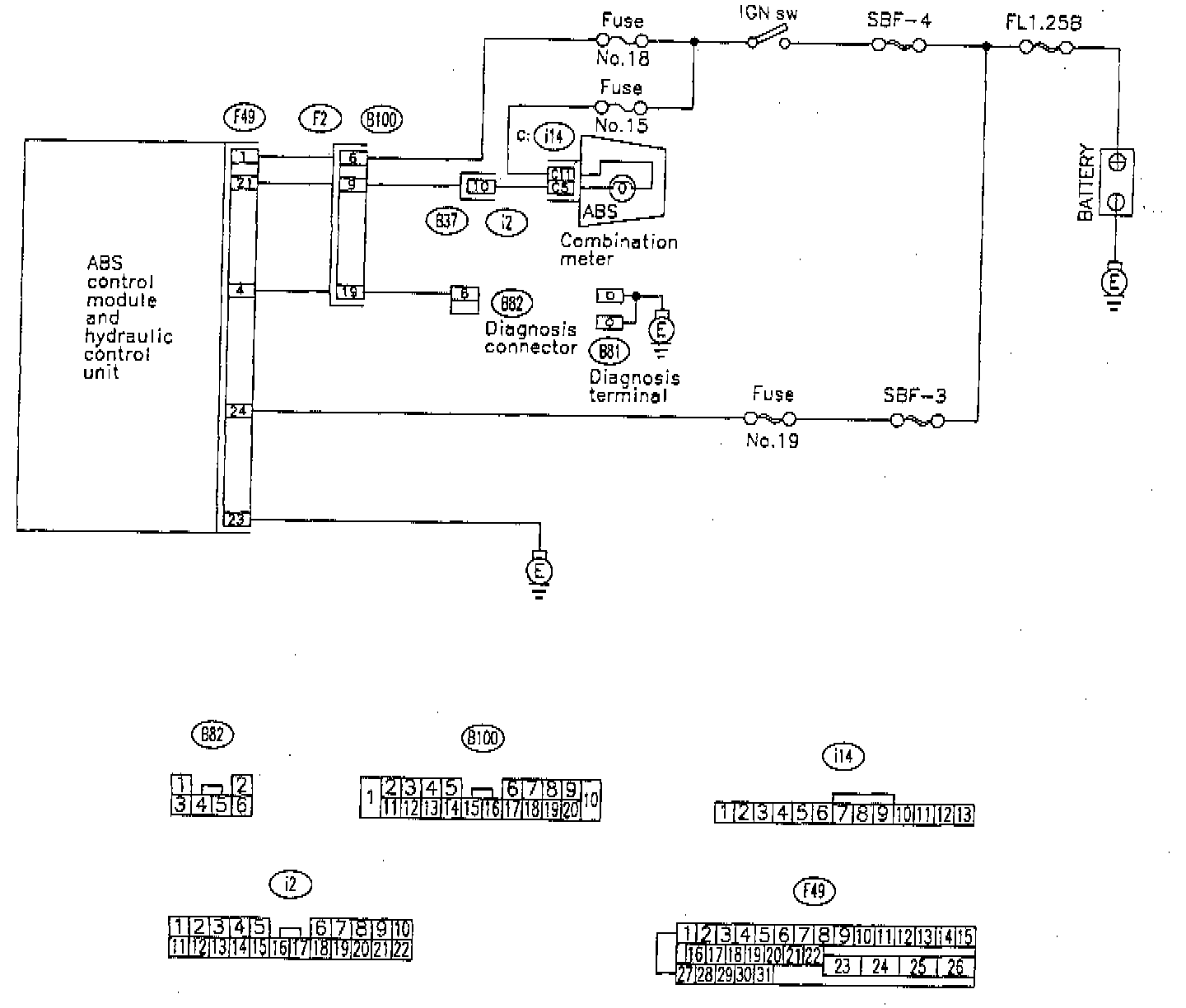

WIRING DIAGRAM:
